174

CLUTCH

GEARBOX

DRIVESHAFTS

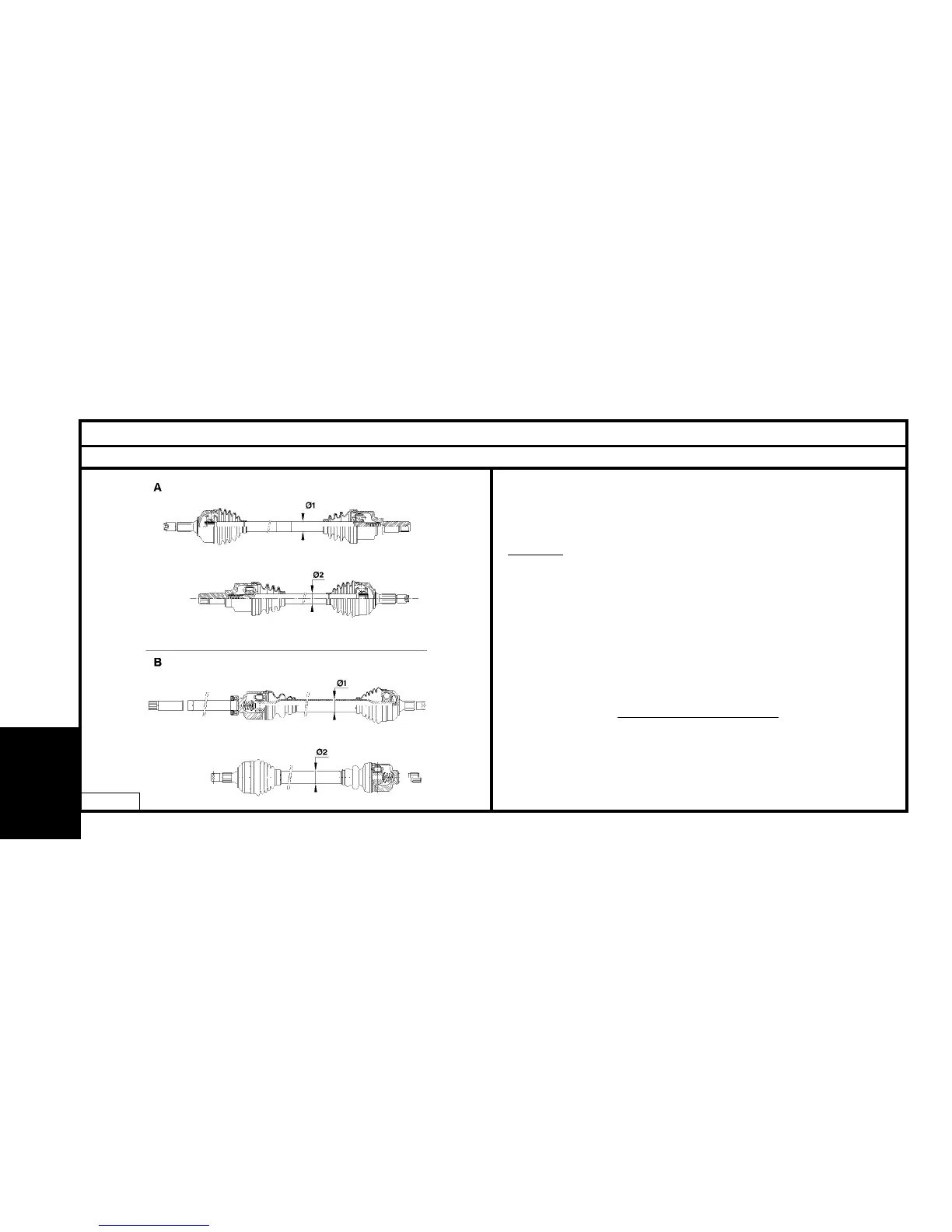

SPECIFICATION OF DRIVESHAFTS

Engines : HFX - KFV - NFU - 8HX - 8HW - 8HV - 8HY

NOTE : The wheel hubs have bearings with integral magnetic wheels

designed for the ABS system.

Features.

The driveshafts no longer have gearwheels for the ABS system.

This function is performed by the wheel bearings.

The driveshaft gaiters are secured by rings.

Should the driveshafts need repairs, the rings are replaced by clips.

ightening torques: m.daN.

Driveshaft nuts : 24.5 ± 0.5.

Driveshaft bearings : 2 ± 0.2.

B2FP05CP
