SUSPENSION

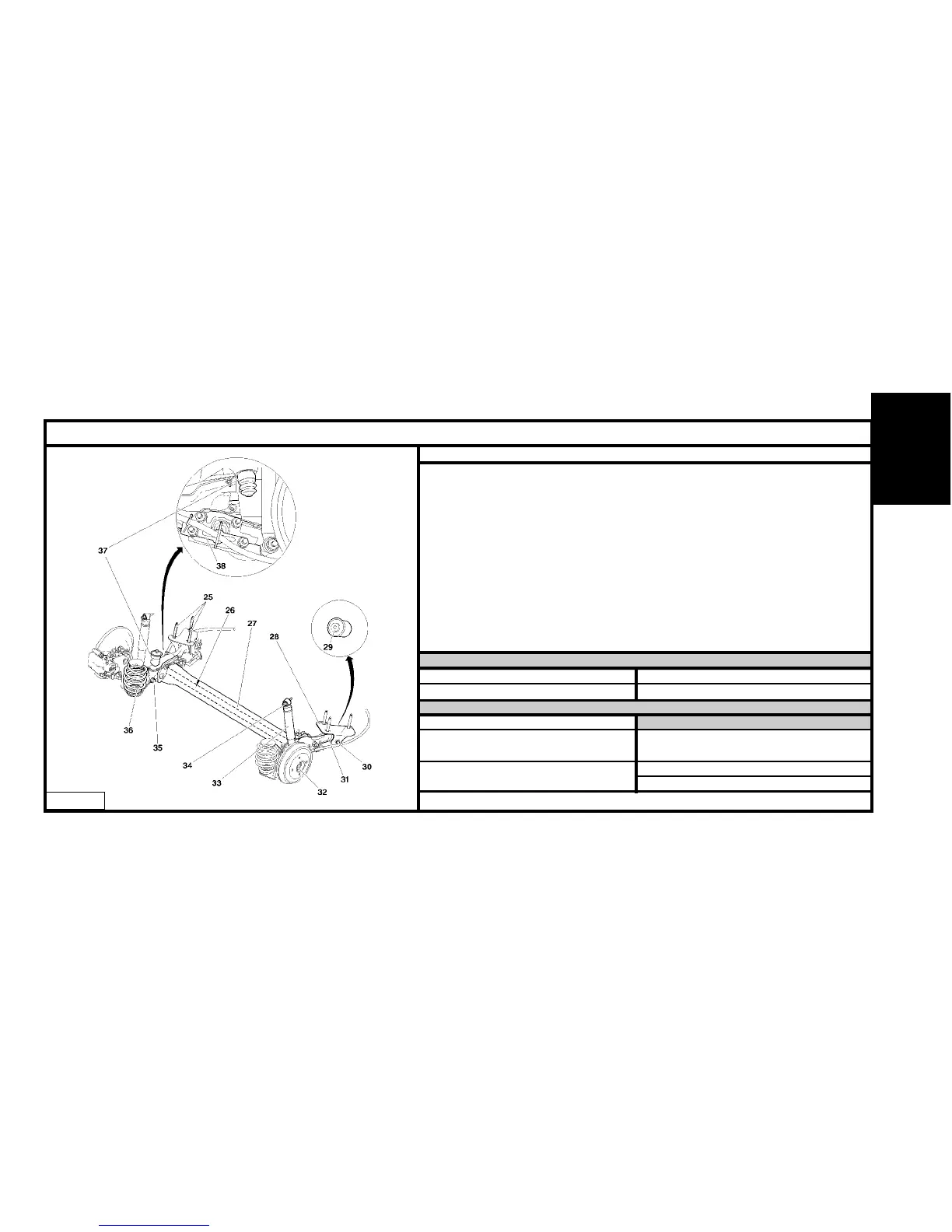

Rear axle
(25) Rear axle fixing screw : 10 ± 1
(26) Anti-roll bar :
(27) Rear axle crossmember :
(28) Rear suspension arm flexible mounting yoke :
(29) Rear suspension arm flexible mounting :
(30) Suspension arm fixing screw on yoke : 7.6 ± 0.5
(31) Rear suspension arm :
(32) Stub axle bearing nut : 20±2 (greased)
(33) Damper :
(34) Damper upper fixing screw : 4.2 ± 0.4
(35) Damper lower fixing screw : 10.6 ± 1
(36) Suspension spring :
(37) Travel stop :
(38) Secondary brake cable guide support :
Anti-roll bar
Engines Diameter (mm)
All Types 25,5 (Tubular)
Damper
Engines
1.4i (Auto.)-1.6i 16V
1.4 HDi 16V
F168K
1.1i-1.4i (Man.)-1.4 HDi
F77D
F77B (*)
(*) = For CRD vehicle
B3DP09UP
AXLES
SUSPENSION
STEERING
189
