COOLING SYSTEM SPECIFICATIONS

Engines : HFX - KFV - NFU

Manual gearbox.

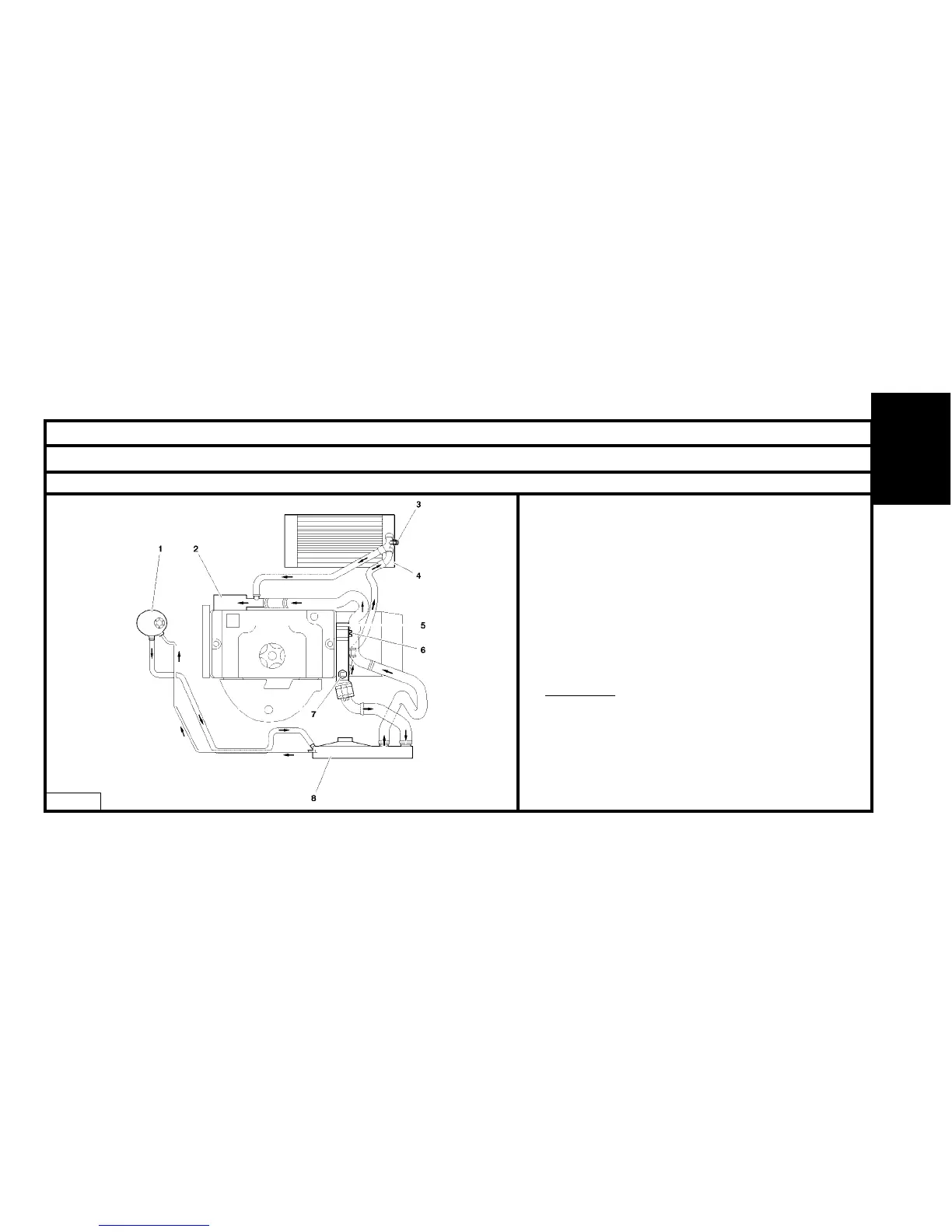

(1) Venting chamber.

(2) Water pump.

(3) Heater matrix.

(4) Bleed screw, heater matrix

(5) Coolant outlet housing

(6) Bleed screw, coolant outlet housing.

(7) Calorstat.

(8) Cooling radiator.

Thermostat.

Colour of connector : Blue.

Colour of seal : Yellow.

Tightening torque : 1.7 ± 0.2 m.daN.

B1GP09HP
