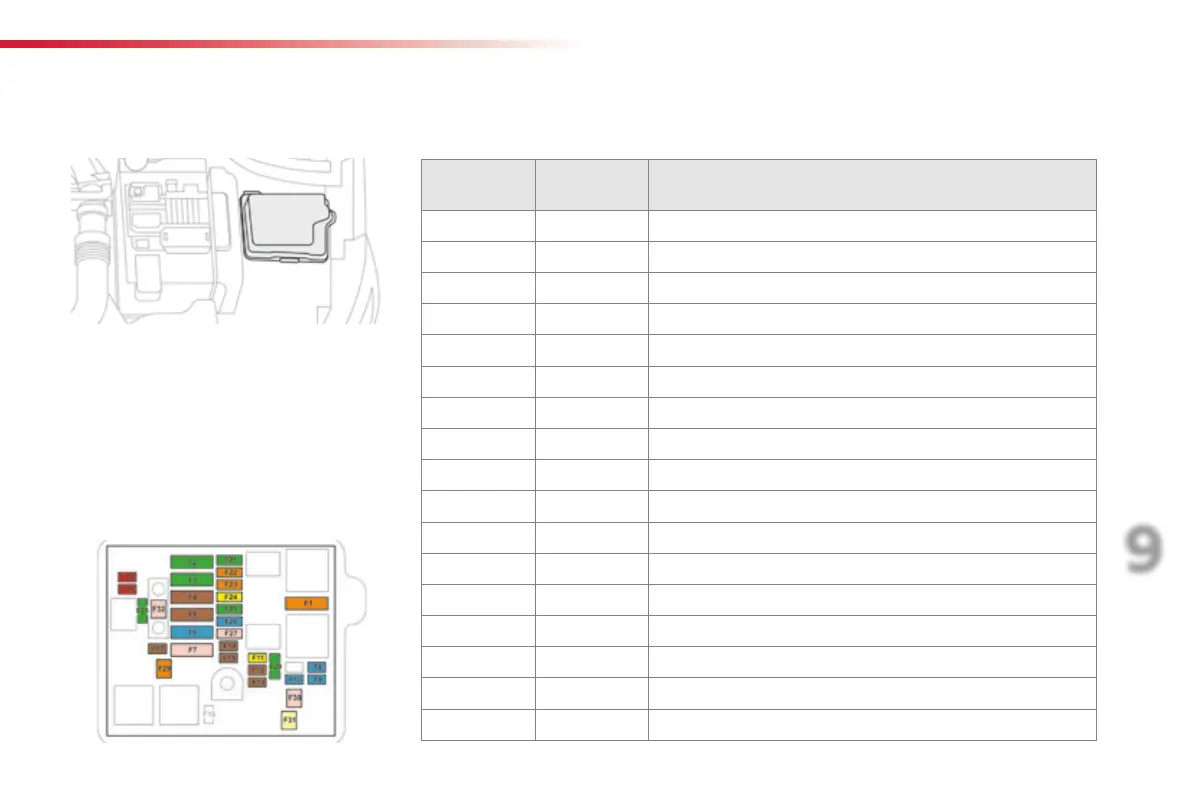

Engine compartment fuses
Access to the fuses
F Unclip the cover.
F Change the fuse (see corresponding
paragraph).
F When you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse
N°
Rating
(A)
Functions
F1 40 Air conditioning.
F2 30 / 40 Stop & Start.
F3 30 Passenger compartment fusebox.
F4 70 Passenger compartment fusebox.
F5 70 Built-in Systems Interface (BSI).
F6 60 Cooling fan assembly.
F7 80 Built-in Systems Interface (BSI).
F8 15 Engine management, petrol pump.
F9 15 Engine management.
F10 15 Engine management.
F11 20 Engine management.
F12 5 Cooling fan assembly.
F13 5 Built-in Systems Interface (BSI).
F14 5 Battery charge unit (non Stop & Start engine).
F15 5 Stop & Start.
F17 5 Built-in Systems Interface (BSI).
F18 10 Right hand main beam headlamp.
The fusebox is placed in the engine
compartment near the battery.
