204
Practical information
E3_en_Chap09_info_pratiques_ed01-2014
Do not apply excessive force on the
tab as locking will not be possible if the
clamp is not positioned correctly; start
the procedure again.

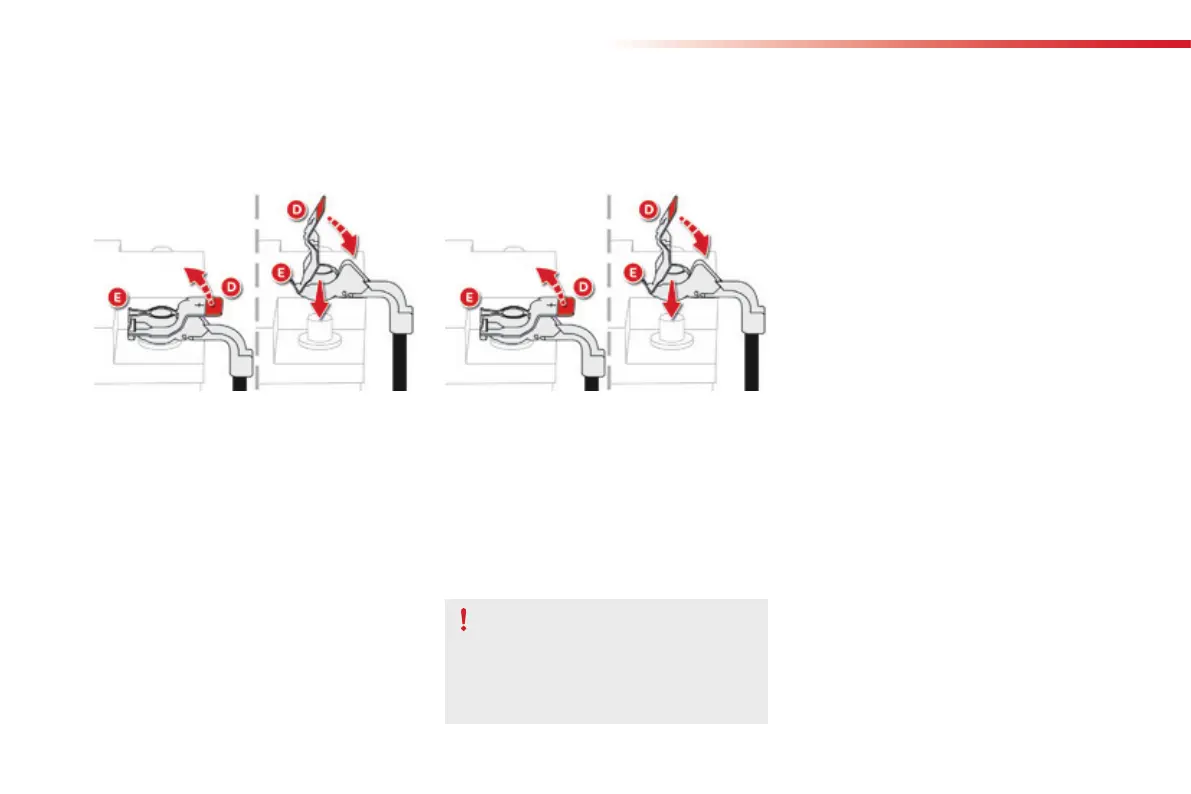

Disconnecting the (+) cable
F Raise the locking tab D fully to release the
cable terminal clamp E.
Reconnecting the (+) cable
F Position the open clamp E of the cable on
the positive post (+) of the battery.
F Press vertically on the clamp E to position
it correctly on the battery.
F Lock the clamp by spreading the
positioning lug and then lowering the tab D.
