CKD EVD Series User Manual

EVD-1 -0 AN- - ,EVD-1 -1 AN- ,EVD-1 -2 AN-
EVD-3 -0 AN- - ,EVD-3 -1 AN- ,EVD-3 -2 AN-
(Analog input, analog output + error output type, NPN output)
EVD-1 -0 AP- - ,EVD-1 -1 AP- ,EVD-1 -2 AP-
EVD-3 -0 AP- - ,EVD-3 -1 AP- ,EVD-3 -2 AP-
(Analog input, analog output + error output type, PNP output)
EVD-1 -0 SN- - ,EVD-1 -1 SN- ,EVD-1 -2 SN-
EVD-3 -0 SN- - ,EVD-3 -1 SN- ,EVD-3 -2 SN-
(Analog input, switch output + error output type, NPN output)
EVD-1 -0 SP- - ,EVD-1 -1 SP- ,EVD-1 -2 SP-
EVD-3 -0 SP- - ,EVD-3 -1 SP- ,EVD-3 -2 SP-
(Analog input, switch output + error output type, PNP output)
Wiring methods
Connector pin layout (product body side)
[Analog input type]
Analog input does not have or pins.
1 2 3 4 5
11 12
12 98764
13 14 15
6 7 8 9 10
Pin 5 (power supply +)
Pin 11 (analog input)
Pin 1 (preset bit 1)
Pin 2 (preset bit 2)
Pin 3 (preset bit 3)
Pin 10 (common)
Pin 13 (monitor output)
Pin 14 (error output)
Pin 15 (power supply -)
max. 50mA
Signal generator
Load Load
Output short-circuit
protection circuit
+
-
Main circuit
Signal generator
Pin 5 (power supply +)
Pin 13 (monitor output)
Pin 11 (analog input)
Pin 14 (error output)
Pin 1 (preset bit 1)
Pin 2 (preset bit 2)
Pin 3 (preset bit 3)
Pin 10 (common)
Pin 15 (power supply -)
max. 50mA
Load
Load
+
-
Output short-circuit
protection circuit
Main circuit
Signal generator
Pin 5 (power supply +)
Pin 11 (analog input)
Pin 1 (preset bit 1)
Pin 2 (preset bit 2)
Pin 3 (preset bit 3)
Pin 10 (common)
Pin 13 (switch output)
Pin 14 (error output)
Pin 15 (power supply -)
max. 50mA
max. 50mA
Load
Load
Output short-circuit protection circuit
+
-
Main circuit
Signal generator
Pin 5 (power supply +)
Pin 13 (switch output)
Pin 11 (analog input)
Pin 14 (error output)
Pin 1 (pre-set bit 1)
Pin 2 (preset bit 2)
Pin 3 (preset bit 3)
Pin 10 (common)
Pin 15 (power supply -)
Load
Load
+
-
max. 50mA
max. 50mA
Output short-circuit protection circuit
Main circuit
11
EVD Series
Technical data

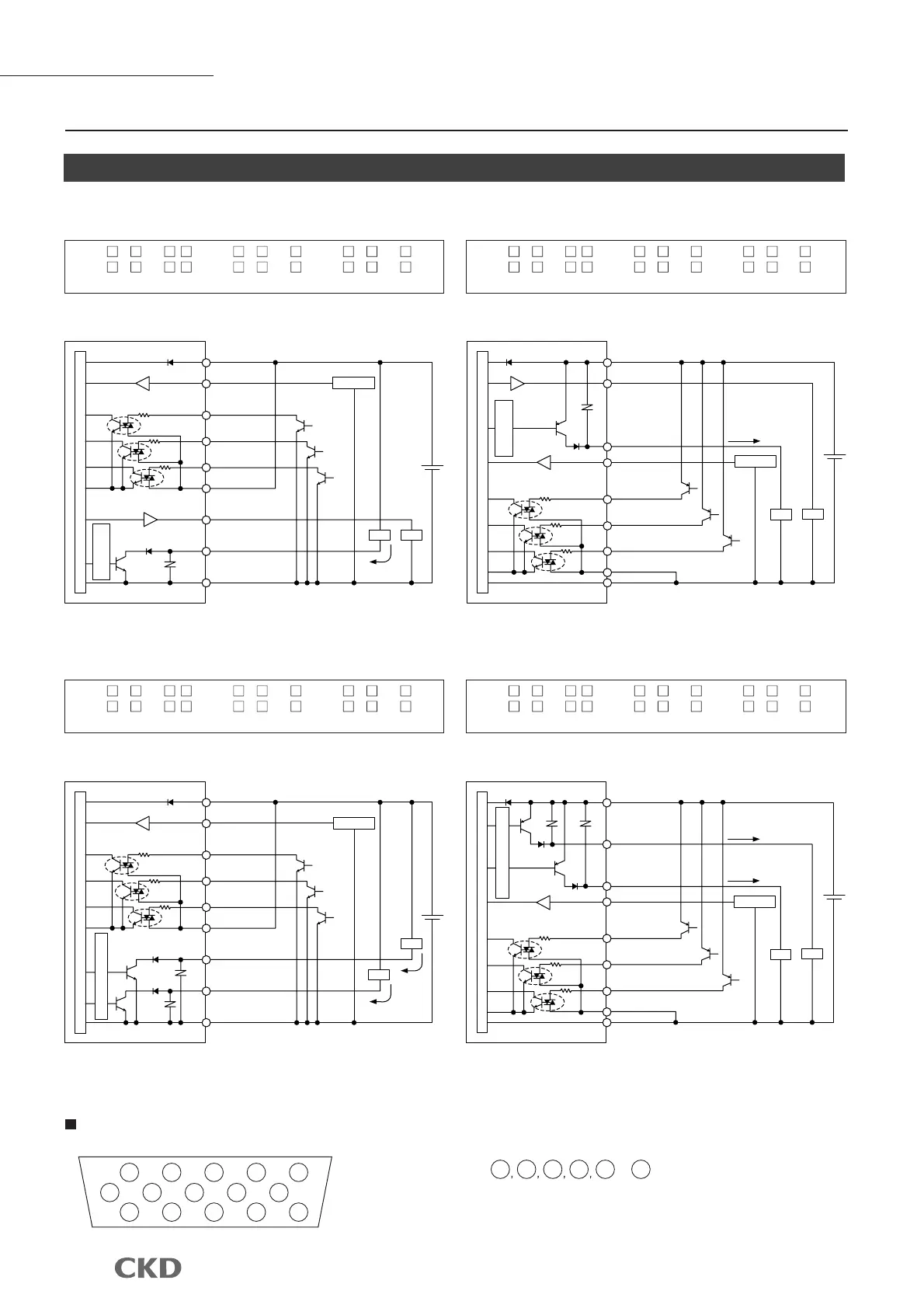

Example of internal circuit and load connection for analog input
