EVD-1 -P AN- -
EVD-3 -P AN- -
(Parallel input, analog output + error output type, NPN output)
EVD-1 -P AP- -
EVD-3 -P AP- -
(Parallel input, analog output + error output type, PNP output)
EVD-1 -P SN- -
EVD-3 -P SN- -
(Parallel input, switch output + error output type, NPN output)
EVD-1 -P SP- -
EVD-3 -P SP- -
(Parallel input, switch output + error output type, PNP output)
Connector pin layout (product body side)
[Parallel input type]
1 2 3 4 5
11 12 13 14 15
6 7 8 9 10
Main circuit
Pin 5 (power supply +)
Pin 10 (common)
Pin 12 (MSB bit 10)
Pin 11 (bit 9)
Pin 9 (bit 8)
Pin 8 (bit 7)
Pin 7 (bit 6)
Pin 6 (bit 5)
Pin 4 (bit 4)
Pin 3 (bit 3)
Pin 2 (bit 2)
Pin 1 (LSB bit 1)
Pin 13 (monitor output)
Pin 14 (error output)
Pin 15 (power supply -)
+
-
max. 50mA
Load Load
Main circuit
Pin 5 (power supply +)
Pin 10 (common)
Pin 12 (MSB bit 10)
Pin 11 (bit 9)
Pin 9 (bit 8)
Pin 8 (bit 7)
Pin 7 (bit 6)
Pin 6 (bit 5)
Pin 4 (bit 4)
Pin 3 (bit 3)
Pin 2 (bit 2)
Pin 1 (LSB bit 1)
Pin 13 (switch output)
Pin 14 (error output)
Pin 15 (power supply -)
+
-
max. 50mA
max. 50mA
Load
Load
Main circuit
Pin 5 (power supply +)
Pin 10 (common)
Pin 12 (MSB bit 10)
Pin 11 (bit 9)
Pin 9 (bit 8)
Pin 8 (bit 7)
Pin 7 (bit 6)
Pin 6 (bit 5)
Pin 4 (bit 4)
Pin 3 (bit 3)
Pin 2 (bit 2)
Pin 1 (LSB bit 1)
Pin 14 (error output)
Pin 13 (monitor output)
Pin 15 (power supply -)
+
-
Load
Load
max. 50mA
Main circuit
Pin 5 (power supply +)
Pin 10 (common)
Pin 12 (MSB bit 10)
Pin 11 (bit 9)
Pin 9 (bit 8)
Pin 8 (bit 7)
Pin 7 (bit 6)
Pin 6 (bit 5)
Pin 4 (bit 4)
Pin 3 (bit 3)
Pin 2 (bit 2)
Pin 1 (LSB bit 1)
Pin 14 (error output)
Pin 13 (switch output)
Pin 15 (power supply -)
+
-
Load
Load
max. 50mA
max. 50mA
Output short-circuit
protection circuit
Output short-circuit
protection circuit
Output short-circuit protection circuit
Output short-circuit protection circuit
12
EVD Series
Technical data

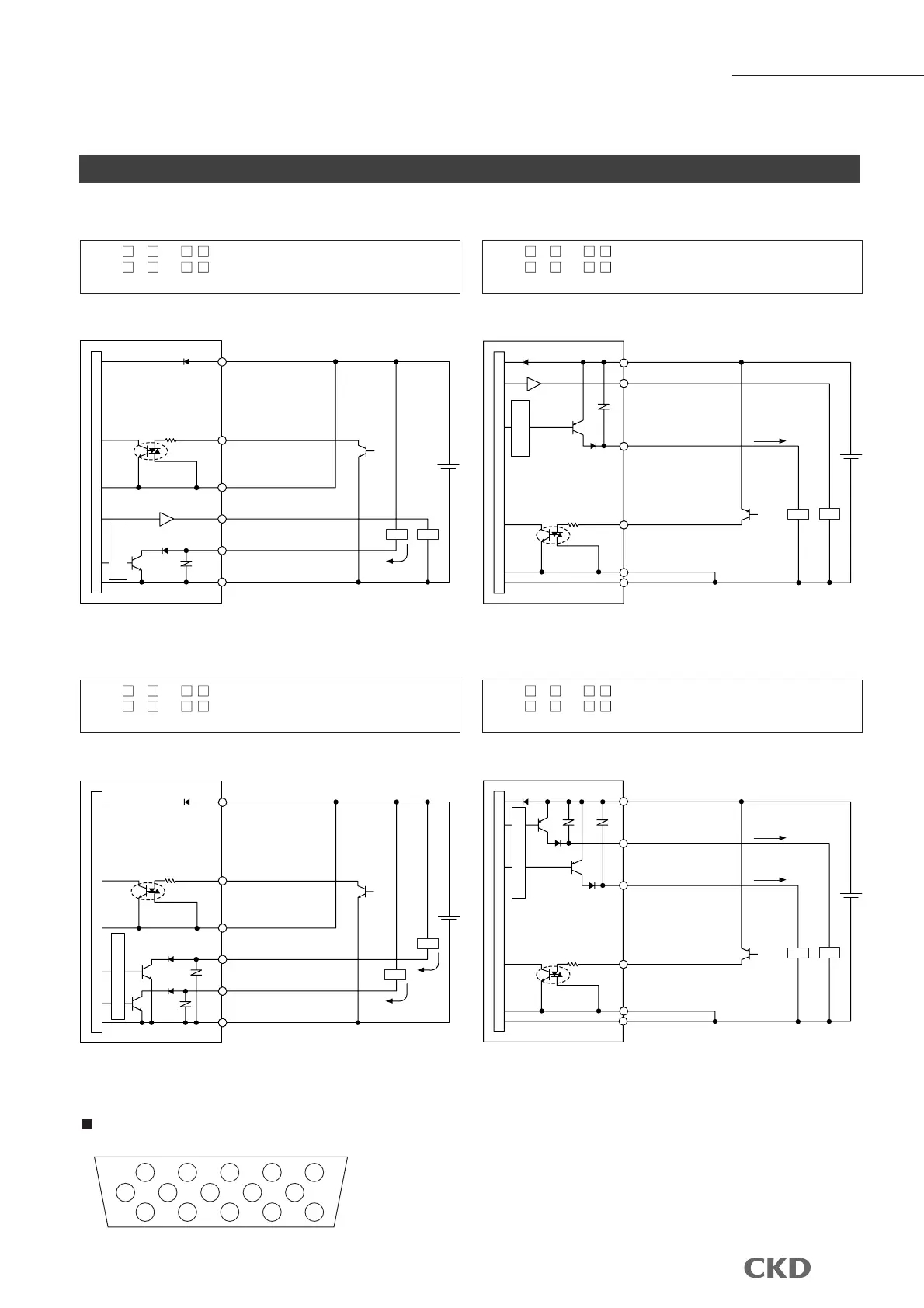

Example of internal circuit and load connection for parallel input
