clage CEX 9 - Overview

2
Instructions for user - 9120-25530 - CEX9 - 801039 - November 2012 v1.00
1. Overview
When ordering spare parts, please always specify the appliance model and serial number.

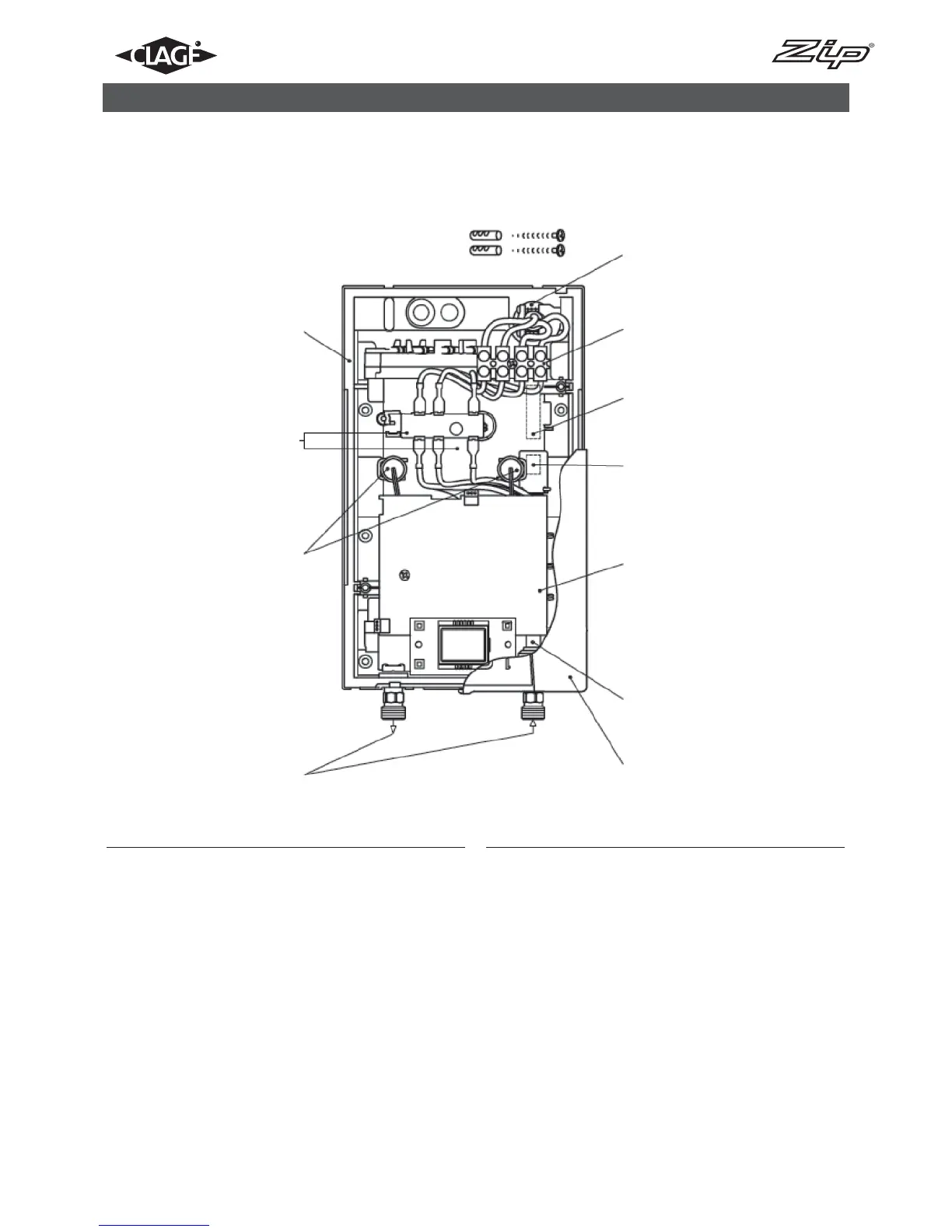

Pos. Part.-No. Description
1 Grommet
2 Connecting terminal
3 801110 Flow sensor
4 801101 Non-return valve
5 801114
Electronic CEX 9
6
Inlet pipe
7 801115 CEX cover
Pos. Part.-No. Description
8 Hot and cold water connection 1/2“
9 801116 Temperature sensor set
10 801117 Heating element with STCO (STDB)
11 Bottom part
12 Screws and dowels
Parts in Bold Type are available as Spare Parts.
Other parts are available on request.
