17
CLAGE

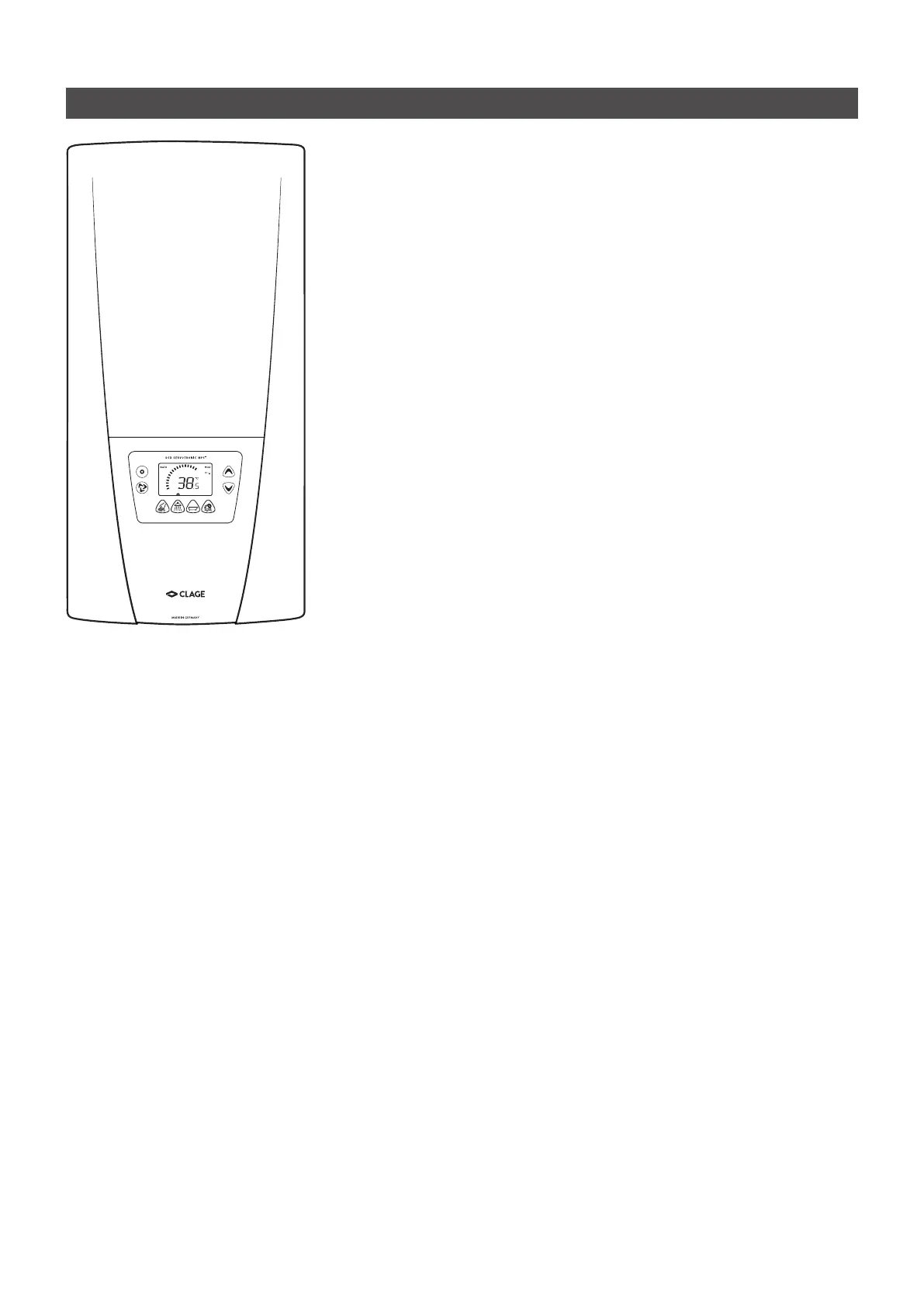

The instantaneous water heater DSX is a microprocessor-controlled, pressure-resistant
water heater for a decentralised water supply to one or more tap connections.
Its electronic control regulates the power consumption depending on the selected out-
let temperature, the respective inlet temperature and the flow rate, thus reaching the
set temperature exactly to the degree and keeping it constant in case of pressure fluc-
tuations. The required outlet temperature can be entered on a keypad within a range
between 20 °C and 60 °C and can be read off the digital display.
The maximum inlet temperature can be up to 70 °C so that operation in connection
with solar heating systems is possible.
It is possible to use the instantaneous water heater in combination with an external
load shedding relay for electronically controlled instantaneous water heaters (refer to
installing instructions).
2. Description of the appliance
