Clarion APA2103 User Manual

Clarion APAZI03 ·' _ 'fti'.~~·~B

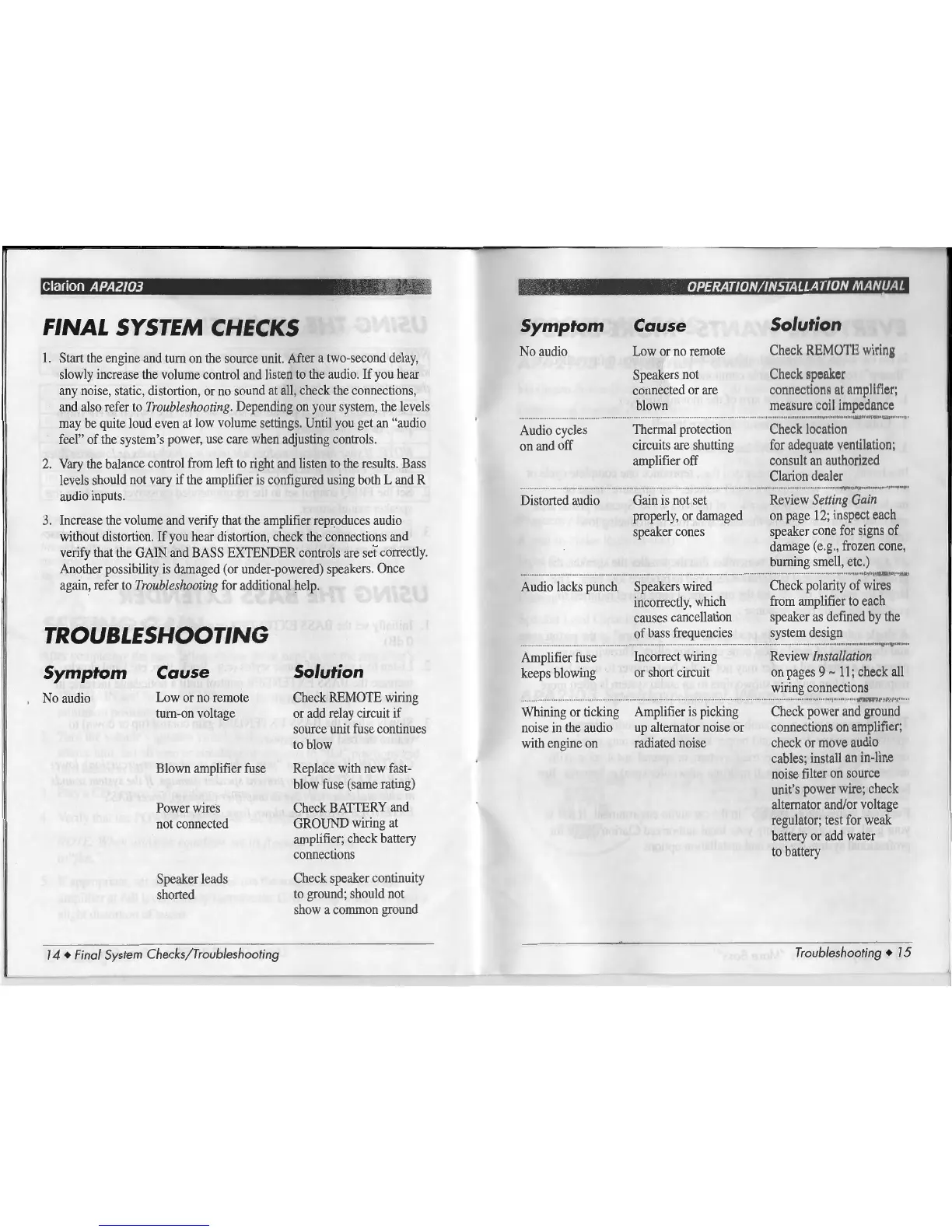

FINAL SYSTEM CHECKS
1. Start the engine and turn on the source unit. After a two-second delay,
slowly increase the volume control and li ste n to the audio. If you hear
any noise, static, distortion, or no so und at all, check the connections,
and also refer to Troubl eshooting. Depending on your syste m, the levels
may be quite loud even at low volume ett in g . Until you get an "audio
feel" of the system's power, use care when adj u sting controls.
2. Vary the balance control from left to right and listen to the results. Bass
levels should not vary if the amp lifi er i configured using both Land R
audio inputs.
3. Increase the vo lume and verify that th e amplifier reproduces audio
without distortion. If you hear distortion, check the connections and
verify that the GAIN and BASS EXTENDER controls are set correctly .
Another possibility is damaged (or under-powered) speakers. Once
again, refer to Troubleshooting for additional help.
TROUBLESHOOTING
Symptom
No audio
Cause
Low or no remote
tum-on voltage
Blown amplifier fuse
Power wires
not connected
Speaker leads
shorted
7 4 • Final System Checks/ Troubleshooting
Solution
Check REMOTE wiring
or add relay circuit if
source unit fuse continues
to blow
Replace with new fast-
blow fuse (same rating)
Check BATTERY and
GROUND wiring at
amplifier; check battery
connections
Check speaker continuity
to ground; should not
show a common ground
{(i\, '::.~.- :. · OPERATION/INSTALLATION M ANUAL
Symptom
No audio
Audio cycles
on and off
Distorted audio
Cause
Low or no remote
Speakers not
connected or are
blown
Thermal protection
circuits are shutting
amplifier off
Gain is not set
properly, or damaged
speaker cones
Audio lacks punch Speakers wired
incorrectly, which
causes cancellation
of bass frequencies
Amplifier fuse
keeps blowing
Whining or ticking
noise in the audio
with engine on
Incorrect wiring
or s hort circuit
Amplifier is picking
up alternator noise or
radiated noise
Solution
h k REMOTli wil'i11
1
h' ·k sp •uk ·r
con n· ·tiom: ul umplil'i ·1 ·;
measur' ·oi l i111p •dun·'
h ck lo ·alion
for adequat v ntilation;
con ult an authoriz 'd
Clarion deal r
Review Setting ain
on page 12; inspect each
speaker cone for si gns of
damage (e.g., frozen co n e,
burning sme ll , etc.)
Check polarity of wire
from amplifier to each
speaker as defined by th
system design
Review Installation
on pages 9 - 11 ; ch ck all
wiring connections
Check power and gro und
connections on amp lifi er;
ch eck or mov audi
cables; in sta ll an in-line
noi e filter n s urc
unit 's p w r wir ; ch eck
a lt ernat r and/or voltage
r egu l ato r; test for weak
b attery or add water
to b attery
Troubleshooting • 7 5

Clarion APA2103 Specifications

Power Output

maximum power output	230 watts
continuous average power output at 4 ohms	50 watts x 2
continuous average power output at 2 ohms	75 watts x 2

Audio Specifications

frequency response	10 Hz to 50 kHz
signal-to-noise ratio	100 dB or better
input sensitivity (low-level RCA)	200 mV to 5 V

Physical Specifications

dimensions (W x H x L)	230 mm x 47.5 mm x 2.0 mm
current use at rated output	14 amps
speaker load capacity	4 ohms
