Clarion APX2180 User Manual

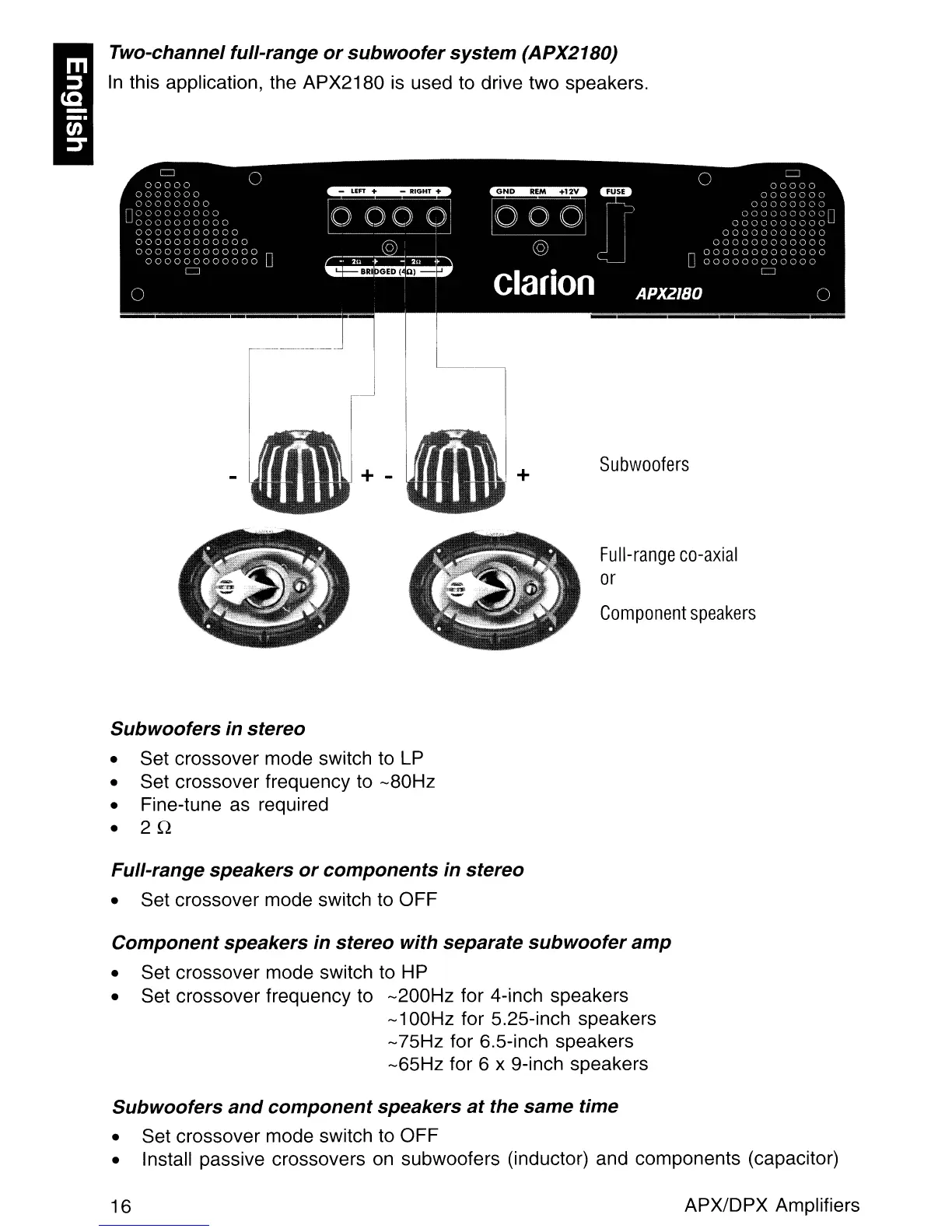

Two-channel full-range or subwoofer system (APX2180j
In this application, the APX2180 is used to drive two speakers.
Subwoofers
+
+ -
Full-range co-axial
or
Component speakers
Sub woofers in stereo
• Set crossover mode switch to LP
• Set crossover frequency to -80Hz
• Fine-tune as required
• 2 n
Full-range speakers or components in stereo
• Set crossover mode switch to OFF
Component speakers in stereo with separate subwoofer amp
• Set crossover mode switch to HP
• Set crossover frequency to -200Hz for 4-inch speakers
-100Hz for 5.25-inch speakers
-75Hz for 6.5-inch speakers
-65Hz for 6 x 9-inch speakers
Sub woofers and component speakers at the same time
• Set crossover mode switch to OFF
• Install passive crossovers
on subwoofers (inductor) and components (capacitor)
16
APX/OPX Amplifiers
Two-channel full-range or subwoofer system (APX2180j
In this application, the APX2180 is used to drive two speakers.
Subwoofers
+
+ -
Full-range co-axial
or
Component speakers
Sub woofers in stereo
• Set crossover mode switch to LP
• Set crossover frequency to -80Hz
• Fine-tune as required
• 2 n
Full-range speakers or components in stereo
• Set crossover mode switch to OFF
Component speakers in stereo with separate subwoofer amp
• Set crossover mode switch to HP
• Set crossover frequency to -200Hz for 4-inch speakers
-100Hz for 5.25-inch speakers
-75Hz for 6.5-inch speakers
-65Hz for 6 x 9-inch speakers
Sub woofers and component speakers at the same time
• Set crossover mode switch to OFF
• Install passive crossovers
on subwoofers (inductor) and components (capacitor)
16
APX/OPX Amplifiers

Clarion APX2180 Specifications

General

Brand	Clarion
Model	APX2180
Category	Car Amplifier
Language	English
