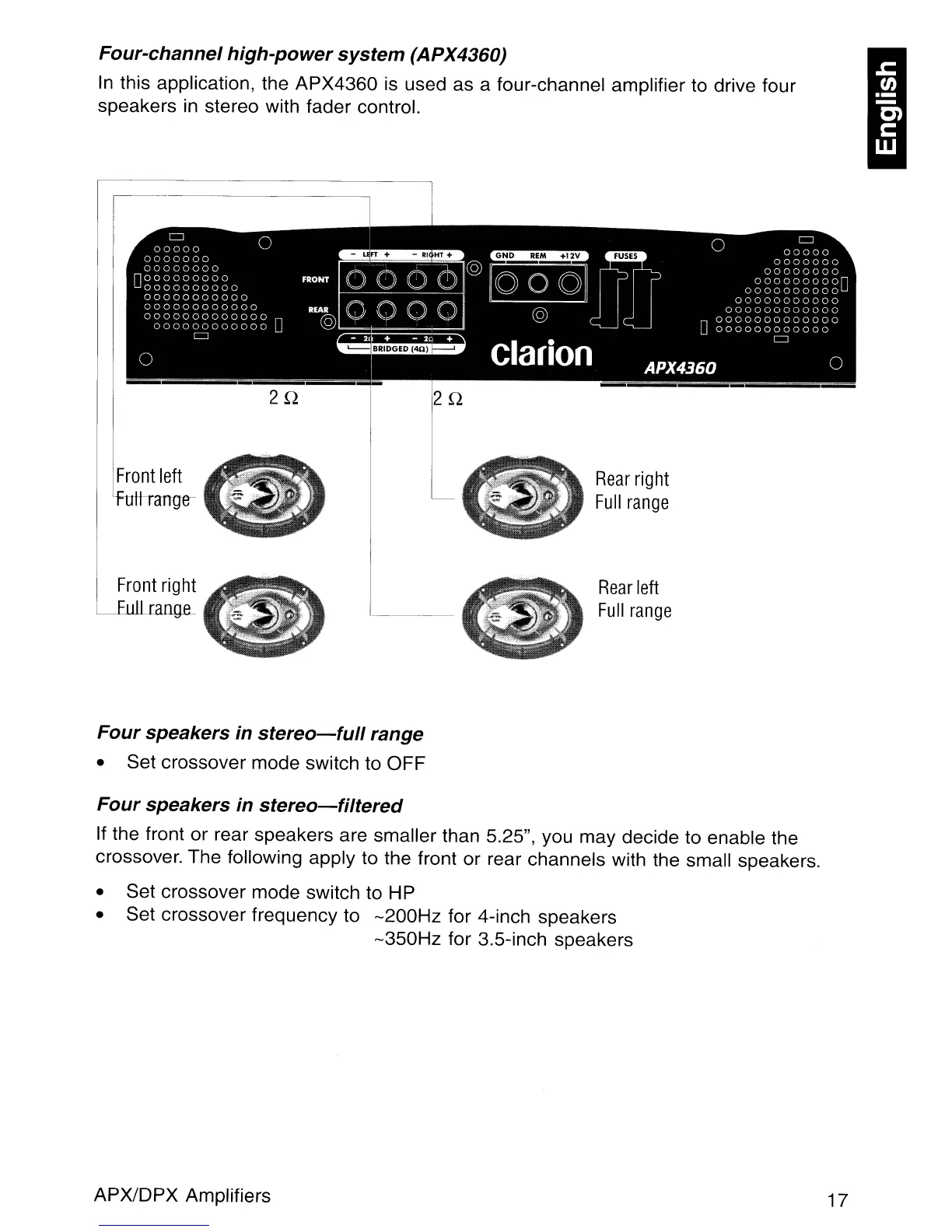

Clarion APX2180 User Manual

Four-channel high-power system (APX4360j
In this application, the APX4360 is used as a four-channel amplifier to drive four
speakers
in stereo with fader control.
2Q 2Q
Front left
ftrltrange-
Front right
LEulLr:angB-
1-
Rear right
Full range
Rear left
Full range
Four speakers in stereo-full range
• Set crossover mode switch to OFF
Four speakers in stereo-filtered
If the front or rear speakers are smaller than 5.25", you may decide to enable the
crossover. The following apply to the front or rear channels with the small speakers.
• Set crossover mode switch to HP
• Set crossover frequency to
-200Hz for 4-inch speakers
-350Hz for 3.5-inch speakers
APX/DPX Amplifiers
17
Four-channel high-power system (APX4360j
In this application, the APX4360 is used as a four-channel amplifier to drive four
speakers
in stereo with fader control.
2Q 2Q
Front left
ftrltrange-
Front right
LEulLr:angB-
1-
Rear right
Full range
Rear left
Full range
Four speakers in stereo-full range
• Set crossover mode switch to OFF
Four speakers in stereo-filtered
If the front or rear speakers are smaller than 5.25", you may decide to enable the
crossover. The following apply to the front or rear channels with the small speakers.
• Set crossover mode switch to HP
• Set crossover frequency to
-200Hz for 4-inch speakers
-350Hz for 3.5-inch speakers
APX/DPX Amplifiers
17
