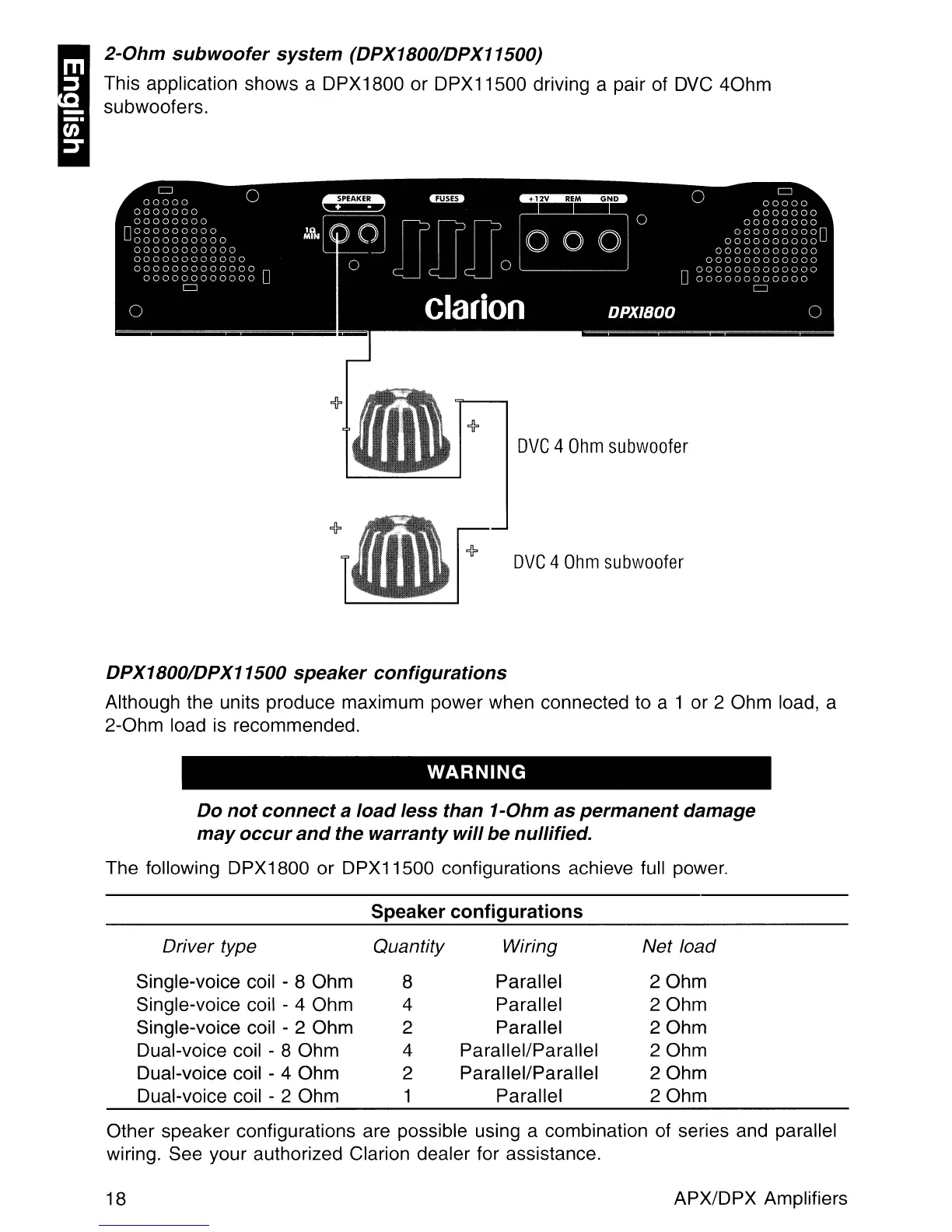

2-0hm subwoofer system (DPX18001DPX11500j
This application shows a DPX1800 or DPX11500 driving a pair of DVC 40hm
subwoofers.
DVC 4 Ohm subwoofer
DVC 4 Ohm subwoofer
DPX1800lDPX11500 speaker configurations
Although the units produce maximum power when connected to a 1 or 2 Ohm load, a
2-0hm load is recommended.
WARNING
Do not connect a load less than 1-0hm as permanent damage
may occur and the warranty will be nullified.
The following DPX1800 or DPX11500 configurations achieve full power.
Speaker configurations
Driver type Quantity Wiring Net load
Single-voice coil - 8 Ohm
8
Parallel 20hm
Single-voice coil - 4 Ohm 4 Parallel 20hm
Single-voice coil - 2 Ohm 2 Parallel 20hm
Dual-voice coil - 8 Ohm
4
Parallel/Parallel
20hm
Dual-voice coil - 4 Ohm 2 Parallel/Parallel 2 Ohm
Dual-voice coil - 2 Ohm 1
Parallel 20hm
Other speaker configurations are possible using a combination of series and parallel
wiring. See your authorized Clarion dealer for assistance.
18
APX/DPX Amplifiers
2-0hm subwoofer system (DPX18001DPX11500j
This application shows a DPX1800 or DPX11500 driving a pair of DVC 40hm
subwoofers.
DVC 4 Ohm subwoofer
DVC 4 Ohm subwoofer
DPX1800lDPX11500 speaker configurations
Although the units produce maximum power when connected to a 1 or 2 Ohm load, a
2-0hm load is recommended.
WARNING
Do not connect a load less than 1-0hm as permanent damage
may occur and the warranty will be nullified.
The following DPX1800 or DPX11500 configurations achieve full power.
Speaker configurations
Driver type Quantity Wiring Net load
Single-voice coil - 8 Ohm
8
Parallel 20hm
Single-voice coil - 4 Ohm 4 Parallel 20hm
Single-voice coil - 2 Ohm 2 Parallel 20hm
Dual-voice coil - 8 Ohm
4
Parallel/Parallel
20hm
Dual-voice coil - 4 Ohm 2 Parallel/Parallel 2 Ohm
Dual-voice coil - 2 Ohm 1
Parallel 20hm
Other speaker configurations are possible using a combination of series and parallel
wiring. See your authorized Clarion dealer for assistance.
18
APX/DPX Amplifiers
