Clarion CMS20 User Manual

English
Owner’s Manual
CMS20
20

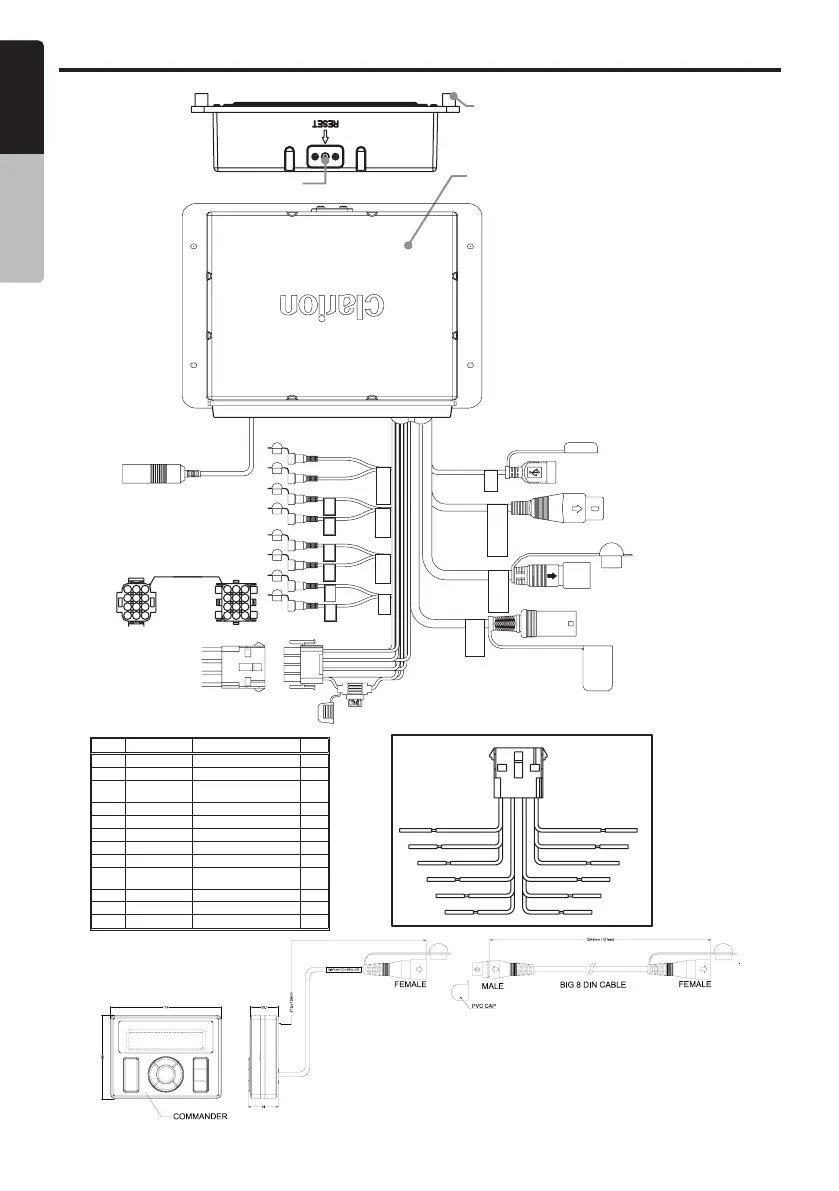

5. WIRE CONNECTION
L-CH L-CHL-CH L-CHR-CH R-CHR-CH R-CH
RUBBER STOPPER
BLACK BOX
RESET BUTTON
BLACK
ANTENNA
WHITE
L-CH
LINE OUT
LEFT
LINE OUT
LEFT
LINE OUT
RIGHT
LINE OUT
RIGHT
AUX IN
LEFT
AUX IN
RIGHT
L-CHL-CH L-CHR-CH
SUBWOOFER
USB
DISPLAY
CONTROLLER
SIRIUS XM
WIRED
REMOTE
REAR
CHANNEL
FRONT
CHANNEL
AUX
R-CHR-CH R-CH
WHITE
BLACK
PURPLE
BLACK
BLACK
BLACK
BLACK
GREY
RED
WHITE
12 PIN MOLEX Connector
12 PIN MOLEX Connector
Wire Code
BLACK RED
GREEN/BLACK
GREEN
ORANGE/WHITE
WHITE/BLACK
WHITE
3048mm (10 feet)
Female
DISPLAY CONTROLLER
DISPLAY
CONTROLLER
Female
Male Big 8Din Cable
PURPLE/BLACK
PURPLE
BLUE/WHITE
GREY/BLACK
GREY
ORIENTATION
SECTION A-A
SECTION B-B
RED
FUSE
15A
WHITE
RED
RED
RED
RED
PIN NO. WIRE COLOR WIRE DEFINTION AWG
1
GREEN SPEAKER REAR LEFT (+) 20
2
GREEN/BLACK SPEAKER REAR LEFT (-) 20
3
RED ACCESSORY/IGNITION
SWITCHED (+12V)
16
4
WHITE SPEAKER FRONT LEFT (+) 20
5
WHITE/BLACK SPEAKER FRONT LEFT (-) 20
6
ORANGE/WHITE ILLUMINATION 20
7
GREY SPEAKER FRONT RIGHT (+) 20
8
GREY/BLACK SPEAKER FRONT RIGHT (-) 20
9
BLUE/WHITE AMPLIFIER REMOTE
TURN ON (+)
20
10
PURPLE SPEAKER REAR RIGHT (+) 20
11
PURPLE/BLACK SPEAKER REAR RIGHT (-) 20
12
BLACK GROUND (-) 16
