Clarion CZ104E User Manual

English
14
CZ104E

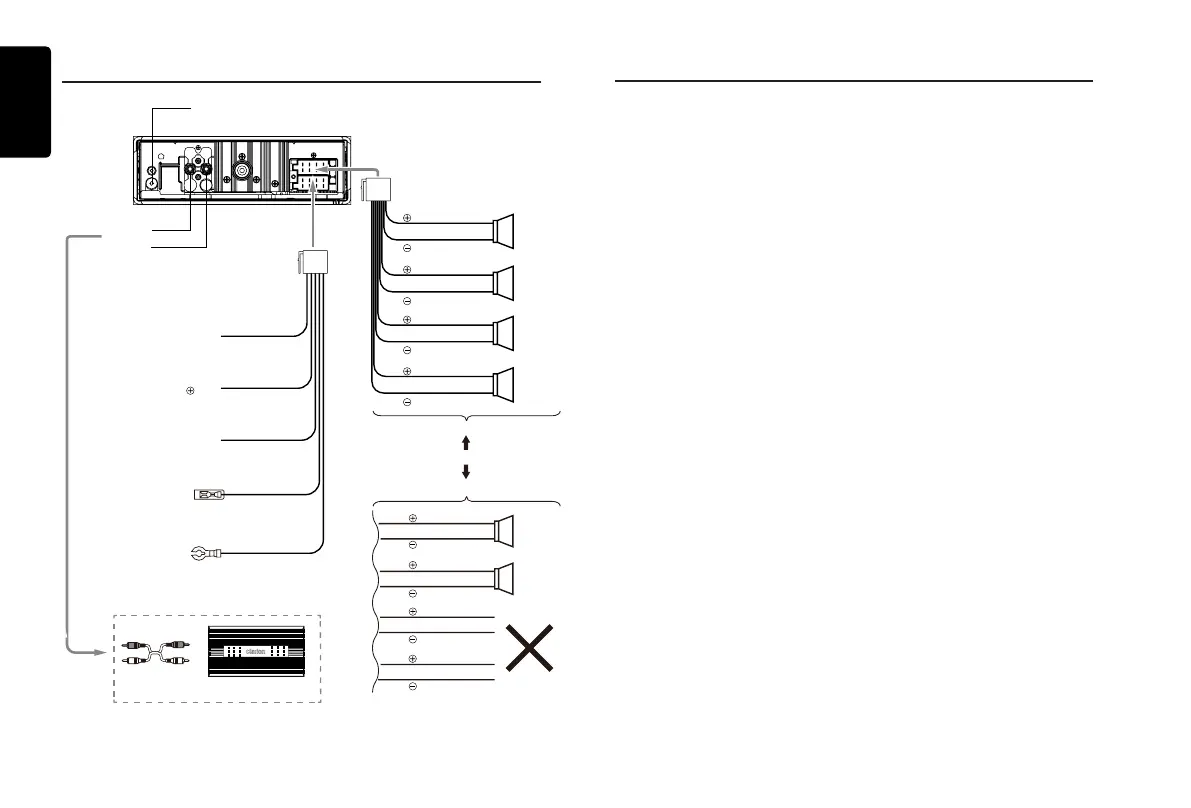

7) Wiring and Connections
• Connecting to the external amplier
External ampliers can be connected to the 2 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
8) Connecting the accessories
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Orange/White wire(Illumination lead
Blue/White wire (Amplier and Antenna turn-on lead)
Black wire (Ground lead)
Connect to remote turn-on lead of amplier
Connect to vehicle chassis ground
Connect directly to battery
Accessory
12V
Connect to the power supply terminal for illumination
Front Right
Front Right
Gray
Gray
White
White
Purple
Purple
Green
Green
Gray/Black
Gray/Black
White/Black
White/Black
Purple/Black
Purple/Black
Green/Black
Green/Black
4-Speaker system
2-Speaker system
or
Rear Right
Rear Left
Not used.
Insulate each wire
Front Left
Front Left
Rear audio output
Radio antenna
2 Channel Amplier
Right
Red
Left
White
