Clarion CZ109 Service Manual

ABCDEF
G
H
PONMLKJI
Port No.
NOTE
LINE COLOR
P
GND
BLACK
N
ILLUMI
ORANGE/WHITE
M
REMOTE
BLUE/WHITE
K
ACC
RED
I
SP R/L
GREEN/BLACK
H
B/U
YELLOW
G
SP R/R
PURPLE/BLACK
F
SP R/R
PURPLE
E
SP F/R
GRAY/BLACK
C
SP F/L
WHITE
D
SP F/R
GRAY
B
SP F/L
WHITE/BLACK
A
SP R/L
GREEN
O
YELLOW
L
AUTO ANT BLUE
J
PHONE INT
BROWN
854-6433-50
EXTENSION LEAD
FUSE(15A) 120-0150-00
FUSE(3A) 120-0030-00
GREEN
GREEN/BLACK
WHITE/BLACK
BROWN
WHITE
RED
YELLOW
BLACK
YELLOW
GRAY
BLUE
BLUE/WHITE
GRAY/BLACK ORANGE/WHITE PURPLE PURPLE/BLACK
J401
ABCDE FGH
PON
M
L
K
J
I
EXTENSION-LEAD CONNECTOR
F-R
S-GND
F-L
S-GND
N-R
N-L
S-GND
RCA PIN CORD(4CH)
(855-5563-50)
GRAY
PURPLE
RED
WHITE
RED
WHITE
FRONT/RIGHT
FRONT/LEFT
NON-FADER/RIGHT
NON-FADER/LEFT
LINE OUT
OEM STEERING WHEEL REMOTE
CONTROL INPUT JACK
ABCDEF
G
H
PONMLKJI
2
2
1
25
24
1
13
14
1
10
20
26
1
21
51
71
1
14
15
28
1
10
11
20
IC Q
To J701 of Switch PWB(B2) (page 10)
121
1
21
41
61
1
5
To P701 of Switch PWB(B2) (page 10)
connect with AUX LEAD 854-4619-50

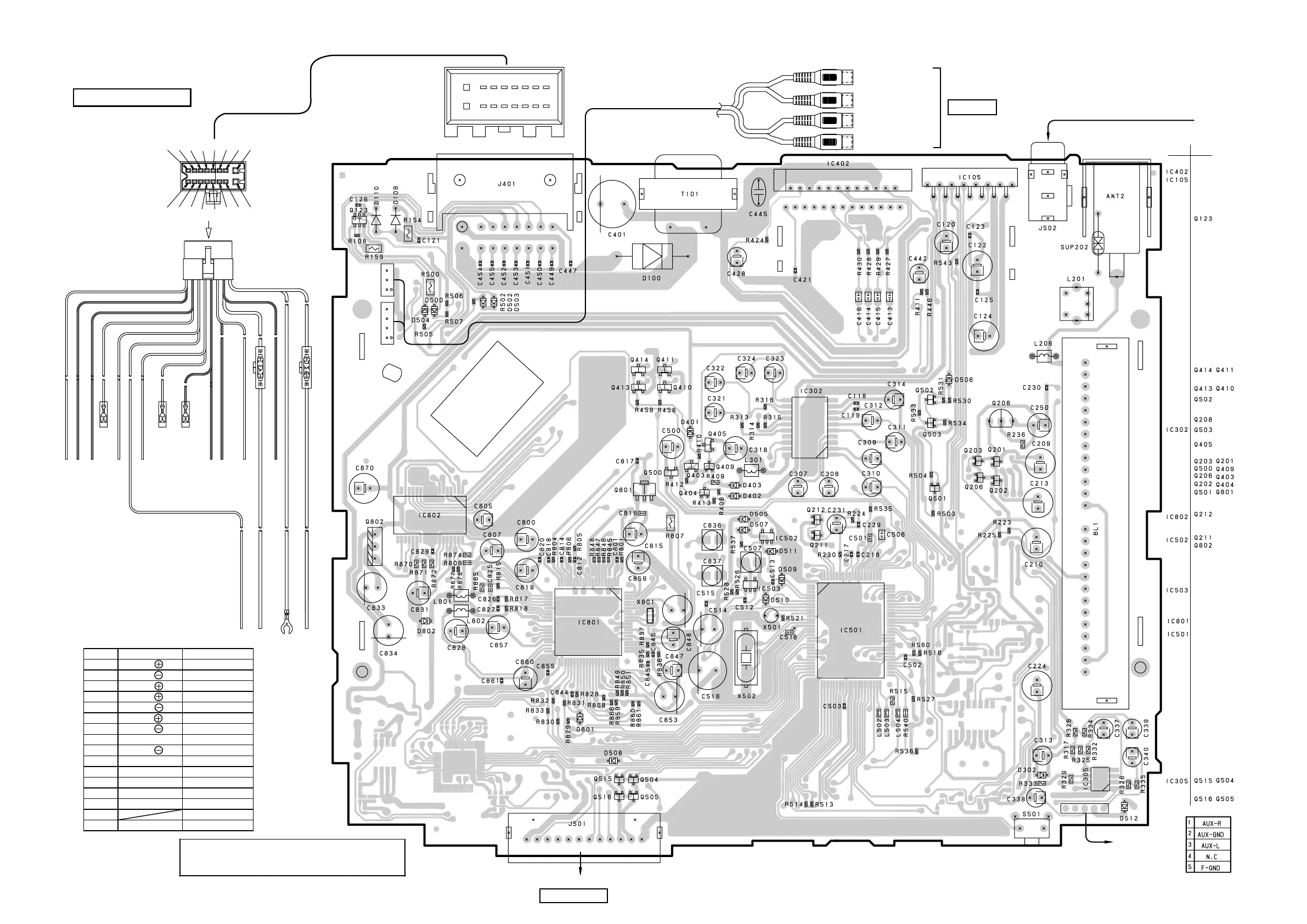

PRINTED WIRING BOARD 1/3
Main PWB(B1) section 1/2
Caution:
COMPONENT SIDE: Parts on the component side seen
from the component side are indicated.
COMPONENT SIDE
-9-
CZ109/CZ109A
