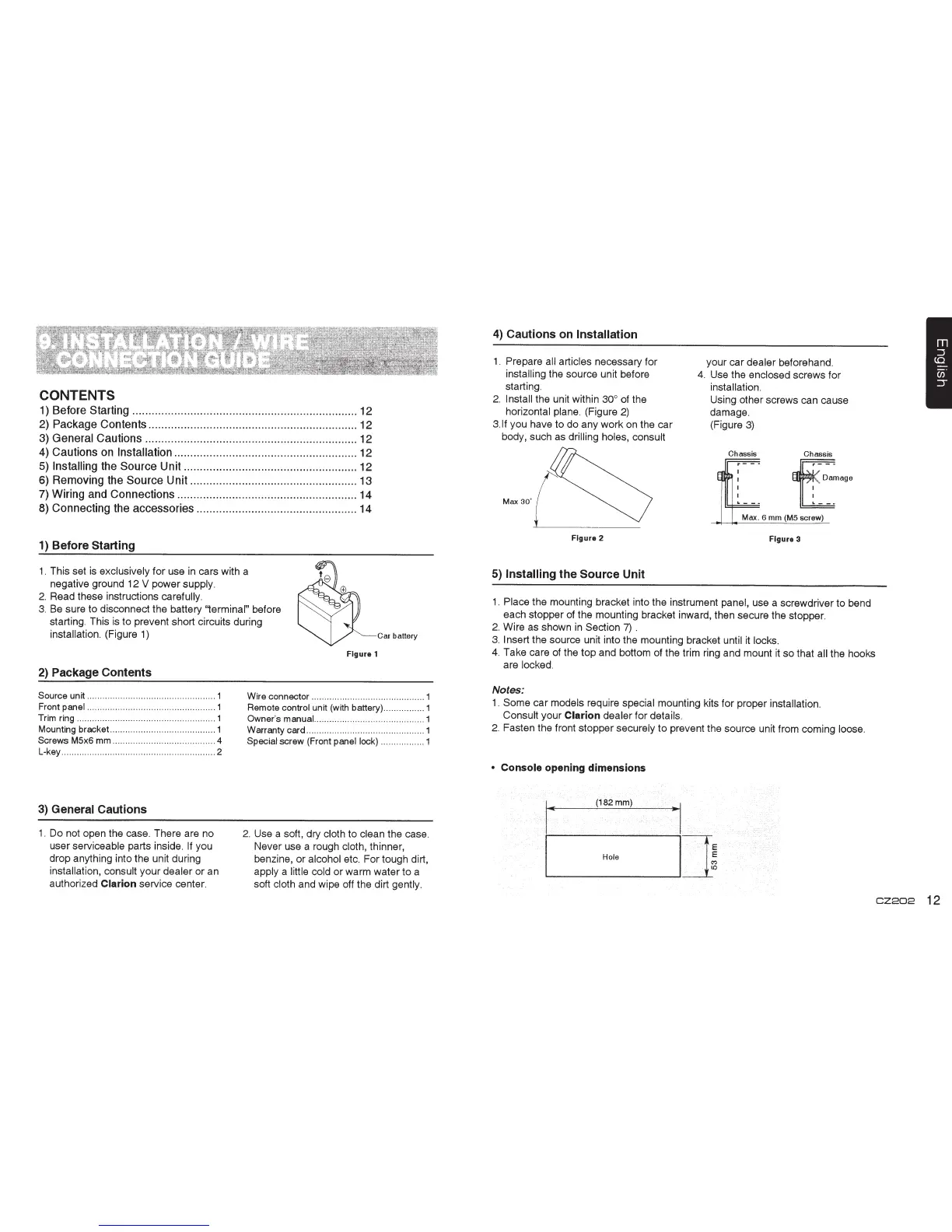

Clarion CZ202

CONTENTS
1)
Before Starting ...................................................................... 12
2)
Package Contents .................................................................
12
3)
General
Cautions ..................................................................
12
4)
Cautions
on
Installation
......................................................... 12
5)
Installing
the Source Unit ...................................................... 12
6)
Removing the Source Unit ....................................................
13
7)
Wiring and Connections ........................................................ 14
8)
Connecting the accessories ..................................................
14
1)
Before Starting
1.
This set
is
exclusively
for use
in
cars with a
negative ground
12 V power supply.
2. Read these instructions
carefully.
3.
Be
sure to disconnect the battery
''terminal"
before
starting. This
is
to prevent short circuits during
installation. (Figure
1)
2)
Package Contents
Figure
1
Car
battery
Source
unit ....
.. ..
...
........................ ............
..
.
1
Wire connector ..............
..
............................ 1
Front panel ..........
...
...............
.. ..
..........
..
......
1
Trim ring ........
...
...
...
........
..
...............
..
.
...
.
...
..
1
Mounting bracket ......
..
.....
..
....
...
...................
1
Screws
M5x6
mm
........................................
4
L-key .... ..........................
.. ..
.......................... 2
3)
General
Cautions
1.
Do not open the case. There are no
user
serviceable
parts inside.
If
you
drop anything into the unit during
installation, consult
your
dealer
or an
authorized
Clarion
service center.
Remote control unit (with battery) .......
..
..
.....
1
Owner's manual.
............. ..............
..
.... ....... ..
1
Warranty card ..........
...
.... ...............
..
............
1
Special screw (Front panel lock) .... .............
1
2. Use a soft, dry
cloth
to
clean the case.
Never use a rough cloth,
thinner,
benzine, or
alcohol
etc. For tough dirt,
apply
a
little cold
or warm water to a
soft
cloth
and wipe off the dirt
gently.
4)
Cautions on
Installation
1.
Prepare
all articles
necessary for
installing
the source unit before
starting.
2.
Install
the unit within
30°
of the
horizontal plane.
(Figure
2)
3.1f
you have to do any work on the car
body, such as
drilling holes, consult
Figure
2
5)
Installing
the
Source Unit
your car
dealer
beforehand.
4.
Use the
enclosed
screws for
installation.
Using other screws can cause
damage.
(Figure
3)
Chassis
Chassis
11~·~···
Max. 6 mm (M5 screw)
Figure
3
1.
Place
the mounting bracket into the instrument
panel, use a screwdriver to bend
each stopper of the mounting bracket inward, then secure the stopper.
2.
Wire as shown
in
Section
7)
.
3.
Insert
the source unit into the mounting bracket
until
it
locks.
4.
Take care
of
the top and bottom of the trim ring and mount
it
so that all
the hooks
are locked.
Notes:
1.
Some
car models
require
special
mounting kits for proper
installation.
Consult
your
Clarion
dealer
for
details.
2.
Fasten the front stopper securely
to prevent the source unit from coming
loose.
• Console
opening dimensions
I.._____
-Hole
_[]!
CZ202
