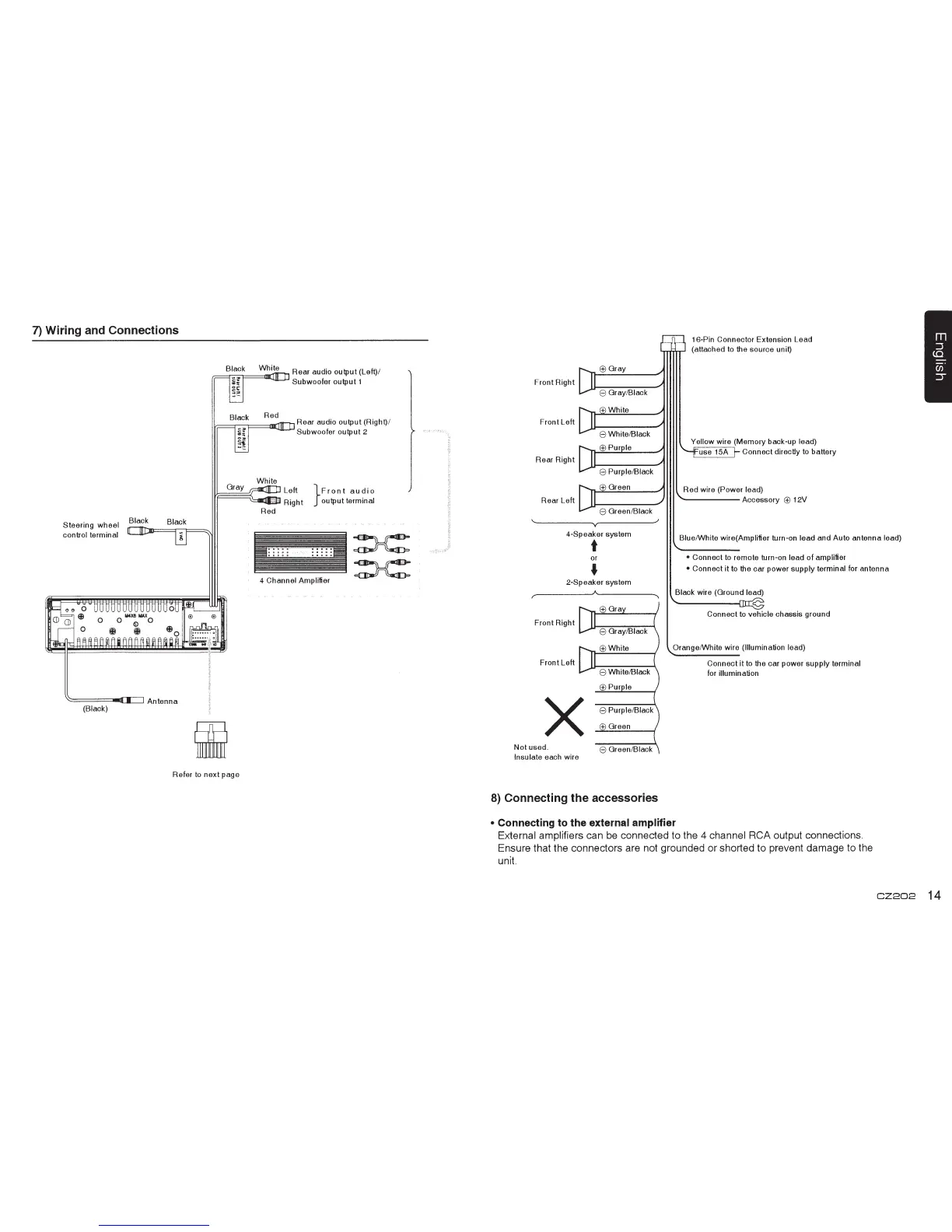

7) Wiring and Connections
Steering
wheel
control terminal
Black
Black
~====-II(]E::J
Antenna
(Black)
Black
White
Rear audio output (Left)/
Subwoofer
output
1
White
Gray L ft
111=====;c:::;;;:
e
Right
Red
}
Front
audio
output terminal
Refer to
next
page
Front
Right
Front
Left
Rear
Right
Rear
Left
(±)Gray
8 Gray/Black
+White
8 White/Black
8 Purple/Black
(±)Green
8 Green/Black
16-Pin Connector Extension Lead
(attached
to
the source unit)
Red wire (Power lead)
------Accessory
® 12V
4-Speaker system
t
Blue/White wire(Ampli1ier turn-on lead and Auto antenna lead)
or
• Connect to remote turn-on lead
of
amplifier
• Connect
it
to the
car
power supply terminal for antenna
2-Speaker system
Front
Right
Front
Left
X
(±)Green
Not
used.
8 Green/Black
Insulate each wire
8) Connecting
the
accessories
Black wire (Ground lead)
Connect to vehicle chassis ground
Orange/White wire (Illumination lead)
Connect it
to
the
car
power
supply
terminal
for illumination
• Connecting to the external amplifier
External amplifiers can
be
connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
CZ202
14
To Next Page
