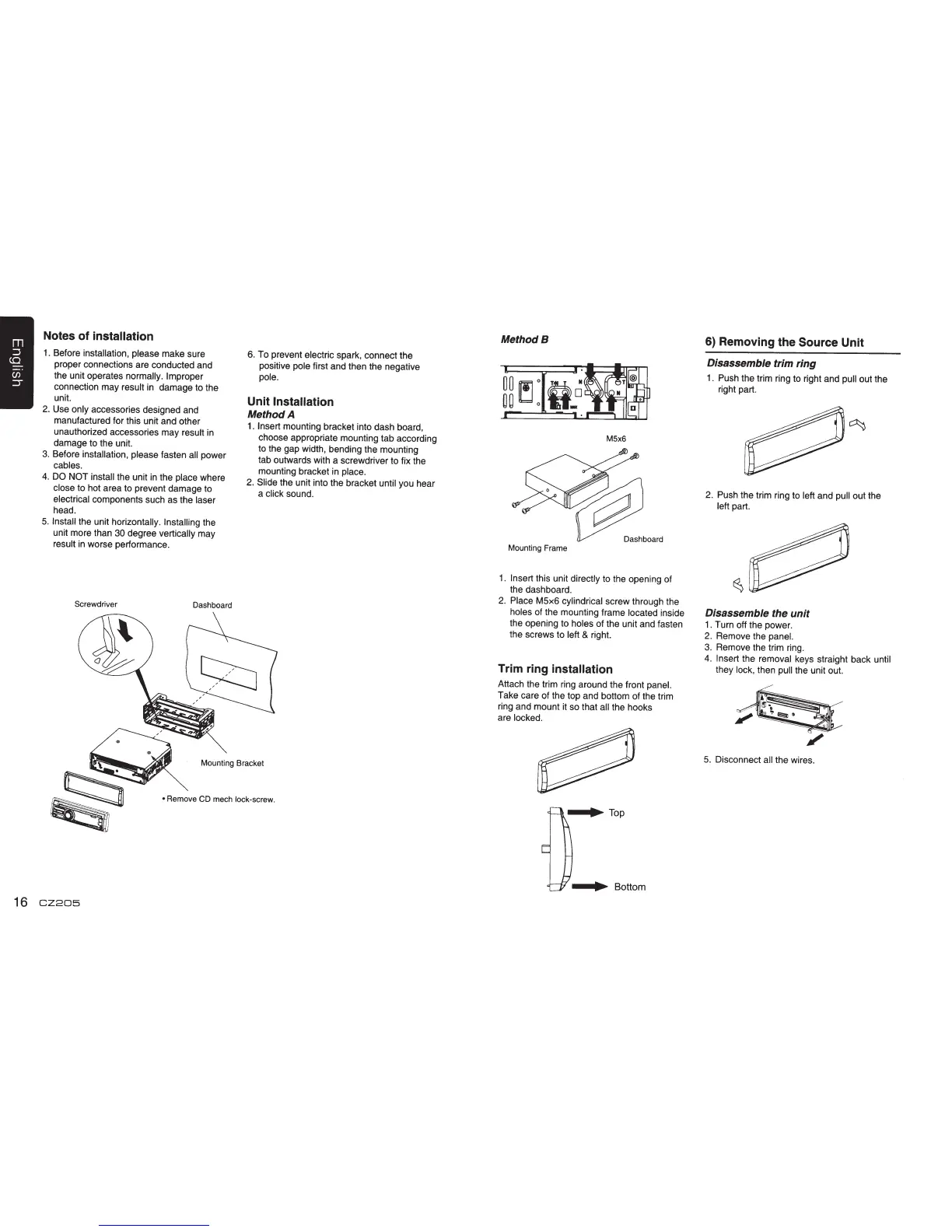

Notes of
installation
1.
Before
installation, please
make sure
proper connections are conducted and
the unit operates
normally. Improper
connection may result
in damage to the
unit.
2.
Use
only accessories designed and
manufactured for this unit and other
unauthorized accessories may
result
in
damage to the unit.
3.
Before
installation, please
fasten
all
power
cables.
4.
DO NOT install
the unit in the
place where
close
to hot area to prevent damage to
electrical
components such as the
laser
head.
5.
Install
the unit
horizontally. Installing
the
unit more than
30
degree
vertically
may
result
in
worse performance.
Screwdriver
Dashboard
6.
To prevent
electric
spark, connect the
positive
pole
first and then the negative
pole.
Unit
Installation
Method A
1.
Insert
mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting
tab outwards with a screwdriver to fix the
mounting bracket in
place.
2.
Slide
the unit into the bracket
until you hear
a click
sound.
Mounting Bracket
•
Remove CD mech lock-screw.
16
CZ205
MethodS
M5x6
Mounting Frame
1.
Insert
this unit
directly
to the opening of
the dashboard.
2.
Place
M5x6
cylindrical
screw through the
holes
of the mounting frame
located
inside
the opening to
holes
of the unit and fasten
the screws to
left
&
right.
Trim ring
installation
Attach the trim ring around the front
panel.
Take care of the top and bottom of the trim
ring and mount it so that
all
the hooks
are
locked.
6) Removing the Source
Unit
Disassemble trim ring
1. Push the trim ring to right and
pull
out the
right part.
2.
Push the trim ring to
left
and
pull
out the
left
part.
Disassemble the unit
1.
Turn off the power.
2.
Remove the
panel.
3.
Remove the trim ring.
4.
Insert
the removal
keys straight back until
they
lock, then
pull
the unit out.
5.
Disconnect all
the wires.
