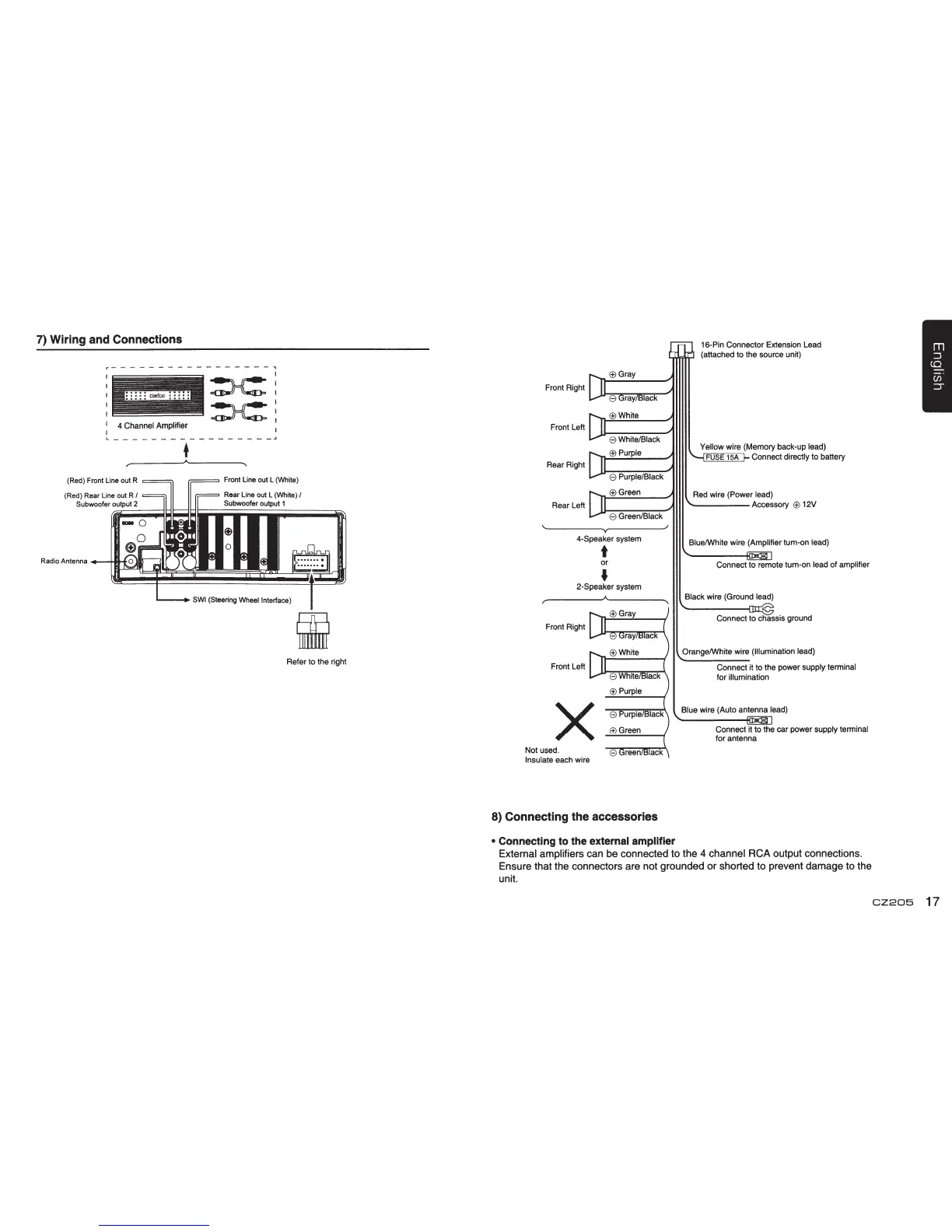

7) Wiring and Connections
f"'·""""'_,.,""""._........,. ___________ ,_,,
!
:»=C I
:»=C
4 Channel Amplifier
I
""---------------- -"'
Front Line out l (White)
(Red) Front Line out R
(Red) Rear Line out R
I
Subwoofer output 2
~~~~~~~~~r.~~--~
SWI (Steering Wheel Interface)
Refer to the right
Front Right
Front Left
Rear Right
Rear Left
(!)White
8 White/Black
(!)Purple
8 Purple/Black
(!)Green
8 Green/Black
4-Speaker system
t
or
•
2-Speaker system
Front Right
Front Left
(!)Purple
X
Not used.
Insulate each wire
8) Connecting the accessories
• Connecting to the external amplifier
16-Pin Connector Extension Lead
(attached to the source unit)
Yellow wire (Memory back-up lead)
FUSE 15A Connect directly to battery
Red wire (Power lead)
------Accessory (!) 12V
Blue/White wire (Amplifier tum-on lead)
Connect to remote tum-on lead of amplifier
Black wire (Ground lead)
Connect to chassis ground
Orange/White wire (Illumination lead)
Connect it to the power supply terminal
for illumination
Blue wire (Auto antenna lead)
Connect it to the car power supply terminal
for antenna
External amplifiers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
CZ205 17
