Clarion CZ205 User Manual

I.

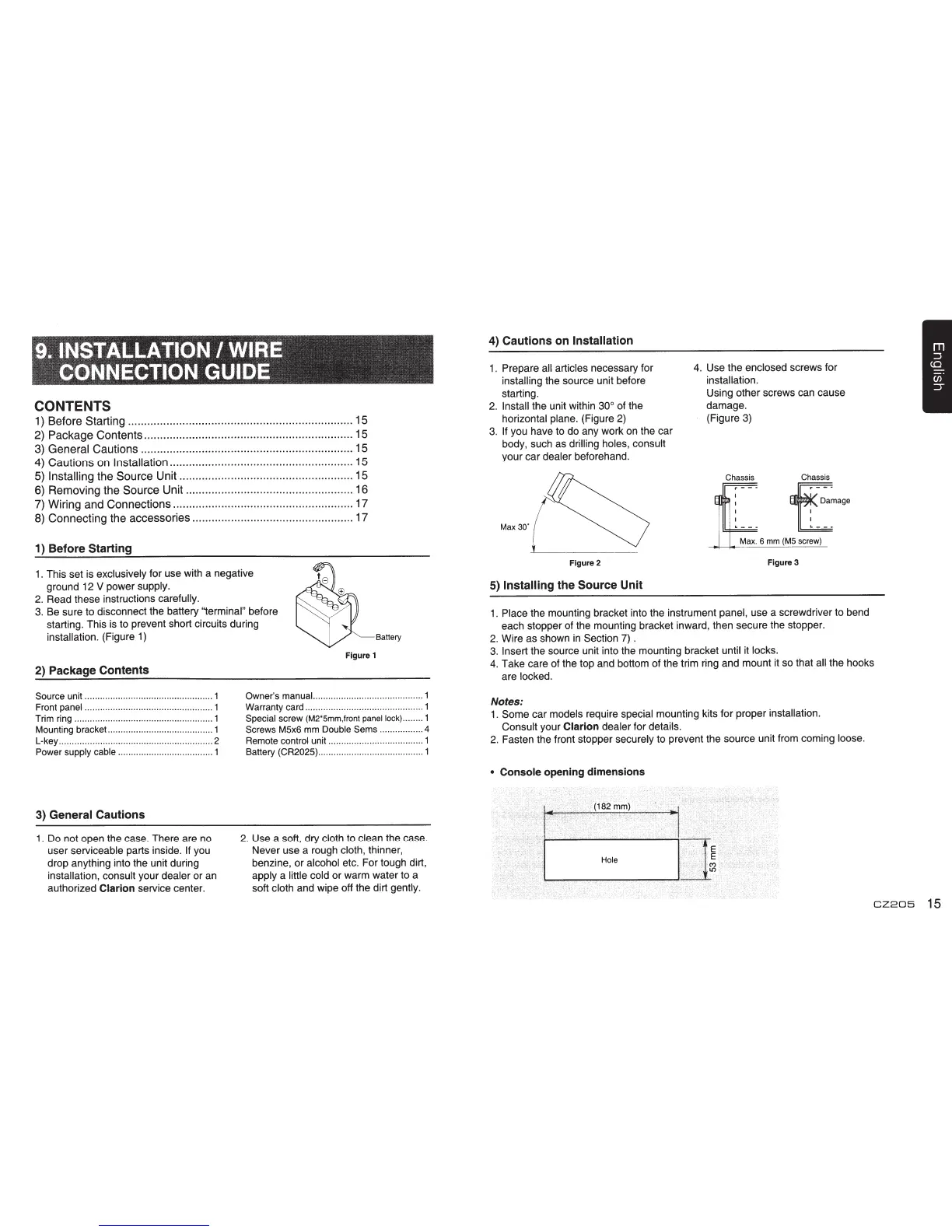

INBJ:ALLATIQN
I WIRE
, UDNNECTIQN GUIDE
CONTENTS
1)
Before Starting ...................................................................... 15
2)
Package Contents ................................................................. 15
3)
General Cautions .................................................................. 15
4)
Cautions on
Installation ......................................................... 15
5)
Installing
the Source Unit ...................................................... 15
6)
Removing the Source Unit .................................................... 16
7)
Wiring and Connections ........................................................ 17
8)
Connecting the accessories .................................................. 17
1)
Before Starting
1
. This set is
exclusively
for use with a negative
ground 12 V power supply.
2. Read these instructions
carefully.
3.
Be sure to disconnect the battery
''terminal"
before
starting. This is to prevent short circuits during
installation.
(Figure
1)
2) Package Contents
Figure 1
Battery
Source
unit .................................................. 1
Owner's manual.
..........................................
1
Front
panel ..................................................
1
Trim ring ......................................................
1
Mounting bracket .........................................
1
L-key ............................................................ 2
Power supply cable
.....................................
1
3)
General
Cautions
1.
Do not open the case. There are no
user
serviceable
parts inside. If
you
drop anything into the unit during
installation, consult your dealer
or an
authorized
Clarion
service center.
Warranty card ...............
..
.............................
1
Special
screw
(M2*5mm,front panel lock)
........
1
Screws
M5x6 mm
Double Sems
................
.4
Remote control
unit .....................................
1
Battery (CR2025) ......................................... 1
2.
Use a soft, dry
cloth
to
clean
the case.
Never use a rough
cloth,
thinner,
benzine, or
alcohol
etc. For tough dirt,
apply
a little cold
or warm water to a
soft
cloth and wipe off the dirt
gently.
4)
Cautions on
Installation
1
. Prepare
all articles
necessary for
installing
the source unit before
starting.
2.
Install
the unit within
30°
of the
horizontal plane.
(Figure
2)
3.
If
you have to do any work on the car
body, such as
drilling holes, consult
your car
dealer
beforehand.
Max
30'
Figure 2
5)
Installing
the Source Unit
4.
Use the
enclosed
screws for
installation.
Using other screws can cause
damage.
(Figure 3)
Chassis Chassis
t~a~ge
Max. 6
mm
(MS
screw)
Figure 3
1.
Place the mounting bracket into the instrument panel,
use a screwdriver to bend
each stopper of the mounting bracket inward, then secure the stopper.
2.
Wire as shown
in
Section
7).
3.
Insert
the source unit into
the mounting bracket
until
it
locks.
4.
Take care of the top and bottom of the trim ring and mount it so that
all
the hooks
are
locked.
Notes:
1.
Some car
models
require
special
mounting kits for proper
installation.
Consult
your
Clarion
dealer
for
details.
2.
Fasten the front stopper securely
to prevent the source unit from coming
loose.
•
Console
opening
dimensions
CZ205
15
