Clarion CZ505

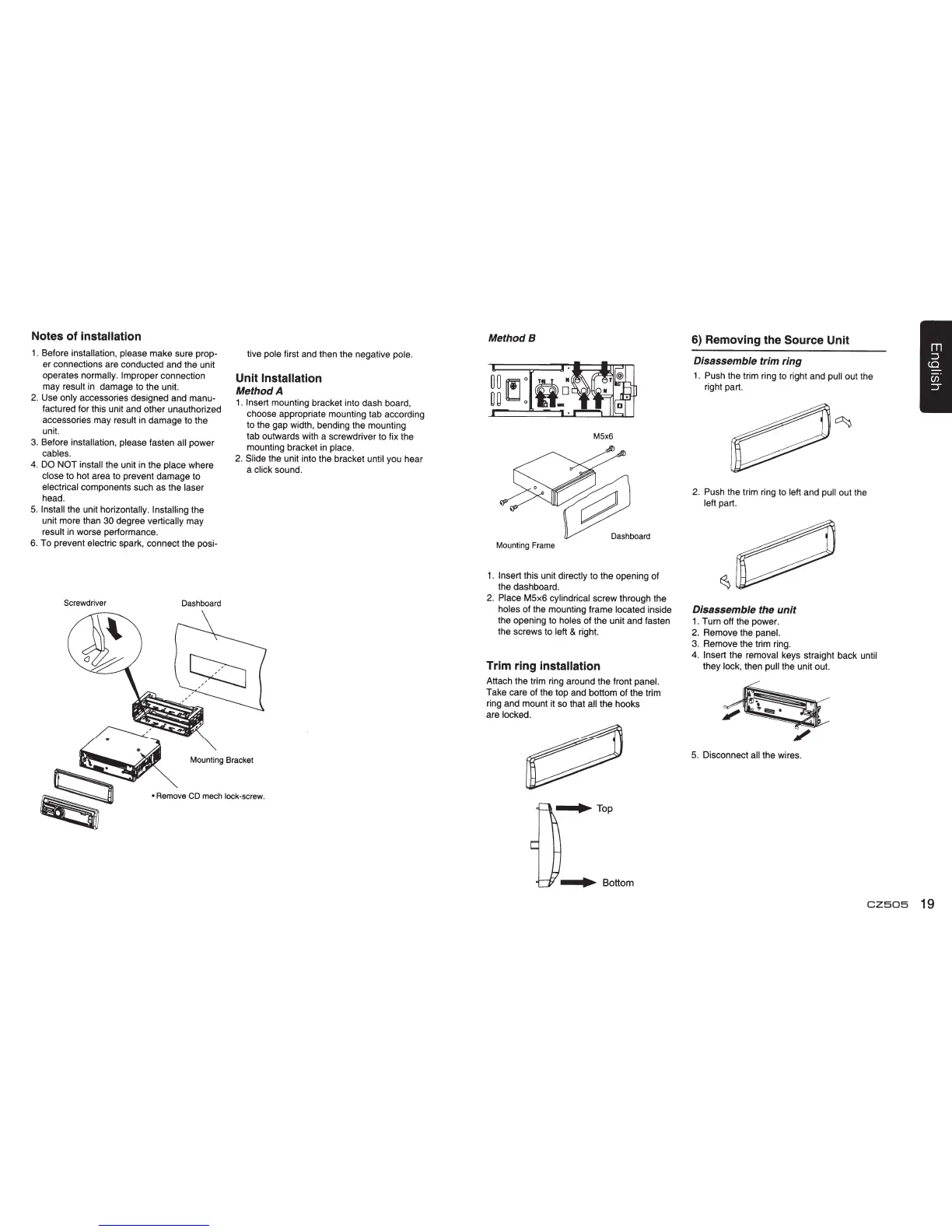

Notes of installation
1.
Before
installation,
please make sure prop-
er connections are conducted and the unit
operates normally.
Improper connection
may result
in
damage to the unit.
2.
Use only accessories designed and manu-
factured for this unit and other unauthorized
accessories may result
in
damage to the
unit.
3.
Before
installation, please fasten
all
power
cables.
4.
DO NOT install
the unit in the place where
close to hot area to prevent damage to
electrical components such as the laser
head.
5.
Install the unit
horizontally. Installing
the
unit more than
30
degree
vertically
may
result
in
worse performance.
6.
To prevent electric spark, connect the posi-
Screwdriver Dashboard
tive pole first and then the negative pole.
Unit
Installation
Method A
1.
Insert
mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting
tab outwards with a screwdriver to fix the
mounting bracket
in
place.
2. Slide
the unit into the bracket until you hear
a click sound.
Mounting Bracket
•
Remove
CD
mech lock-screw.
MethodS
M5x6
~
Mounting Frame
1.
Insert
this unit directly to the opening of
the dashboard.
2.
Place
M5x6
cylindrical screw through the
holes of the mounting frame located inside
the opening to holes of the unit and fasten
the screws to left & right.
Trim ring
installation
Attach the trim ring around the front panel.
Take care of the top and bottom of the trim
ring and mount it so that
all the hooks
are locked.
6) Removing the Source Unit
Disassemble trim ring
1.
Push the trim ring to right and
pull
out the
right part.
2.
Push the trim ring to left and
pull
out the
left part.
Disassemble the unit
1.
Turn off the power.
2.
Remove the panel.
3.
Remove the trim ring.
4.
Insert
the removal keys straight back until
they lock, then
pull
the unit out.
5.
Disconnect
all the wires.
CZ505
19
