Clarion CZ505

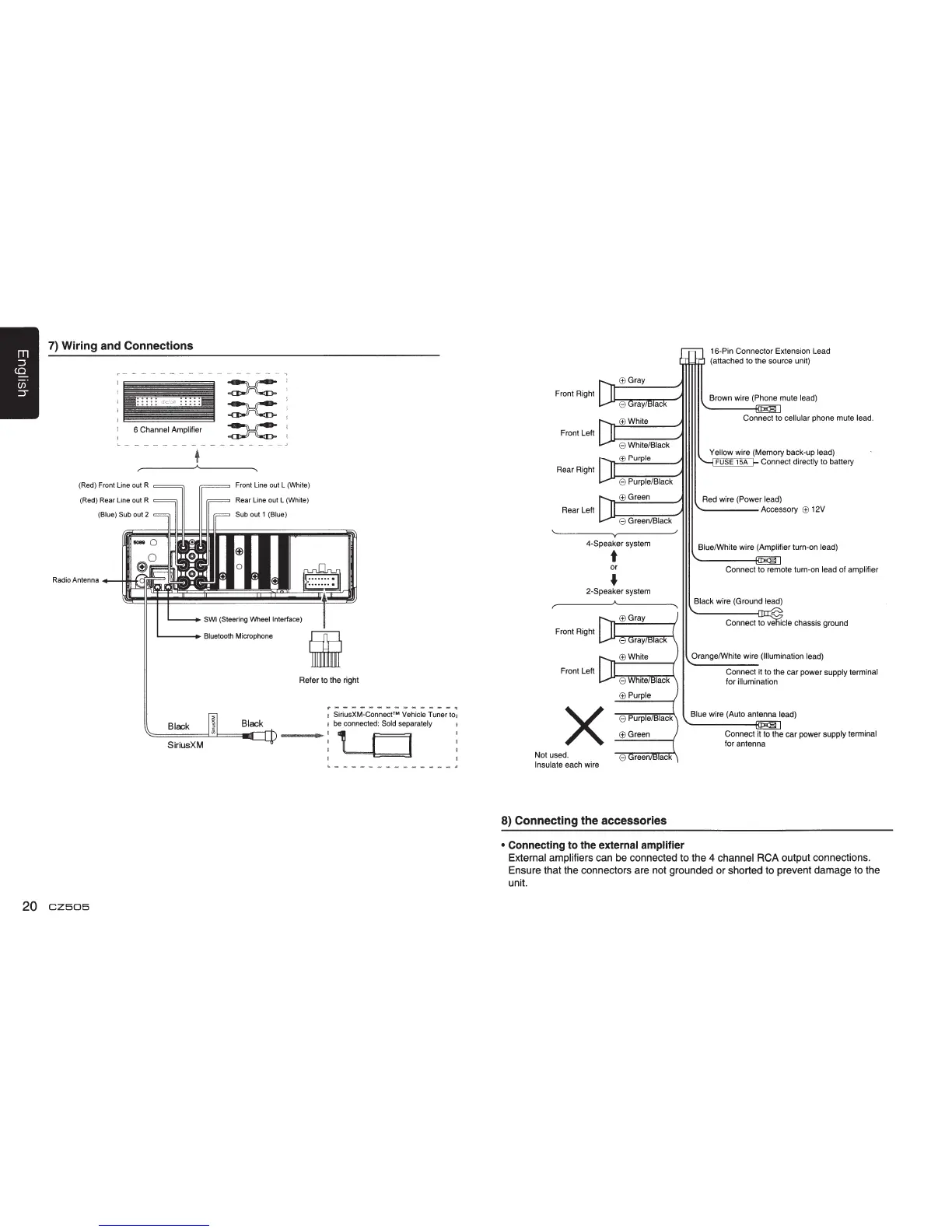

7) Wiring and Connections
6 Channel Amplifier
(Red) Front Line out R
(Red) Rear Line out R
(Blue) Sub out 2
t
Front Line out L (White)
Rear Line out L (White)
Sub out 1 (Blue)
SWI (Steering Wheel Interface)
.....__ __ _,. Bluetooth Microphone
Black
SiriusXM
20 CZ505
Refer to the right
f'"»>O< _________ ....,. __ ~
1 SiriusXM-Connect™ Vehicle Tuner to,
1 be connected: Sold separately
:, l ]
Front Right
Front Left
Rear Right
Rear Left
i±)White
8 White/Black
!±l Purple
8 Purple/Black
!±l Green
8 Green/Black
4-Speaker system
t
or
•
2-Speaker system
Front Right
Front Left
!±l Purple
X
Not used.
Insulate each wire
8) Connecting the accessories
• Connecting to the external amplifier
16-Pin Connector Extension Lead
(attached to the source unit)
Brown wire (Phone mute lead)
Connect to cellular phone mute lead.
Yellow wire (Memory back-up lead)
FUSE 15A Connect directly to battery
Red wire (Power lead)
------Accessory i±J12V
Blue/White wire (Amplifier turn-on lead)
Connect to remote turn-on lead of amplifier
Black wire (Ground lead)
Connect to ve icle chassis ground
Orange/White wire (Illumination lead)
Connect it to the
car power supply terminal
for illumination
Blue wire (Auto antenna lead)
Connect it to the
car power supply terminal
for antenna
External amplifiers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded
or shorted to prevent damage to the
unit.
