Clarion CZ702

Audio Setup
Selecting speaker
W
hen this product is turned on for the first
time or reset, user can select “LOAD” or
“INITIAL” depending on the speaker system.
Select “LOAD” for Normal speaker system
(full range) or select “INITIAL” for 2-Way or
3-Way systems.

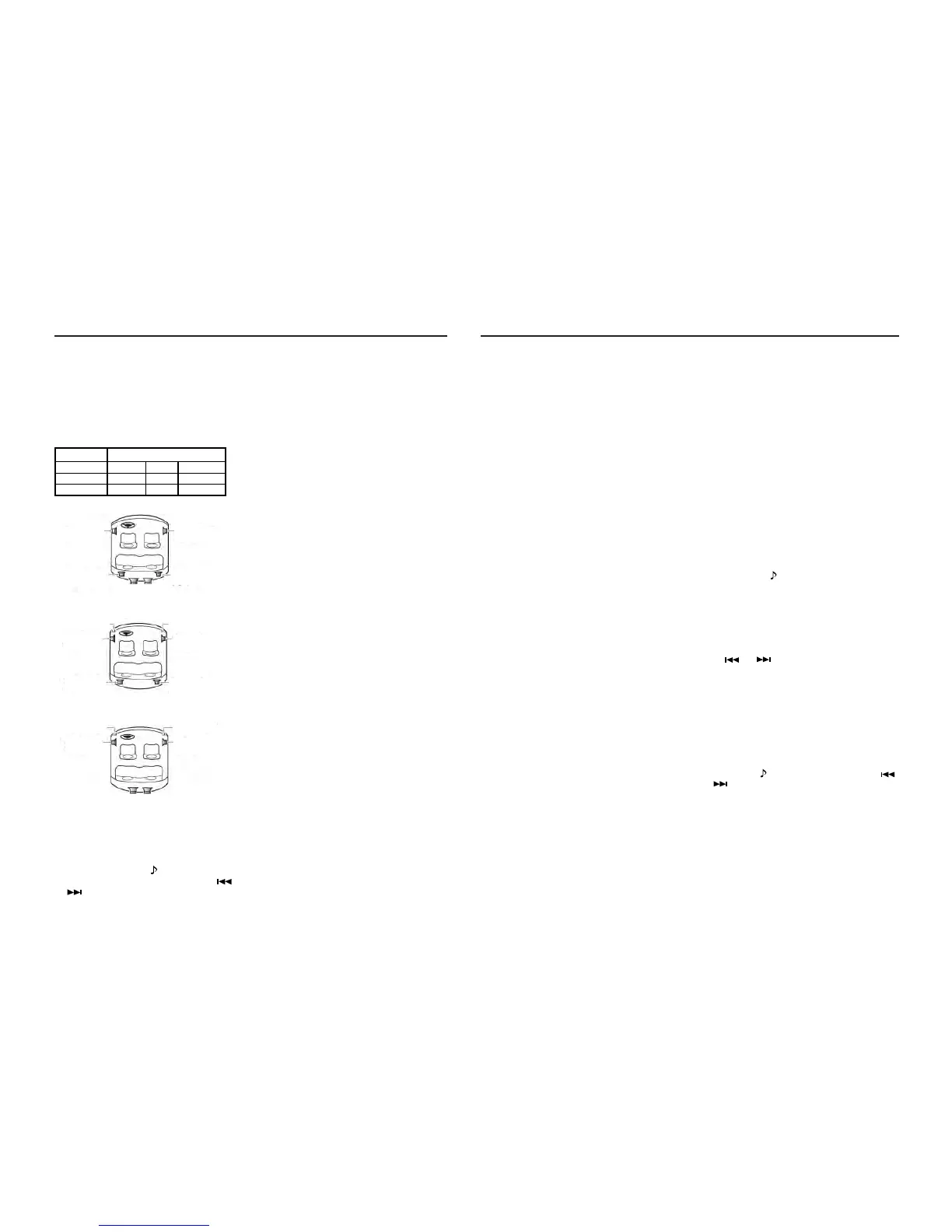

Speaker system
Speaker system
Speaker conguration
NORMAL Front 2ch Rear 2ch Subwoofer 2ch
2-WAY Mid 2ch High 2ch Rear 2ch
3-WAY Mid 2ch High 2ch Subwoofer 2ch
• Normal speaker system (NORMAL)
Front speaker
(left)
Rear speaker
(left)
Subwoofer
Front speaker
(right)
Rear speaker
(right)
• 2way speaker system (2WAY)
Mid speaker
(left)
High (Tweeter)
(left)
R
ear speaker
(left)
Mid speaker
(right)
H
igh (Tweeter)
(right)
Rear speaker
(right)
• 3way speaker system (3WAY)
Mid speaker
(left)
High (Tweeter)
(left)
Subwoofer
Mid speaker
(right)
High (Tweeter)
(right)
Setting the X-OVER(Crossover)
T
his function allows you to adjust the speaker
setting such as cutoff frequencies or slope
matched to the speakers you are using.
(Crossover).
Press and hold the [
] button to enter
amplifier setting mode. Use the [
]
or [
] button to select an option.
Press [ VOLUME ] knob to conrm.
To return to the previous settings, press the
[ VOLUME ] knob again.
1. When speaker system is “NORMAL”.
• TIME ALIGNMENT
FRONT L/R: 0-----501.4cm
REAR L/R: 0-----501.4cm
SW L/R: 0-----501.4cm
• HPF/LPF FRONT
- FR HPF
CUT: THROUGH / 60 / 90 / 120HZ
SLOP: -12DB
PHASE: NOR / REV
• HPF/LPF REAR
- REAR HPF
CUT: THROUGH / 60 / 90 / 120HZ
SLOP: -12DB
PHASE: NOR / REV
• HPF/LPF S-WOOFER
- SW LPH
CUT: THROUGH / 60 / 90 / 120HZ
SLOP: -12DB
PHASE: NOR / REV
2. When speaker system is “2WAY”.
• TIME ALIGNMENT
HIGH L/R: 0-----501.4cm
MID L/R: 0-----501.4cm
REAR L/R: 0-----501.4cm
• 2W XOVER
- HIGH HPF
CUT: 25HZ
/ 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / 12.5K / 16K /
20K / THROUGH
SLOP: -6 / -12DB
- HIGH SPK: PHASE NOR/PHASE REV
- MID LPF
CU
T: 630HZ / 800HZ / 1K / 1.25K / 1.6K
/ 2K / 2.5K / 3.15K / 4K / 5K / 6.3K / 8K /
10.0K / THROUGH
SLOP: -6 / -12DB
- MID HPF
CUT: 25HZ
/ 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ /1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K/ 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- MID SPK: PHASE NOR/PHASE REV
- REAR LPF
CUT: 25HZ
/ 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ
Audio Setup
/
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- REAR HPF
CU
T: 16HZ / 20HZ / 25HZ / 31.5HZ / 40HZ
/ 50HZ / 63HZ / 80HZ / 100HZ / 125HZ /
160HZ / 200HZ / 250HZ / THROUGH
SLOP: -6 / -12DB
- REAR SPK: PHASE NOR/PHASE REV
• SP GAIN
HIGH: -20-----0DB
MID: -20-----0DB
REAR: -20-----0DB
3. When speaker system is “3WAY”.
• TIME ALIGNMENT
HIGH L/R: 0-----501.4cm
MID L/R: 0-----501.4cm
SW L/R: 0-----501.4cm
• 3W XOVER
- HIGH HPF
CUT:
25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / 12.5K / 16K /
20K / THROUGH
SLOP: -6 / -12DB
- HIGH SPK: PHASE NOR/PHASE REV
- MID LPF
CU
T: 630HZ / 800HZ / 1K / 1.25K / 1.6K
/ 2K / 2.5K / 3.15K / 4K / 5K / 6.3K / 8K /
10.0K / THROUGH
SLOP: -6 / -12DB
- MID HPF
CUT:
25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- MID SPK: PHASE NOR/PHASE REV
- SW LPH
CU
T: 25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- SW HPF
CU
T: THROUGH / 16HZ / 20HZ / 5HZ /
31.5HZ / 40HZ / 50HZ / 63HZ / 80HZ /
100HZ/ 125HZ / 160HZ / 200HZ /250HZ
SLOP: -6 / -12DB
- SW SPK: PHASE NOR/PHASE REV
• SP GAIN
HIGH: -20-----0DB
MID: -20-----0DB
S-WOOFER: -20-----0DB
ST
ORE/RECALL (NORMAL, 2WAY and 3WAY
mode)
Rotate the [VOLUME] knob to choose ”STORE /
RECALL”. Press the [VOLUME] knob to conrm.
•
STORE
Rotate the
[VOLUME] knob to select a position
among ”MEMORY 1, 2 and 3”. Then press and
hold the [VOLUME] knob to store.
•
RECALL
Rotate the
[VOLUME] knob to select a position
among ”MEMORY 1, 2 and 3”. Then press the
[VOLUME] knob to recall.
Adjusting Sound Mode
Short-press
the [ ] button to enter sound effect
setting mode. First press shows current EQ.
Rotate the [VOLUME] knob to change the BEAT
EQ in this order:
OFF -> B-BOOST -> IMPACT -> EXCITE ->
CUSTOM
Rotate the [VOLUME] knob to choose the
CUSTOM, and press the [VOLUME] knob, then
press [
] or [ ] button to select it including:
BAND
1 G -> BAND 1 F -> BAND 1 Q -> BAND
2 G -> BAND 2 F -> BAND 2 Q -> BAND 3 G ->
BAND 3 F -> BAND 3 Q -> BAND 4 G -> BAND
4 F -> BAND 4 Q -> BAND 5 G -> BAND 5 F ->
BAND 5 Q, rotate the [VOLUME] knob to select a
value.
BAND 1/2/3/4/5 G: (-12) - (+12)
BAND 1/2/3/4/5 F: 20HZ - 20.0K, THROUGH
BAND 1/2/3/4/5 Q: 1, 3, 5, 7, 20
Press th e [
] b u tton, then press [
]
o
r [ ] button to select USER preset including:
BALANCE -> FADER -> SUBW VOL(Subwoofer
Volume), rotate the [VOLUME] knob to select a
value.
BALANCE: LEFT 1-12->CENTER->RIGHT 1-12
FADER: LEFT 1-12->CENTER->RIGHT 1-12
SUBW VOL: (-6) - (+6)
Note:
The setting items below are not stored in memory.
After RESET or the back-up line is disconnected,
redo these settings. We recommend you to take a
note to keep the records.
