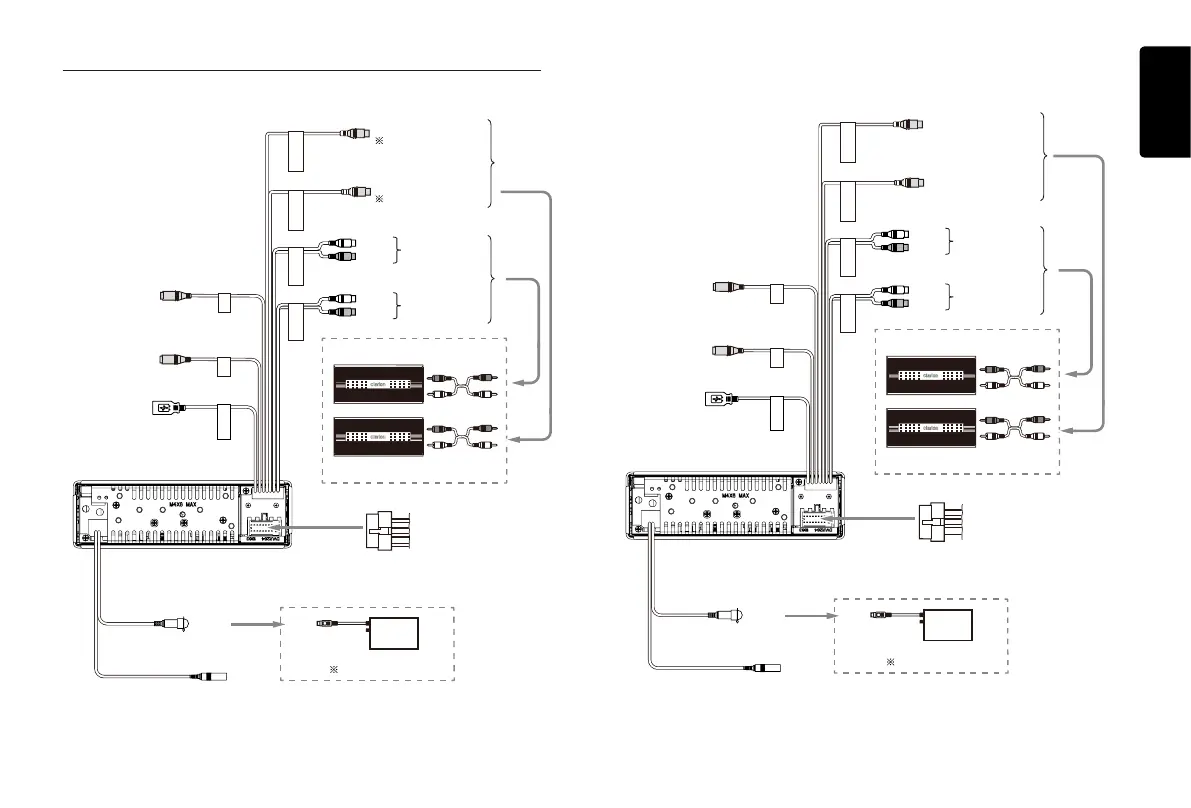

7) Wiring and Connections
• Normal mode
Refer to next page
MIC
SWC
4 Channel Amplier
2 Channel Amplier
Black
Black
Black
Black
Steering wheel
control terminal
USB Connector
External
microphone
(RCB-199:Sold by separately)
White
Gray
Red
Left
Right
Mid audio
output terminal
White
Black
Red
Left
Right
High audio
output terminal
Purple
Purple
Rear audio output(Left)
Rear audio output(Right)
• 2 Way mode
SUB OUT 1 REAR OUT L
SUB OUT 2 REAR OUT R
REAR OUT HIGH OUT
FRONT OUT MID OUT
Refer to next page
MIC
USB iPod/iPhone
USB iPod/iPhone
SWC
4 Channel Amplier
2 Channel Amplier
Black
Black
Black
Black
Steering wheel
control terminal
USB Connector
External
microphone
(RCB-199:Sold by separately)
White
Gray
Red
Left
Right
Front audio
output terminal
White
Black
Red
Left
Right
Rear audio
output terminal
Antenna
(Black)
Antenna
(Black)
Purple
Purple
Subwoofer output 1
Monaural output
Subwoofer output 2
Monaural output
SUB OUT 1 REAR OUT L
SUB OUT 2 REAR OUT R
REAR OUT HIGH OUT
FRONT OUT MID OUT
DAB
DAB
DAB302E (sold separately)
Only Australia
DAB302E (sold separately)
Only Australia
(Black)
(Black)
