Clarion DB265MP Service Manual

1-37
1-36
1-35
1-34
1-33
1-32
1-31
1-41
1-30
1-29
1-28
1-27
1-25
1-26
1-22
1-23
1-24
1-22
1-22
1-21
1-15
1-13
1-39
1-9
1-5
1-8
1-19
1-20
1-18
1-4
1-3
1-2
1-38
1-1
1-17
1-38
1-6
1-12
1-11
1-7
1-40
1-10
1-42
1-14
1-16
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 DCP-570-600 DCP-ASSY(PE-2793B-A) 1 1-22
716-0872-62
SCREW(M1.7x6) 6
DCP-570-800 DCP-ASSY(PE-2793K-A/B) 1 1-23 076-0615-50 PLUG 1
1-1 373-1082-01 DIAL-CVR (PE-2793B-A) 1 1-24 051-6013-00
IC
1
373-1082-02 DIAL-CVR (PE-2793K-A/B) 1 051-6013-50
IC
1
1-2 345-5496-00 RUBBER RING 1 1-25 060-4017-90 IR-RECIEVER 1
1-3 380-5673-00 KNOB 1 1-26 016-9900-84 VR W/SHAFT 1
1-4 335-7644-00 KNOB RING 1 1-27 017-0444-00 PILOTLAMP(14V 50mA) 2
1-5 382-7558-00 BUTTON 1 1-28 345-5899-03 LAMP CAP 2
1-6 382-7550-00 BUTTON 1 345-5231-01 LAMP CAP 2
1-7 382-7555-00 BUTTON 1 1-29 ------------- SWITCH PWB 1
1-8 382-7565-00 BUTTON 1 1-30 001-7046-01 DIODE 1
1-9 382-7564-00 BUTTON 1 1-31 335-7657-00 LCD HOLDER 1
1-10 382-7563-00 BUTTON 1 1-32 335-7658-00 LCD ILLUMI 1
1-11 382-7567-01 BUTTON 1 1-33 347-7955-00 LCD FILM 1
1-12 382-7568-00
BUTTON
1 1-34 347-7956-00 BLACK FILM 1
1-13 335-7655-00 ILLUMI PLATE(L) 1 1-35 345-5920-00 RUBBER PART 1
1-14 335-7656-00 ILLUMI PLATE(R) 1 1-36 379-1352-41 INDICATOR(LCD) 1
1-15 345-5893-00 RUBBER KEY(L) 1 1-37 331-4112-00 LCD COVER 1
1-16 345-5894-00 RUBBER KEY(R) 1 1-38 347-7952-00 DOUBLE FAC 2
1-17 347-7410-00 DOUBLE FACE(DC) 2 1-39 347-7958-00 FILM 1
1-18 382-7562-00 BUTTON 1 1-40 347-7957-00 FILM 1
1-19 750-6817-00 SPRING 1 1-41 347-7953-00 FILM 1
1-20 370-6193-01 ESCUTCHEON 1 1-42 347-8007-00 FILM 1
1-21 335-6897-03 REAR-CVR 1
1
Note)Several different parts of the same reference number are alternative parts.
One of those parts is used in the set.
Note) SANKOL uses CFD-409Z

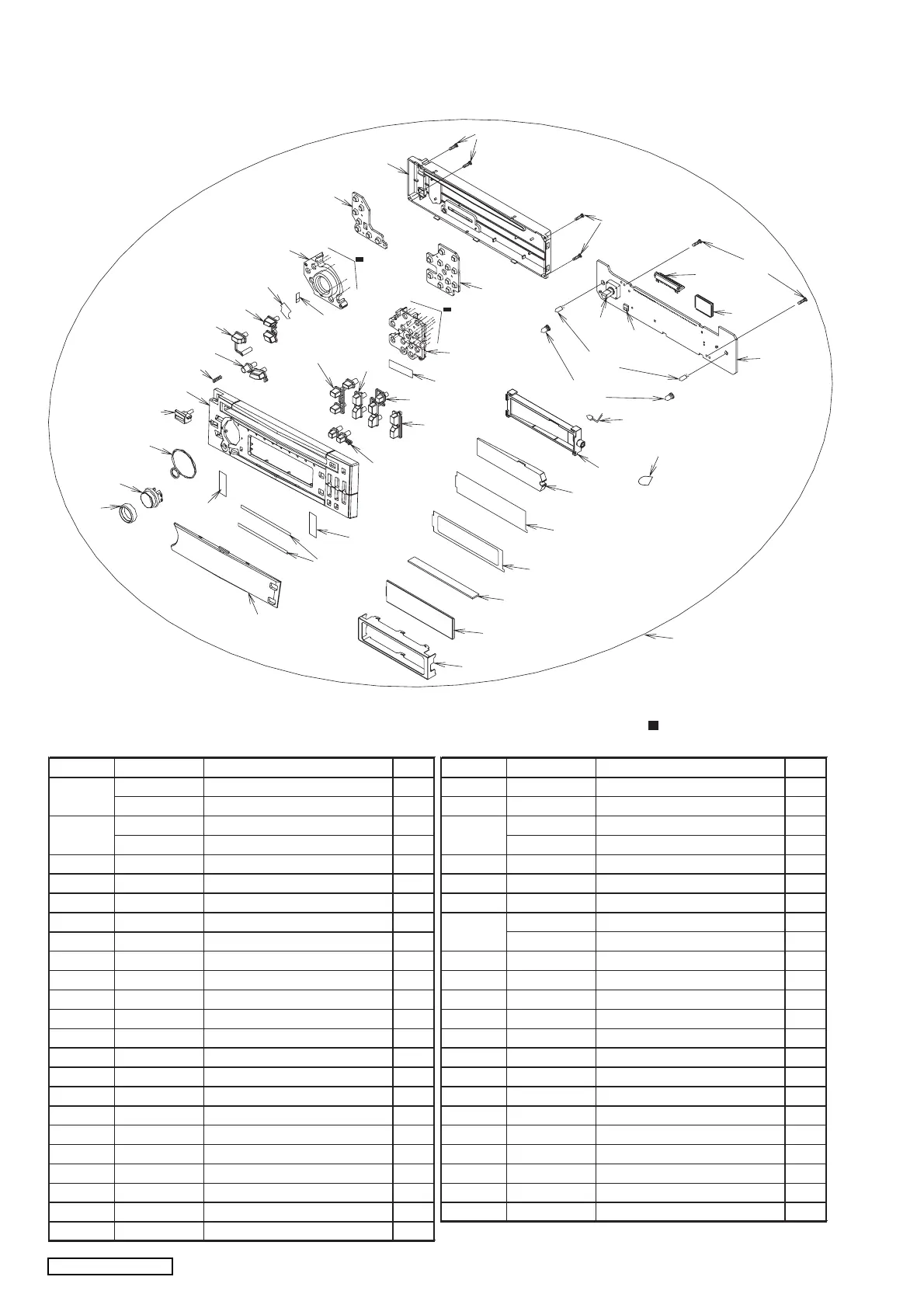

EXPLODED VIEW PARTS LIST
DCP section
/
-6-
DB265MP/DB266MP
B
B
B
B
B
B
B
B
A
A
A
A
A
B
B
B
B
: SANKOL application
