33
18
20
19
21
22
5
6
12
7
11
8
4
3
1
15
16
17
2
35
10
39
13
14
9
37
35
36
35
31
30
31
30
31
32
29
27
28
26
23
25
24
38
30
34
30
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1
331-4312-00
EARTH PLATE 1
21 370-6027-02 ESCUTCHEON(I) 1
2
331-3935-00
IC HOLDER 1
22 780-2607-52 SCREW(M2.6x7) 2
3 092-4000-51 ANT-RECEPT 1
23 335-5915-01 HOOK 1
4 880-2090B TUNER 1
24 382-4078-00 BUTTON (P-OUT) 1
5 013-6103-00 TACT SWITCH 1
25 750-3173-00 SPRING 2
6 ------------ MAIN PWB 1
26 750-3219-00 SPRING(F-HOOK) 1
7 074-1217-50 OUTLET SOCKET(12P) 1
27 331-2594-00 HOOK PLATE 1
8 074-1214-00 OUTLET SOCKET(16P) 1
28 716-0778-50 WAVE SCREW(M2x6) 2
9 331-3561-03 CONNECTOR-HOLD 1
29 341-1627-00 SHAFT 1
10 855-5426-53 RCA PIN CORD 1
30 714-2603-89 MACHINE SCREW(M2.6x3) 4
11 074-1138-60 OUTLET SOCKET(15P) 1
31 347-7954-00 FILM 3
12 074-1138-65 OUTLET SOCKET(10P) 1
32
929-5003-80 CD-MECH-MODULE
1
13 347-7536-00 FILM 1
33
286-6744-00 SETPLATE(PE-2793B-A)
1
14 347-7535-00 FILM 1
286-6819-00 SETPLATE(PE-2793K-A)
1
15 051-3349-00 IC 1
286-6809-00 SETPLATE(PE-2794K-B)
1
16 051-2042-00 IC 1
34
310-1821-00 UPPER CASE
1
17 009-9006-70 CHOKE 1
35
714-3006-85 MACHINE SCREW(M3x6)
8
18 311-1859-02 LOWER CASE 1
36
714-2610-85 MACHINE SCREW(M2.6x10)
3
19 346-0194-00 LEATHER SHEET 1
37
313-1849-01 HEAT SINK
1
38
816-4010-50 FLAT WIRE
1
20 347-6880-01 INSULATOR 1
39
345-3799-20 RUBBER PART
2

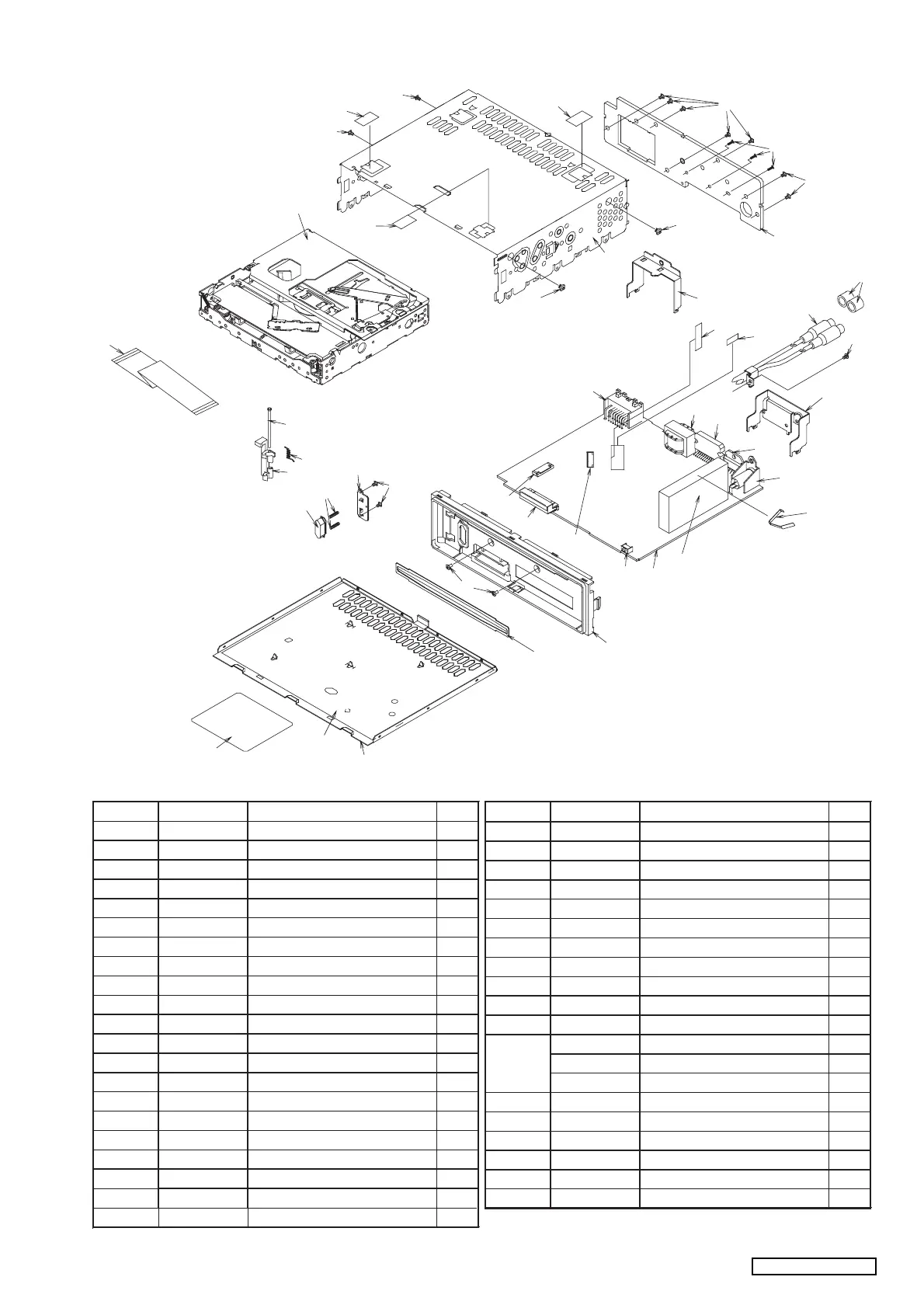

Main section
-7-
DB265MP/DB266MP
