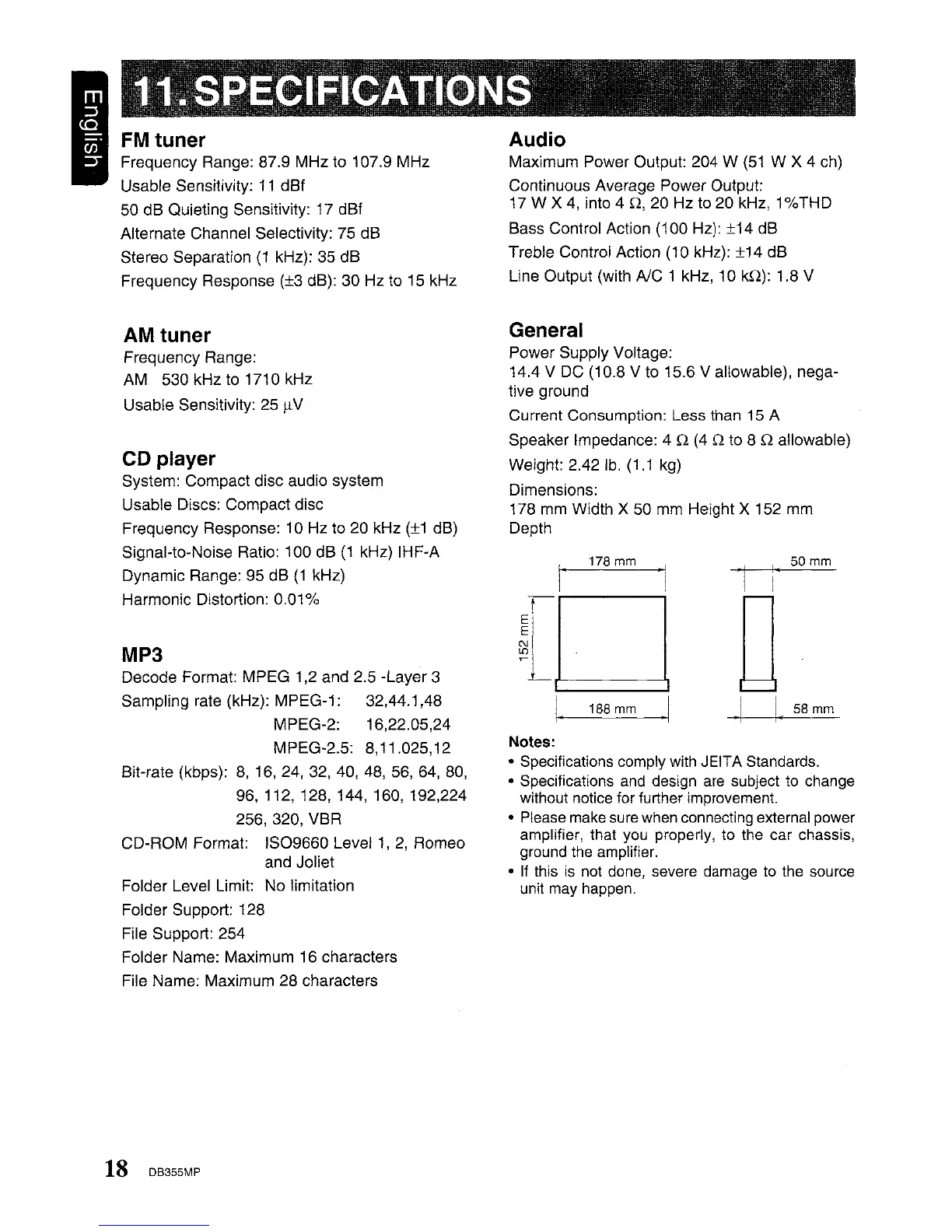

I
FM tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity:
11
dBf
50 dB Quieting Sensitivity: 17 dBf
Alternate Channel Selectivity: 75 dB
Stereo Separation
(1
kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
Audio
Maximum Power Output: 204 W
(51
W X 4 ch)
Continuous Average Power Output:
17 W X
4,
into 4
n,
20 Hz to 20 kHz, 1%THD
Bass Control Action (100 Hz): ±14 dB
Treble Control Action (10kHz): ±14 dB
Line Output (with
NC
1 kHz, 10 kQ): 1.8 V
Notes:
• Specifications comply
with
JEITA Standards.
• Specifications
and
design are subject
to
change
without notice for further improvement.
• Please
make
sure
when
connecting external power
amplifier, that
you
properly, to the car chassis,
ground the amplifier.
•
If
this
is
not
done,
severe damage
to
the source
unit
may
happen.
General
Power Supply Voltage:
14.4 V DC (10.8 V to 15.6 V allowable), nega-
tive ground
Current Consumption: Less than
15
A
Speaker Impedance: 4
Q.
(4
Q. to 8 Q allowable)
Weight: 2.42
lb.
(1.1
kg)
Dimensions:
178 mm Width X
50
mm Height X 152 mm
Depth
50mm
AM tuner
Frequency Range:
AM 530 kHz to 1710 kHz
Usable Sensitivity: 25 flV
CD player
System: Compact disc audio system
Usable Discs: Compact disc
Frequency Response:
10
Hz to 20 kHz
(±1
dB)
Signal-to-Noise Ratio: 100 dB
(1
kHz) IHF-A
Dynamic Range:
95
dB
(1
kHz)
Harmonic Distortion: 0.01%
MP3
Decode
Format
MPEG 1,2 and 2.5 -Layer 3
Sampling rate (kHz): MPEG-1: 32,44.1,48
MPEG-2: 16,22.05,24
MPEG~2.5:
8,11.025,12
Bit-rate (kbps):
8,
16,
24,
32,
40,
48,
56, 64,
80,
96, 112, 128, 144, 160, 192,224
256, 320, VBR
CD-ROM Format:
IS09660
Level
1,
2,
Romeo
and Joliet
Folder Level Limit: No limitation
Folder Support: 128
Flie Support: 254
Folder Name: Maximum 16 characters
File Name: Maximum
28
characters
18 DB355MP
178mm
1 i
o
-.J+-_+--
5
_
8
_
m
_
m
_
