DB568RUSB
Notes:
Specifications comply with JEITA Standards.
Specifications and design are subject to change
without notice for further improvement.
Please make sure when connecting external power
amplifier, that you properly, to the car chassis,
ground the amplifier.
If this is not done, severe damage to the source
unit may happen.
General
Power Supply Voltage:
14.4 V DC
(
10.8 V to 15.6 V allowable
)
, nega-
tive ground
Current Consumption: Less than 15 A
Speaker Impedance: 4 Ω
(
4 Ω to 8 Ω allowable
)
Weight: 2.42 lb.
(
1.1 kg
)
Dimensions:
178 mm Width X 50 mm Height X 152 mm
Depth

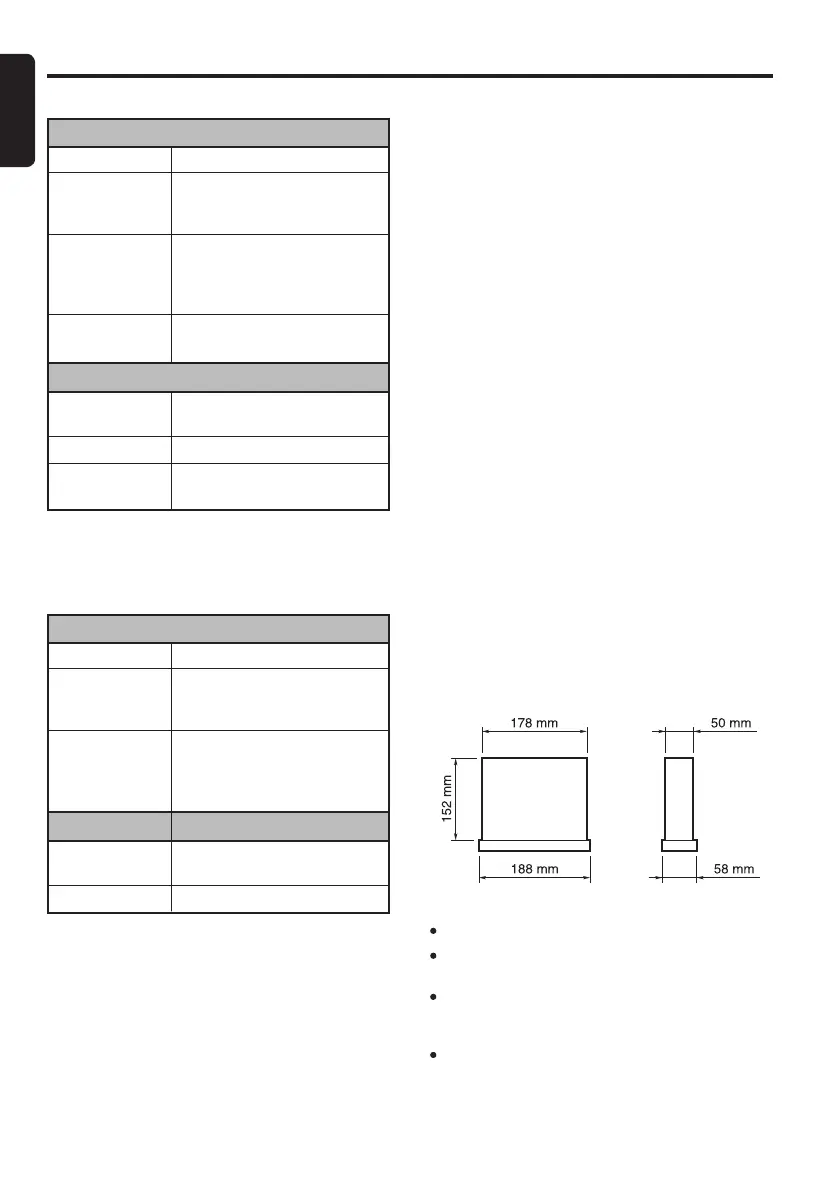

Specifications
CD
Decode Format
Sampling rate
(
kHz
)
Bit-rate
(
kbps
)
CD-ROM
Format
MP3
MPEG 1, 2 and 2.5 - Layer 3
MPEG-1 : 32, 44.1, 48
MPEG-2 : 16, 22.05, 24
MPEG-2.5 : 11.025, 44.1
MPEG-1 : 32 - 320
MPEG-2 : 8 - 160
MPEG-2.5 : 8 - 160
VBR
ISO 9660 Level 1, 2, Romeo
and Joliet
WMA
22.05 - 44.1
48, 64, 80, 96, 128, 160, 192
ISO 9660 Level 1, 2, Romeo
and Joliet
Sampling rate
(
kHz
)
Bit-rate
(
kbps
)
CD-ROM
Format
Audio
Maximum Power Output: 200 W
(
50 W X 4 ch
)
Power Output: 4 X 25 W
(
DIN 45324,
+
B
=
14.4 V
)
Bass Control Action
(
100 Hz
)
: ±14 dB
Treble Control Action
(
10 kHz
)
: ±14 dB
Line Output
(
with A/C 1 kHz, 10 k
Ω
)
: 1.8 V
Common in MP3/WMA Disc and
USB drive
Folder Level Limit : 8 Level
Folder Support : 255
File Support : 255
Folder Name : Maximum 28 bytes
File Name : Maximum 28 bytes
USB
Decode Format
Sampling rate
(
kHz
)
Bit-rate
(
kbps
)
MP3
MPEG 1, 2 and 2.5 - Layer 3
MPEG-1 : 32, 44.1, 48
MPEG-2 : 16, 22.05, 24
MPEG-2.5 : 8, 11.025, 12
MPEG-1 : 32 - 320
MPEG-2 : 8 - 160
MPEG-2.5 : 8 - 160
VBR
WMA
8, 11.025, 16, 22.05, 32,
44.1
48, 64, 80, 96, 128, 160, 192
Sampling rate
(
kHz
)
Bit-rate
(
kbps
)
USB 1.1 and 2.0 compatible with a maximum
transfer rates of up to 12Mbps.
(
Full speed
)

Clarion DB568RUSB Specifications

General

Brand	Clarion
Model	DB568RUSB
Category	Car Receiver
Language	English
