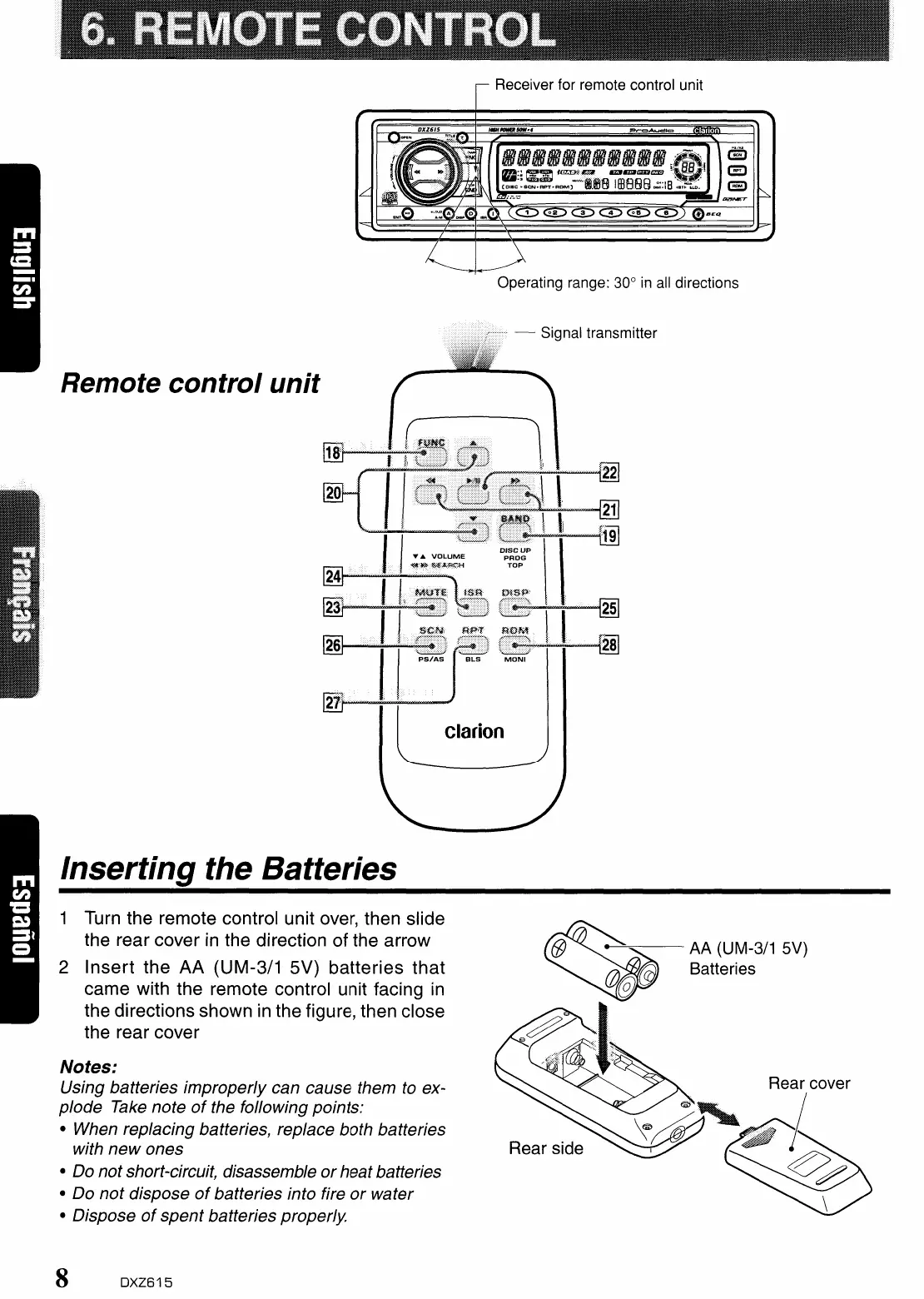

Operating range: 30°
in
all
directions
- Signal transmitter
Receiver for remote control unit
Remote control unit
20
:
~
.[gID
~
clarion
Inserting the Batteries
1 Turn the remote control unit over, then slide
the rear cover
in
the direction of the arrow
2 Insert the AA (UM-3/1 5V) batteries that
came with the remote control unit facing
in
the directions shown
in
the figure, then close
the rear cover
Notes:
Using batteries improperly can cause them
to
ex-
plode
Take
note
of
the following points:
• When replacing batteries, replace both batteries
with new ones
• Do not short-circuit, disassemble orheat batteries
• Do not dispose
of
batteries into fire
or
water
• Dispose
of
spent batteries properly.
Rear
side
AA (UM-3/1 5V)
Batteries
Rear cover
~.~
f
"fa
#
,
</~
\
8 DXZ615
