4. OPERATIONS
DCP (Detachable Control Panel)

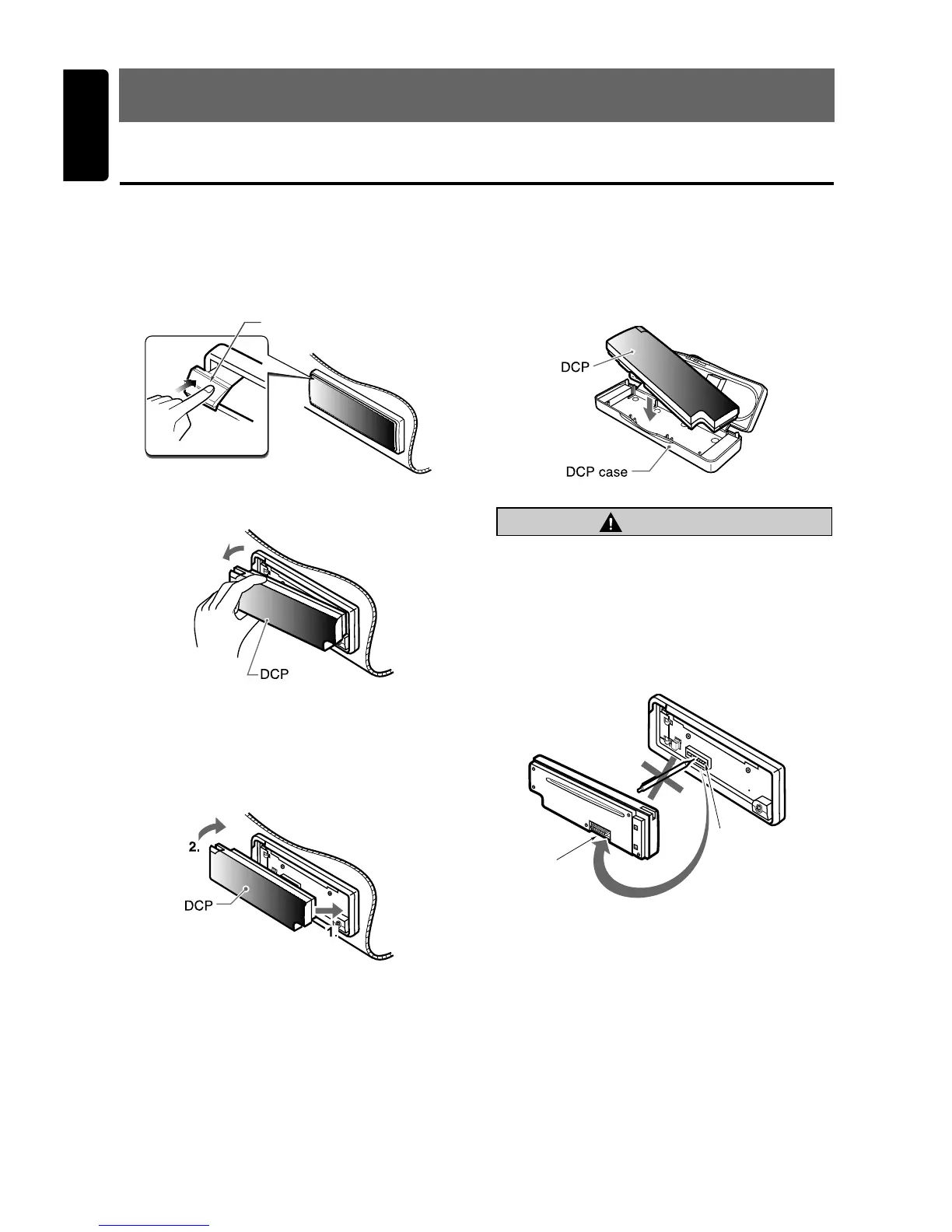

Removing the DCP
1. Press the [SRC] button for 1 second or longer
to switch off the power.
2. Press the [RELEASE] button.
3. Remove the DCP.
Attaching the DCP
1. Insert the right side of the DCP into the source
unit.
2. Insert the left side of the DCP into the source
unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct
orientation.)
CAUTION
• The DCP can be damaged by impact. After
removing it, be careful not to drop or
subject it to strong shocks.
• The connector connecting the source unit
and the DCP is an extremely important part.
Be careful not to damage it by pressing on
it with fingernails, screwdrivers, etc.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
[RELEASE] button
Source unit
connector
DCP
connector
DCP Rear Panel
Source Unit Front
