Switch to Previous/next file
Touch [ ] or [ ] button during playback to play
previous /next le.
• Touch [
] button to starts playback from the
beginning of the next track.
• Touch [
] button to starts playback from the
beginning of the current track; when this button is
touched again within about 5 seconds, playback
starts from the beginning of previous track.
Repeat Playback
* The repeat set as the factory default is Repeat All.
Touch the [
] button once for Repeat Track, again
for Repeat Folder, again for Repeat All.
Skip Using Seek Bar
Touch the on seek bar and drag it to any position
where you want to start playback.

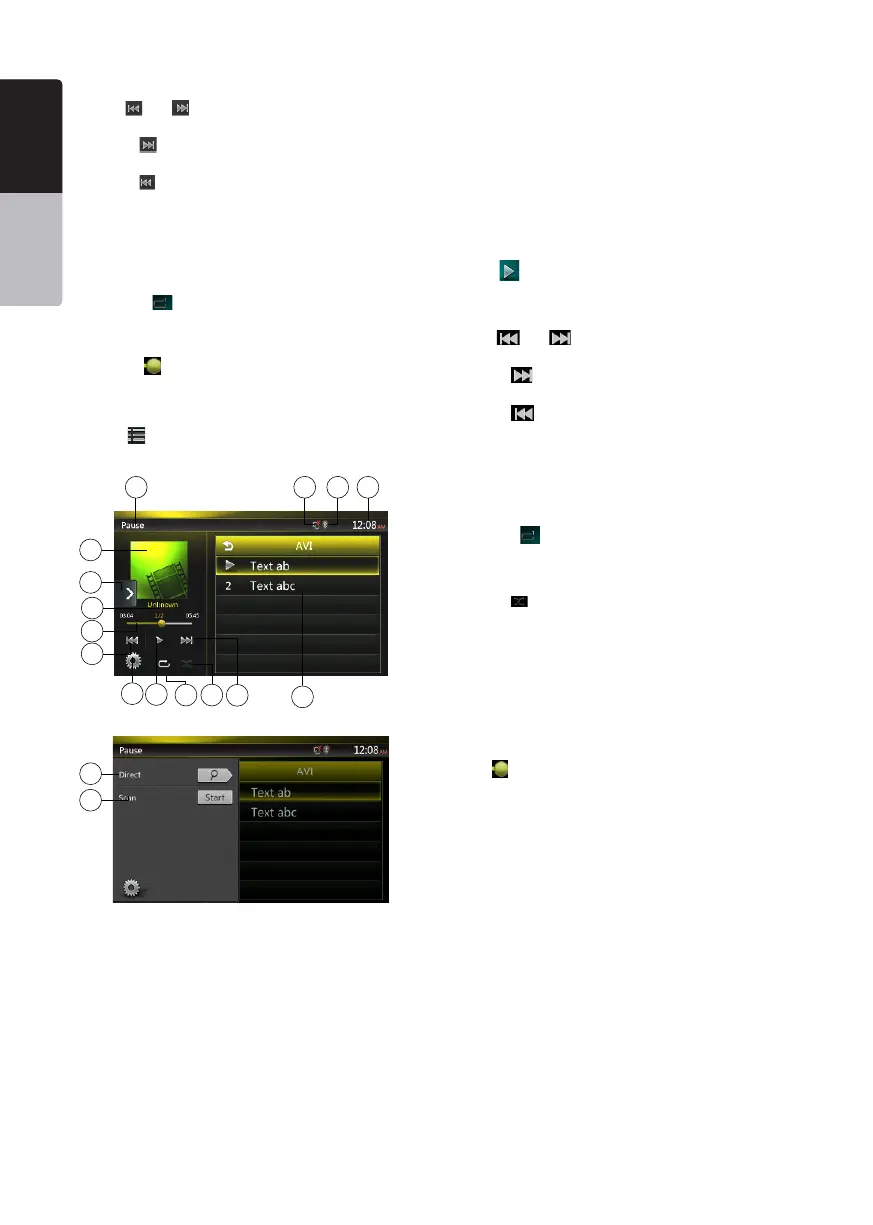

Switching USB Video Menu
Touch [ ] button playback will be paused, and the
screen will switch to USB Video List.
1 - Option button
2 - Play/Pause button
3 - Previous Track /Fast Backward button
4 - Next Track/Fast Forward button
5 - Repeat button
6 - Shufe button
7 - Video les in list
8 - System time
9 - Bluetooth status indicator
10 - Mute status indicator
11 - Playback status information
12 - Album Art
13 - Shortcut button
14 - Current le information area
15 - Elapsed playing time indicator/Seek bar
16 - Direct button
17 - Scan button
Play/Pause Playback
*On USB Video menu screen, playback status is
pause.
Touch [
] button to resume playback. The screen
will go to video screen automatically.
Switch to Previous/next file
Touch [ ] or [ ] button during playback to play
previous /next le.
• Touch [
] button to starts playback from the
beginning of the next track.
• Touch [
] button to starts playback from the
beginning of the current track; when this button is
touched again within about 5 seconds, playback
starts from the beginning of previous track.
Repeat Playback
* The repeat set as the factory default is Repeat All.
Touch the [
] button once for Repeat Track, again for
Repeat Folder, again for Repeat All.
Shuffle Playback
1. Touch [ ] button to shufe the tracks in playing
folder during playback.
2. Touch this button again to turn off the feature.
Current File Information Area
This area displays information of current video le: le
name, number of current le/total number in current
folder, Elapsed playing time/total time of current le.
Skip Using Seek Bar
Touch on seek bar and drag it to any position
where you want to start playback.
Select a Folder on Display List
This operation is same as this in USB Audio mode.
Selecting a Track on the Display List
This operation is same as this in USB Audio mode.
Scanning the Tracks
This operation is same as this in USB Audio mode.
Searching with the Track Number
This operation is same as this in USB Audio mode.
12
3
5
6
4
7
2
1
13
8910
11
14
15
16
17
