NX501/NZ501
65
English
English
Owner’s Manual
Black
English
NX501/NZ501 61
English
Owner’s Manual

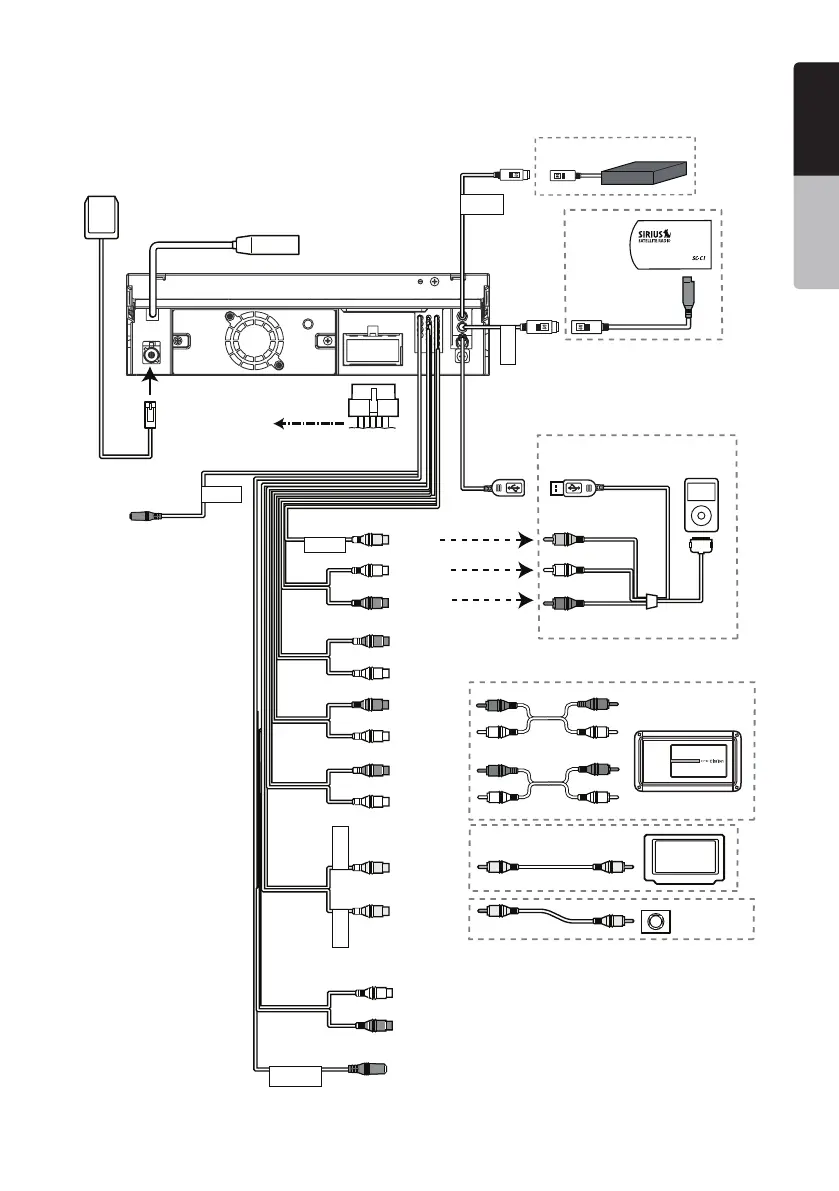

Radio Antenna Jack
4-Channel Amplifier
Line Out
Subwoofer
Line Out
Rear R
Line Out
Rear L
Line Out
Front R
Line Out
Video Out
Front L
Video
Audio/R
Audio/L
Video Out
Camera
Yellow
White
White
Red
Red
Red
White
Yellow
Purple
Gray
Gray
Red
Black
Black
Black
White
Connector
Cable
Steering Wheel
Remote Control Terminal
SIRIUS
Yellow
Monitor
CCA-748 (sold separately)
Yellow
White
Red
Red
Audio/R
Audio/L
Red
White
Green
GPS
Antenna
External
Microphone
Connection
HD Radio
HD Radio™ Tuner (THD400)
SIRIUS CONNECT VEHICLE
TUNER
NZ501
Refer to
page 62
EX MIC
HD
Sirius
Sirius Connect™
Vehicle Tuner
(SCC1)
iPod/iPhone
Rear Vision Camera
SWI
CAMERA
VIDEO OUT
VISUAL IN
NZ501
Refer to
page 66
