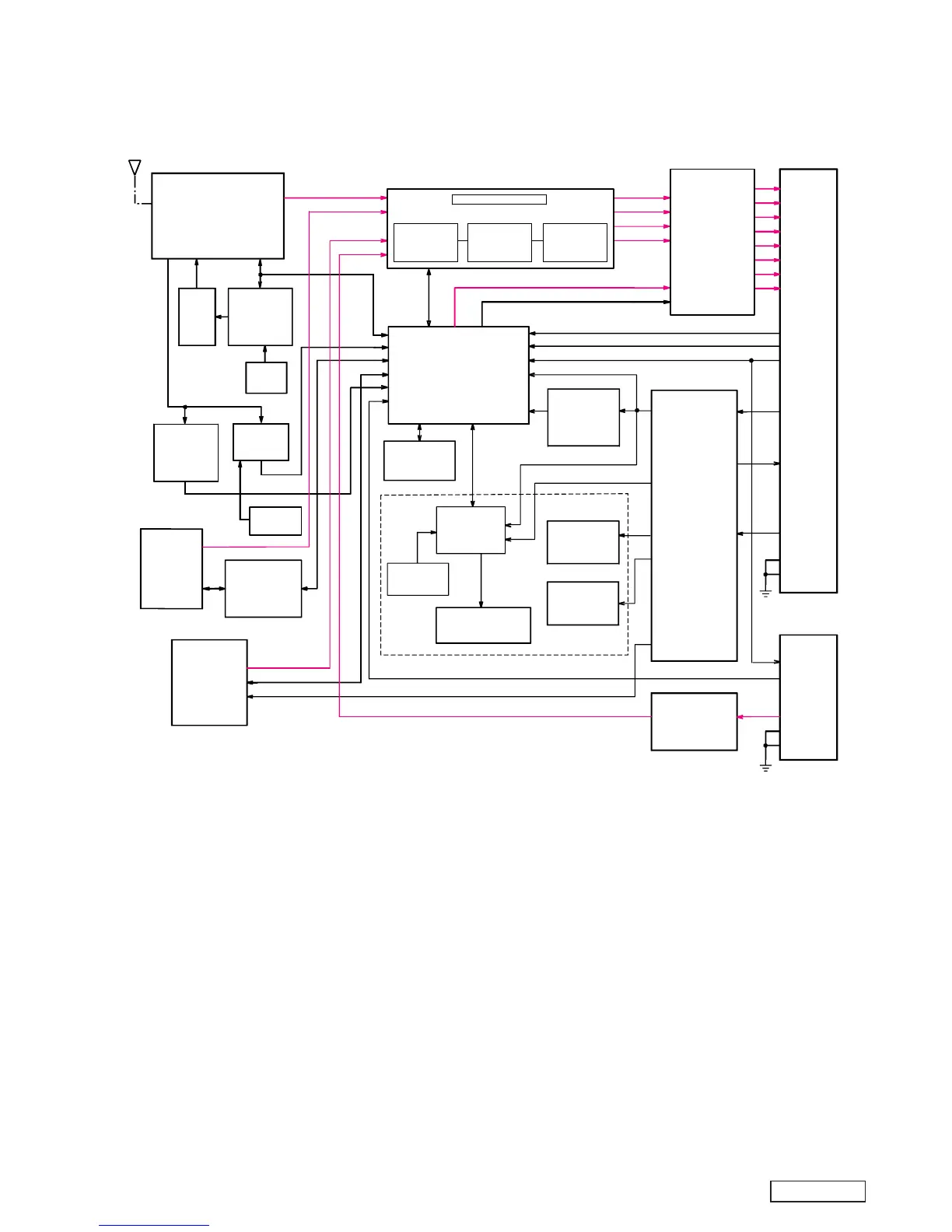

BLOCK DIAGRAM
Main section
BL101
TA8276H
AM/FM
BUS
CD
FL
FR
RL
RR
BUS(+)(-)
TEL-ON
ACC
NJM2103M
RESET IC
B/U-DET,
B/U
A-ANT
ILL+
GND
S.R-GND
BEEP
CE-NET
R-OUT
L-OUT
R-OUT
L-OUT
LPF
PLL-IC
SYSTEM CONTROL MICOM
ILLUMI
INDICATOR
BUS DRIVER
POWER SUPPLY
L-OUT(+)(-)
R-OUT(+)(-)
MUTE,ST-BY
FL(+)
FL(-)
RL(+)
RL(-)
RR(+)
RR(-)
FR(+)
FR(-)
BUFFER
IC121
LC72146M
IC504
HA12187FP
S.R-1
TEL/AUX
TEL
/AUX-L/R
ACC
GND
S-GND
IC351
NJM4558V
KEY-SWITCH
IC501
M30622MGP
MAIN-POWER IC
IC391
TEL/AUX
CONNECTOR
LCD&KEY
-DRIVER
NJU6625
J801(20PIN)
J721(8PIN)
LW/MW/FM TUNER
J701(13PIN)
X'TAL
7.2MHz
X'TAL:10MHz
IC502
EEP-ROM
BACK-LIGHT
IC503
BR93L46F
6CD-MECH
NJM2388F84
IC100
LCD100
J241
VCC+5V:Q506
SYS+5V:Q502
VLCD+6.3V:Q761
ANT+B:Q711
B/L+B:Q771
ILL+B:Q821
AUDIO+8V:IC741
PL104-PL111
D100-D108
SW-PWB
RDS
RDS
IC151
NJM4558
NOISE-DET
IC152
SAA6581T
X'TAL
4.332MHz
PL100-PL102
NJM2396F09
CD+9V:IC272
NJU7780U1-33
VDD+3.3V:IC241
SYS+3.3V:Q241
CD+9V
VDD+3.3V
ELECTRIC VOLUME IC
IC401
INPUT
SELECTOR
CAR VELOCITY
BASS/TREBLE
FEDER
VOLUME
LOUDNESS
LOUDNESS
CL7639V20
SPEED
* Improvement feature
Do not hear it easily because of the running car noise, and it responds at the speed of the car
and it changes low and high frequeency gain.
