PS-3025K-A,B
- 6 -
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
M5x8mmMAX
23
4
22
24
27
25
6
5
7
11
9
12
14
3
2
1
10
8
18
17
25
28
28
25
25
25
25
25
25
25
25
14
28
19
20
21
15
15
16
25
25
25
25
25
25
25
26
28
28
28
28
28
26
13
1 076-3011-74 PLUG(24P) 1
2 074-1237-69 OUTLET SOCKET 1
3 073-0762-90 TERMINAL 5
4 311-1919-02 LOWER CASE 1
5 331-4126-00 TR HOLDER 1
6 313-1966-00 SUB HEAT SINK 1
7 331-4127-00 REAR PLATE 1
8 074-1194-00 OUTLET SOCKET 1
9 074-1302-08 OUTLET SOCKET 1
10 074-4007-20 OUTLET SOCKET 1
11 092-0702-00 ANT-RECEPT 1
12 941-0215-80 TUNER PACK 1
13 --------------- Main PWB 1
14 778-3006-00 TAP-SCREW(3x6) 4
15 716-3552-00 IT SCREW(M2.3x2.5) 6
16 309-0819-10 ES PLATE 1
17 285-1960-00 GUIDE LABEL 1
18 816-4024-50 FLAT WIRE 1
19 929-0374-81 CD-MECH-MODULE 1
20 331-4091-10 CD BRKT(L) 1
21 331-4092-10 CD BRKT(R) 1
22 310-1826-10 UPPER CASE 1
23 286-6186-19 SETPLATE 1
24 313-1962-00 HEAT SINK 1
25 714-2606-8B MACHINE SCREW(M2.6x6) 20
26 331-4193-20 SU-PLATE 2
27 714-2610-89 MACHINE SCREW(M2.6x10) 2
28 716-0878-50 IT SCREW(M2.6x5) 11

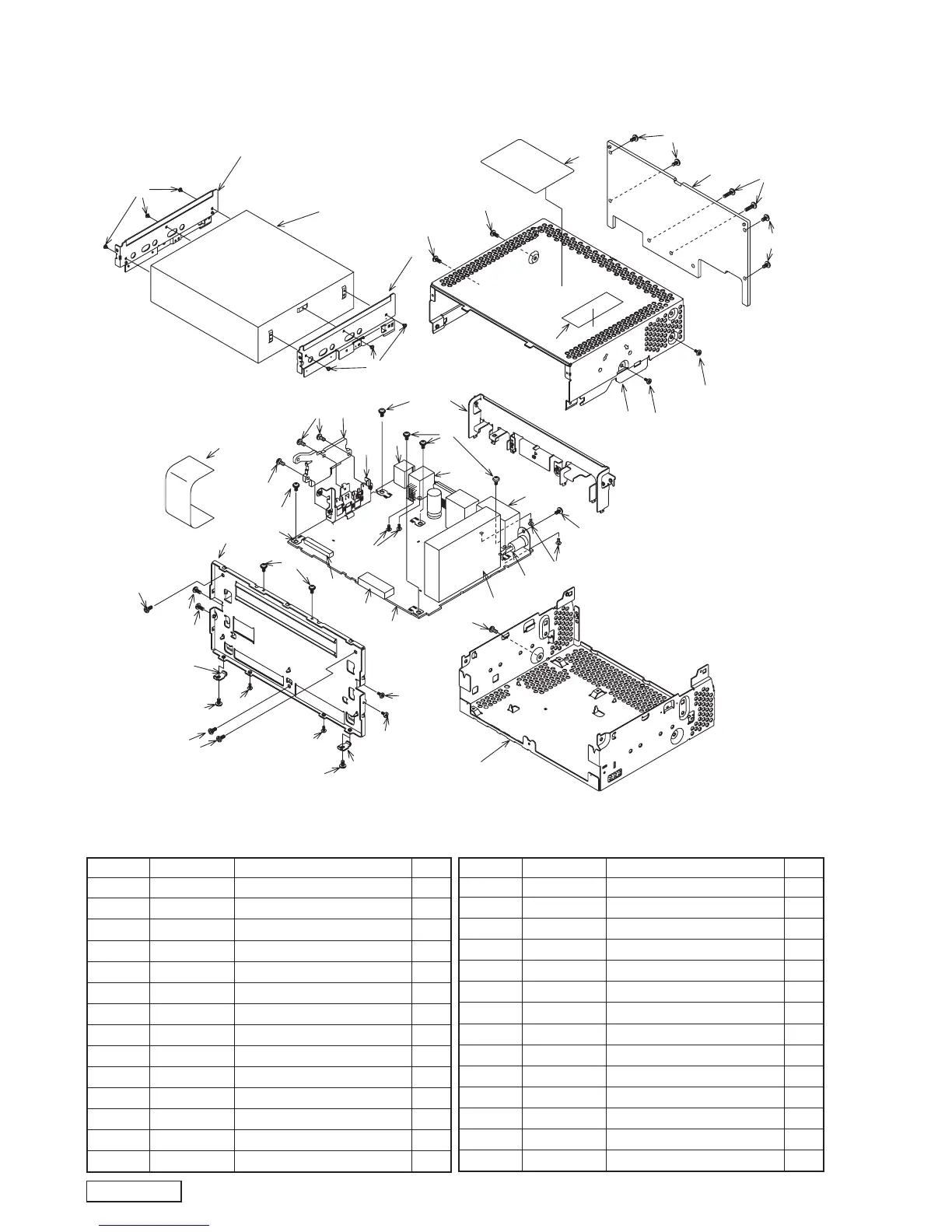

EXPLODED VIEW/PARTS LIST
Main section
Clamping torque value of a screw is 0.4 +0.08/-0.08 Newton meter.
