Clarion UNGO ProSecurity S100 User Manual

12
shock sensor harness, 4-pin WHITE plug
GREEN (-) Multiplex Input
Inputs shorter than 0.8 seconds will trigger the warning response, while inputs longer than 0.8 seconds
will trigger full alarm sequence and report Zone 4.
NNOOTTEE::
If installing an optional dual-stage sensor, connect to the GREEN wire. The following diagram elim-
inates the need for diodes to isolate the sensors, as well as providing a separate zone for each sensor.

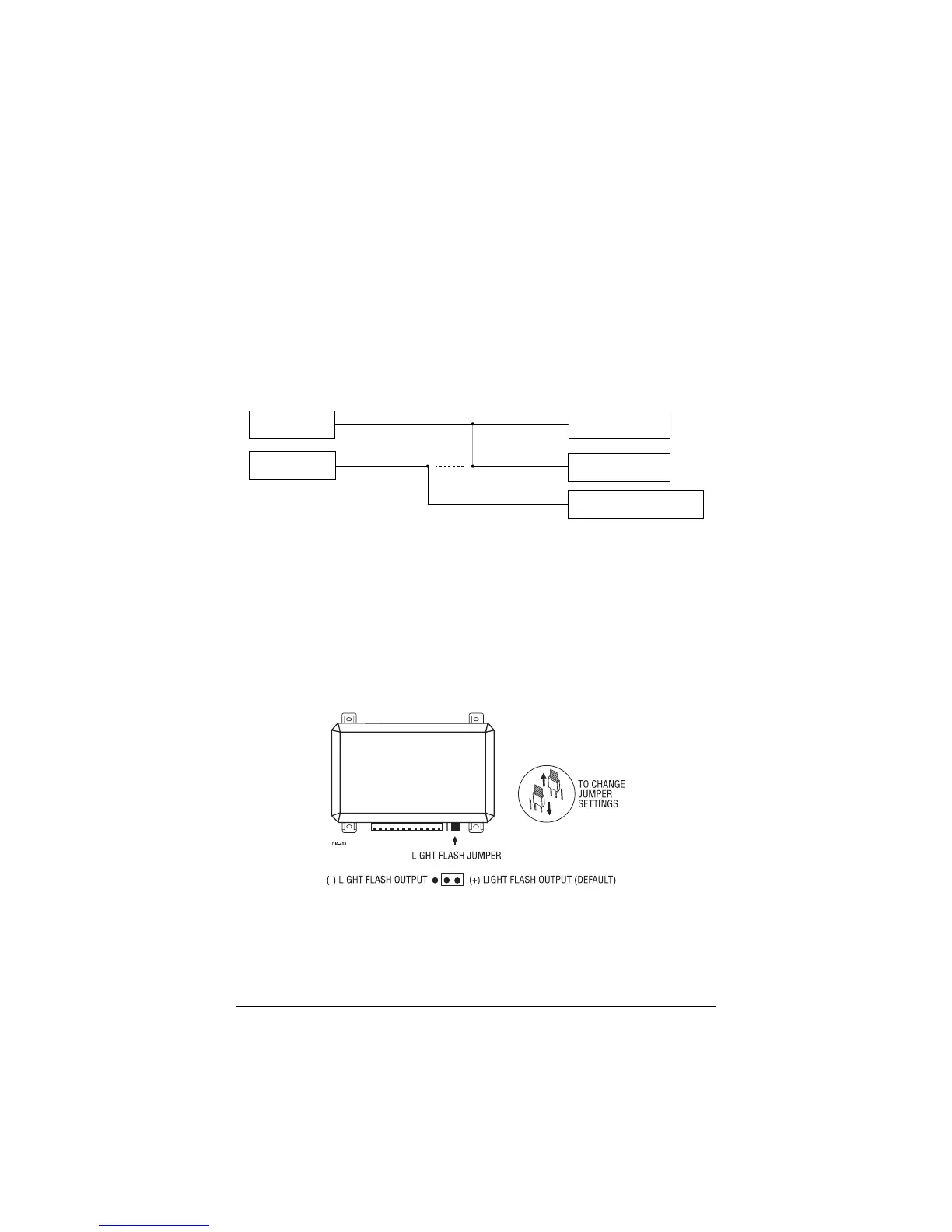

Diagram for adding optional dual stage sensor to GREEN wire (zone 4).
BLUE (-) Multiplex Input
Inputs shorter than 0.8 seconds will trigger the Warning response, while inputs longer than 0.8 sec-
onds will trigger full alarm sequence and report Zone 2.
RED (+) 12V Constant and BLACK (-) Ground
Do not use these for anything besides the plug-in shock sensor.
programming jumper
BLUE WIRE OF
PRE-WIRED PLUG
GREEN WIRE OF
PRE-WIRED PLUG
BLUE WIRE FROM PLUG-IN
SHOCK SENSOR
BLUE AND GREEN WIRES
FROM DUAL STAGE SENSOR
GREEN WIRE FROM
PLUG-IN SHOCK SENSOR
XX
CUT
