33VX404E
English
English
Quick start guide
Cautions on Wiring
1. Be sure to turn the power o before wiring.
2. Be particularly careful where you route the wires.
Keep them well away from the engine, and exhaust pipe, etc. Heat may
damage the wires.
3. If the fuse should blow, check to see if the wiring is correct.
If a fuse is blown, replace it with a new one of the same amperage rating
as the original (15A FUSE).

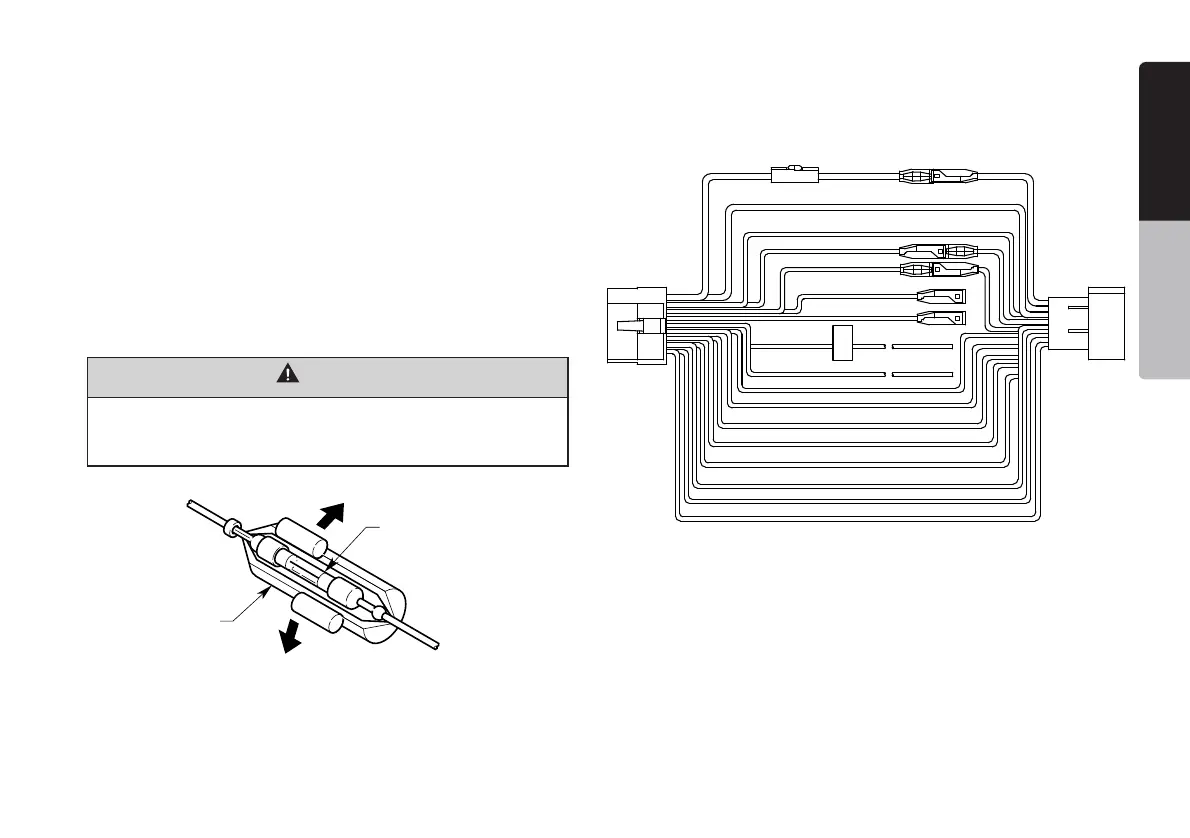

4. To replace the fuse, remove the old fuse on the back of the unit and
insert the new one. (Figure 7)
NOTE:
There are various types of fuse holder. Do not let the battery side touch other metal
parts.
CAUTION
After the connection, x the cord by a clamp or
insulation tape for protection.
Figure 7
Fuse (15A FUSE)
Fuse holder
Note:
*1: Connecting the PHONE MUTE terminal
It will mute the audio if the lead receives a negative or ground signal.
15A
BACKUPYellow
GNDBlack
ILLUMIOrange/White
AUTO ANTBlue
ACCRed
PHONE INTBrown
REMOTEBlue/White
PARKINGGrass-green
REVERSEPurple/White
RR-Purple/Black
RR+Purple
FR-Gray/Black
FR+Gray
FL+White
FL-
White/Black
RL+
Green
RL-Green/Black
!!!!Warning!!!!
Parking brake
safety device must
be connected for
complete operation
VX404E_QSG.indb 33 14.4.2014 14:47:58
