Connecting the parking brake cord

Connect the cord to parking brake lamp ground in the meter panel.

Note:

• Connecting the parking brake cord to lamp ground allows you to watch iPod/iPhone

video/DVD video/AV input when the parking brake is engaged.

• When the parking brake cord is not connected, the monitor will not show any video

sources.

• If “AUDIO ONLY” appears on the screen just after turning on the ACC power of the

car, release the parking brake while conrming safety, and then engage the parking

brake again.

Parking brake lamp

cord to battery

Electro-tap

Parking brake

Parking brake cord (Grass-

green)

Parking brake signal

cord

Stopper

Parking brake signal

cord

Parking brake cord

(Grass-green)

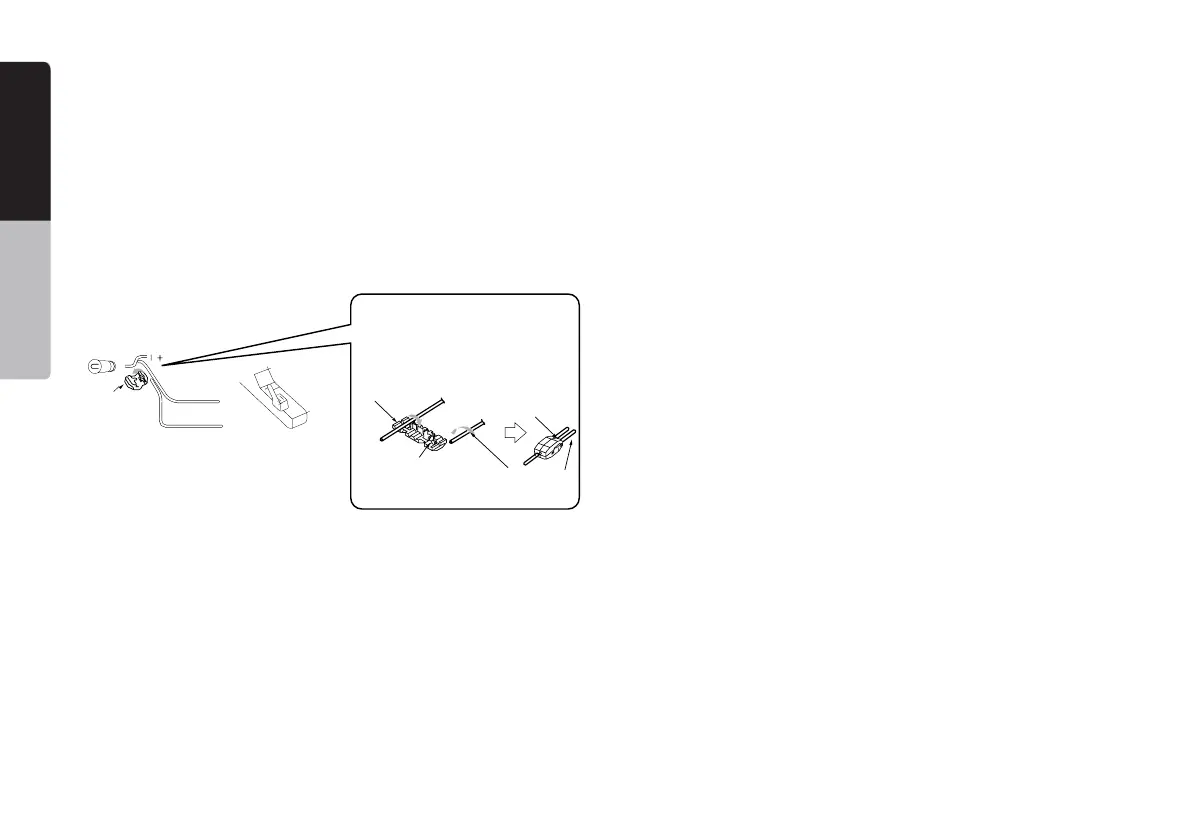

How to attach the electro-tap

1. Place the Parking brake cord at the stopper,

and fold it back in the direction of the arrow

2. Pass the Parking brake signal cord through,

and fold it back in the direction of the arrow.

Parking brake

signal cord
