Clarke 151EN - Page 27

27
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
Welding
Position
Wire Speed
Adjustment
0.6 mm Gas Welding Wire 0.8 mm Gas Welding Wire
AB C AB C
0.6 - 0.8 1 MIN 5 1 MIN 5
0.8 - 1.0 1 MIN 6 2 MIN 6
1.0 - 2.0 2 MIN 6 2 MAX 6
2.0 - 3.0 2 MAX 7 2 MAX 7
>3.0 2 MAX 7-8 2 MAX 7-8
STEEL
AB C
0.8 1 MIN 6
1.0 - 2.0 2 MIN 6
2.0 - 3.0 2 MAX 7-8
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
0.8 mm Gas Welding Wire
ALUMINIUM

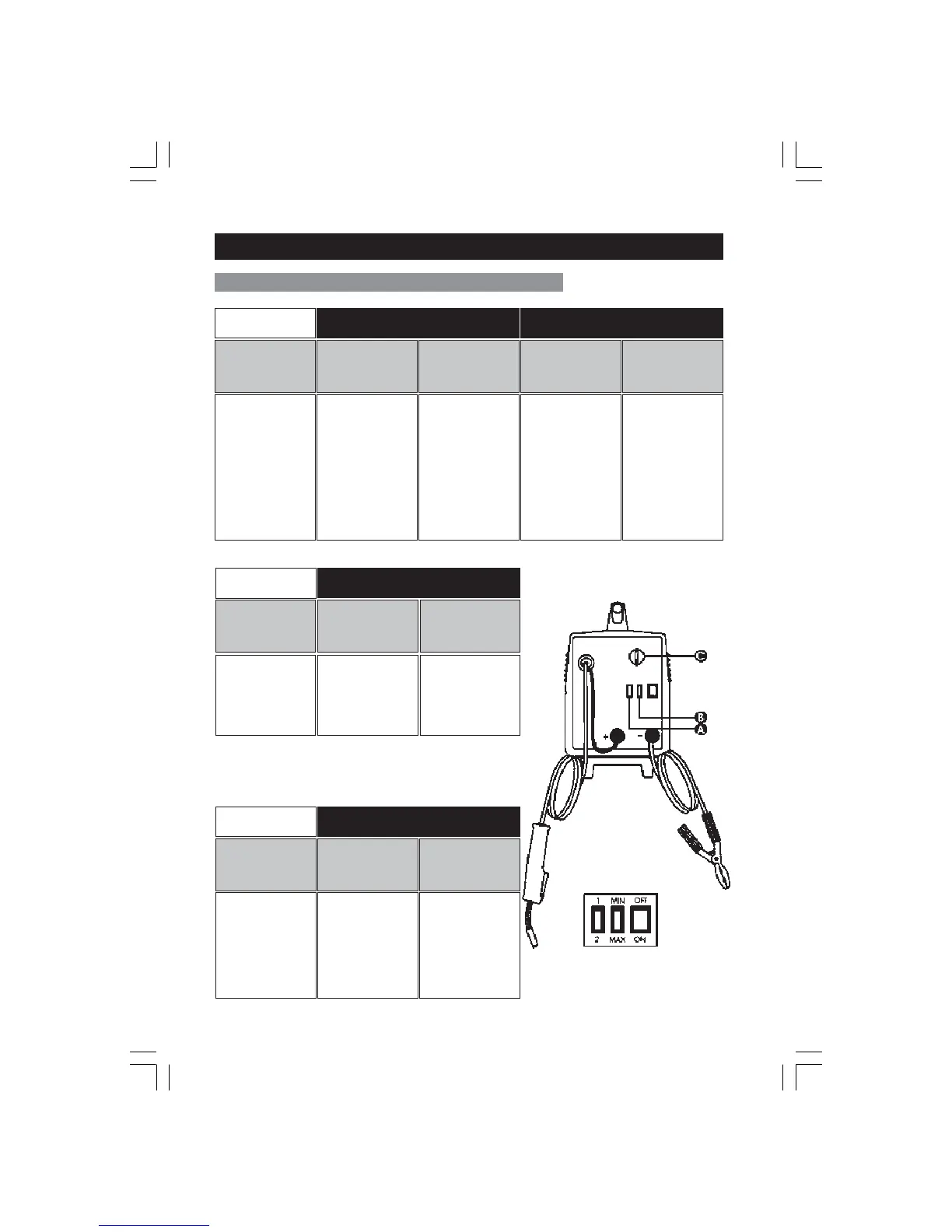

CONTROL SETTINGS - REFERENCE TABLES
B. MIGs 100EN & 105EN
AB C
0.6 - 0.8 1 MIN 5
0.8 - 1.0 2 MIN 6
1.0 - 1.2 2 MAX 6
1.2 - 2.0 2 MAX 7-8
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
0.9 mm Gas Welding Wire
SOFT STEEL
NO GAS
Connected for
GAS WELDING
