Clarke 151EN - Technical Data and Support; Control Settings Reference Tables

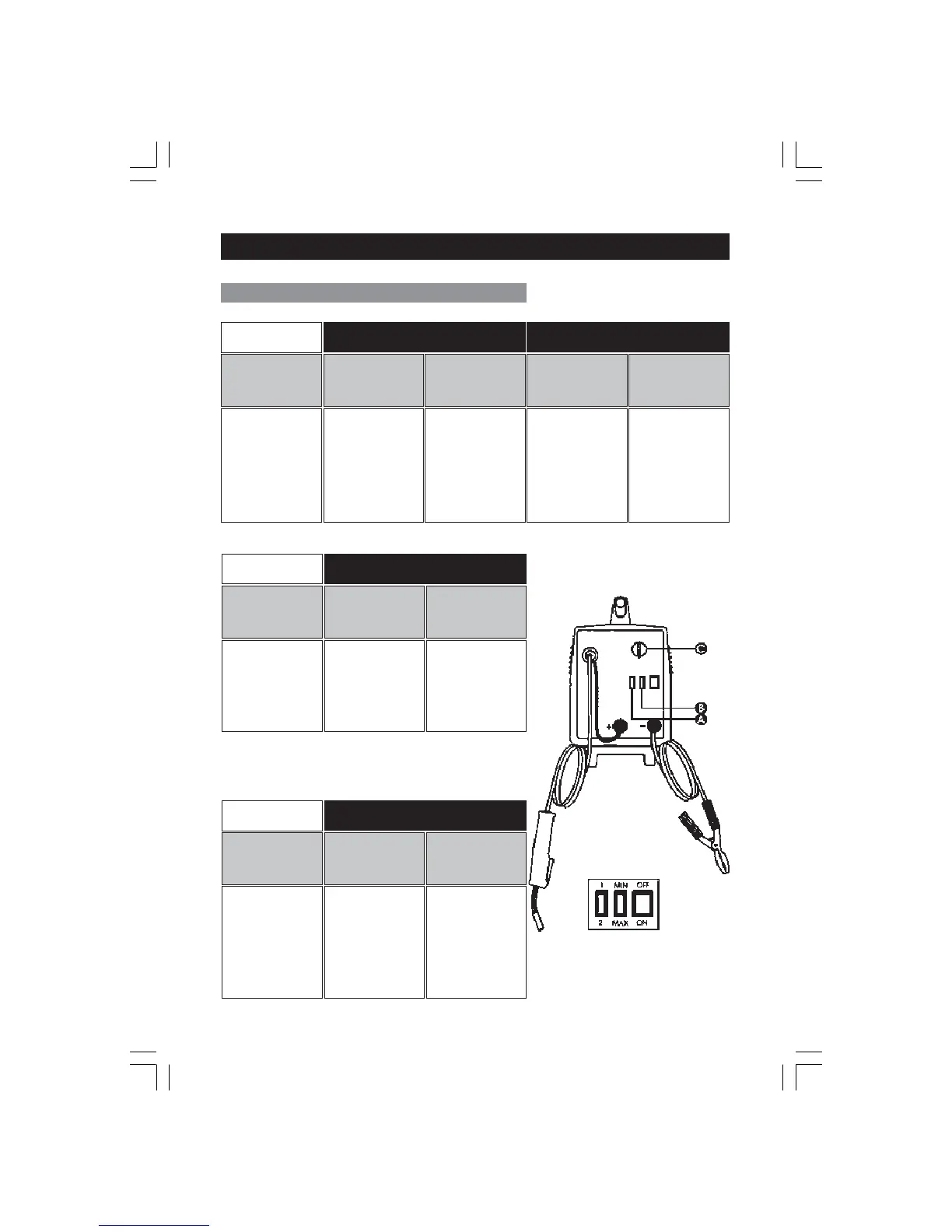

CONTROL SETTINGS - REFERENCE TABLES
A. MIG 90EN
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
Welding
Position
Wire Speed
Adjustment
0.6 mm Gas Welding Wire 0.8 mm Gas Welding Wire
AB C AB C
0.6 - 0.8 1 MIN 5 1 MIN 5
0.8 - 1.0 2 MIN 6 2 MIN 6
1.0 - 2.0 1 MAX 6 2 MAX 6
2.0 - 3.0 2 MAX 7-8 2 MAX 7-8
STEEL
AB C
0.8 1 MIN 7-8
1.0 -2.0 2 MIN 7-8
2.0 - 3.0 2 MAX 9
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
0.8 mm Gas Welding Wire
ALUMINIUM
AB C
0.6 - 0.8 1 MIN 5-6
0.8 - 1.0 2 MIN 5-6
1.0 - 1.2 2 MAX 6
1.2 - 2.0 2 MAX 7-8
Workpiece
Thickness
(mm)
Welding
Position
Wire Speed
Adjustment
0.9 mm Gas Welding Wire
SOFT STEEL
NO GAS
26
Connected for
GAS WELDING
