Clarke
®
Image Mini Spot

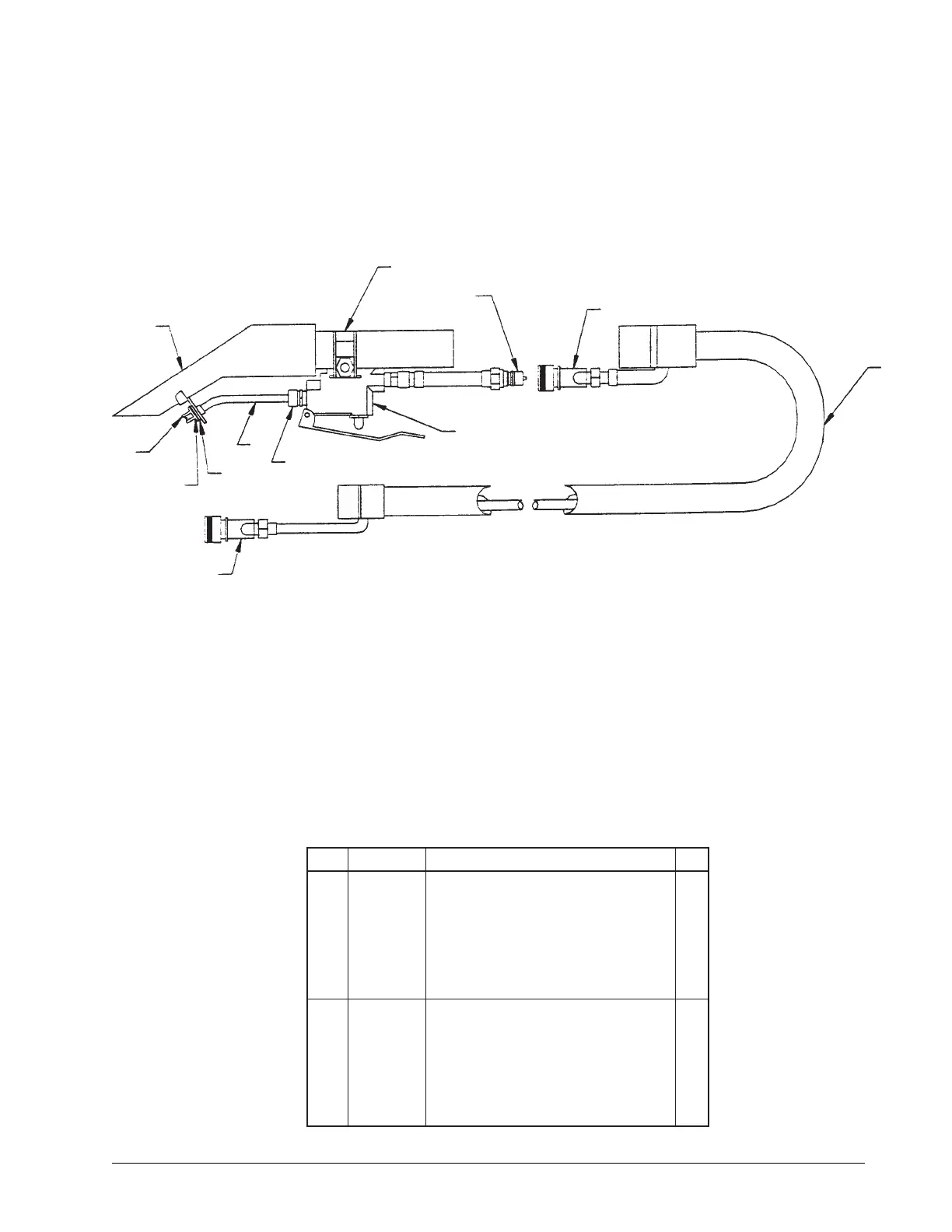

Hand Tool and Parts List
12/02
1
2
11
4
3
4
5
6
7
8
9
10
Ref. Part No. Description Qty
1 55179A Housing, Handtool Spotter 1
2 52983A Clamp DHT Valve 1
3 52984A Hose Asm. Hose/Cuff Connector 1
4 737141 Nipple, 1/8 FPT QD Fem. Brass 2
5 54177A Jet, Asm w/o Ring 1
6 962802 Screw, 8-32 x 1/4 PHST PLTD 1
7 57011A Plate, Retainer w/Screws 1
8 56123A Manifold, Spotter 3/16 1
9 54060A Fitting, 1/8 MPT x 3/16 Comp. 1
10 59618A Valve Asm., Spotter Plastic 1
11 737140 Nipple, 1/8 FPT QD Male Brass 1
Kit 59231R Spotter Hand Tool (entire asm. as kit) 1
Clarke
®
Operator's Manual - Image Mini Spot Page 5-6
