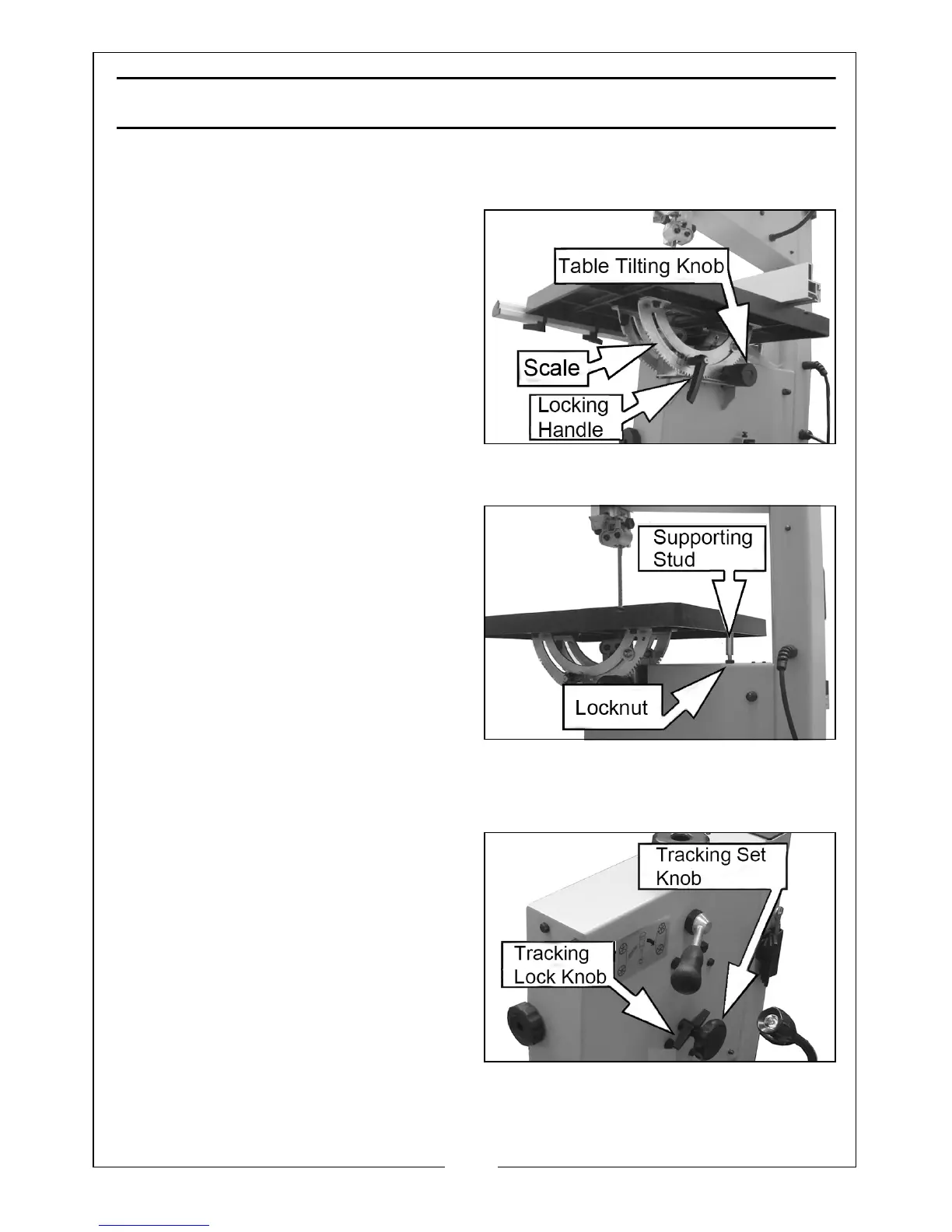

ADJUSTING THE PARTS
TILTING THE TABLE
1. Loosen the locking handle and
turn the table tilting knob to adjust
the table to the desired angle.
2. Use the angle indicator scale on
the table tilting bracket, to find
the desired angle.
3. Re-tighten the locking handle to
secure the table.
• For assured accuracy, we
recommend checking the tilt
angle using a protractor or set square.
4. With the table exactly level, it
should rest on the supporting stud
shown. Adjust the height of the
stud by screwing it in or out of the
frame and securing with the
locknut. Check with a set square
that the table is exactly level
when resting on the stud.
TRACKING THE SAW BLADE
If the saw blade does not run in the centre of the rubber tyre, the tracking
needs to be corrected by adjusting the tilt of the upper bandsaw wheel.
1. Open the upper and lower covers
by releasing the twist knobs.
2. Loosen the tracking knob and
manually rotate the upper wheel,
taking care of the sharp blade.
3. Turn the setting knob clockwise or
anticlockwise until the saw blade
tracks centrally on the rubber tyre.
4. After adjusting, retighten the
tracking lock knob and close the
covers.
