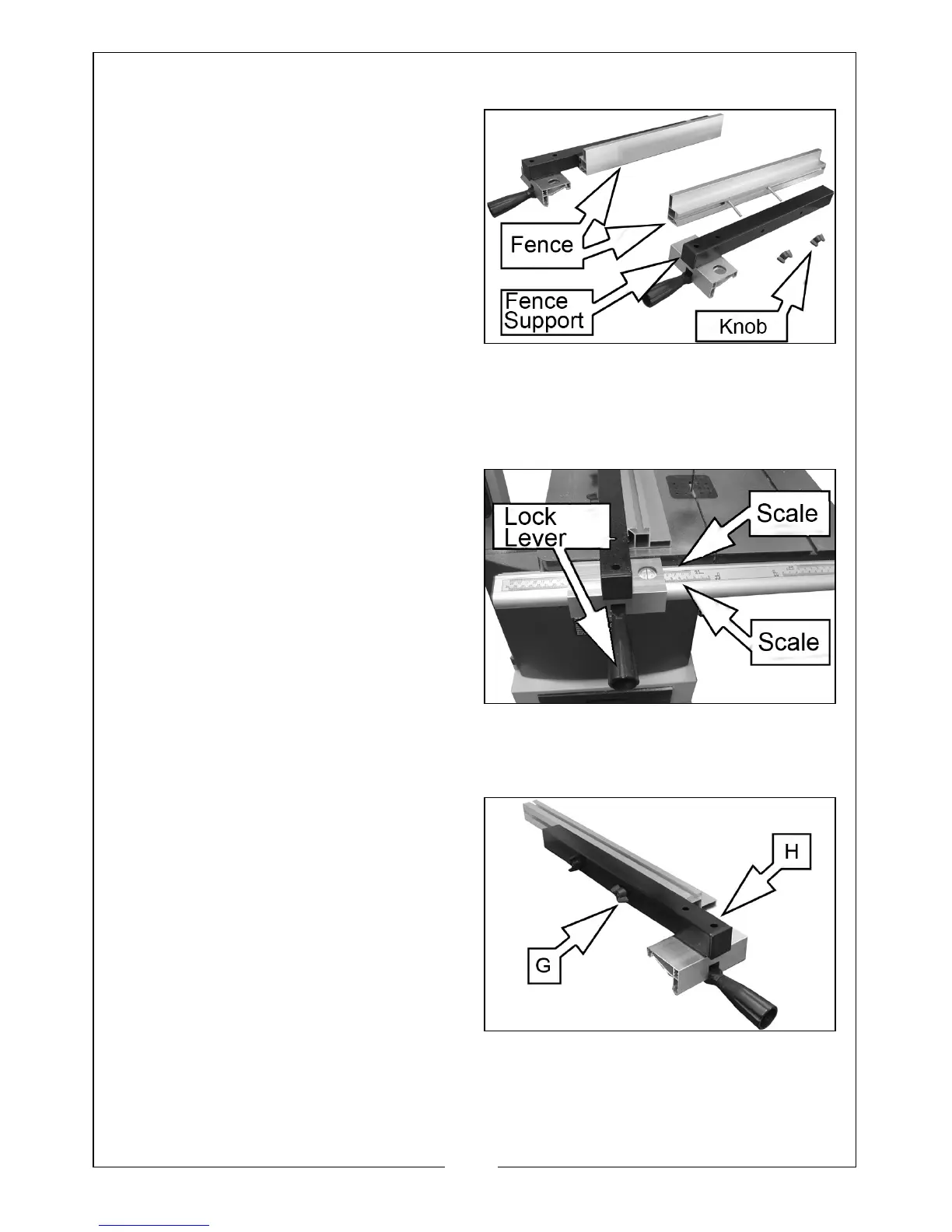

THE RIP FENCE
The rip fence can be used on both
sides of the blade. When the fence is
re-located from one side to the other,
it needs to be reversed as follows.
REVERSING THE FENCE
1. Loosen and remove the two
knobs.
2. Take off the fence with bolts and
retaining plate from the fence
support.
3. Re-fit the fence to the other side and replace the two knobs.
CLAMPING THE RIP FENCE
1. Place the rip fence over the guide
rail.
2. Move the fence to the required
position. The scale indicates the
distance from the saw blade to
the fence.
• Two scales are provided
according to whether the fence is
set vertically or horizontally as
described below.
3. Press down the lock lever to clamp the rip fence in position.
SETTING THE FENCE HEIGHT
The fence can be used in the upright
or laying down position. To re-fit the
fence to the fence support:
1. Loosen the two knobs (G).
2. Slide the fence out from the fence
support.
3. Rotate the fence 90
o
.
4. Insert the lock screw into the other
groove of the fence.
5. Re-tighten the two knobs (G).
