Clarke
®
Operator's Manual- CFP Polisher FORM NO. 70880A - 33 -
ASSEMBLY
Item Ref. No. Qty Description
1 21075A 1 Handle, Back
2 10687A 1 Module, Interlock
3 21074A 1 Handle, Front
4 71020A 1 Label, Handle
5 80284A 6 Screw, 10-32 x 3/4
6 61373A 1 Tube, Handle
7 40788A 1 Cord, 14/3 x 50’
[ ] 467504 1 Strain Relief
[ ] 47711A 2 Terminal FIFQD
8 50781A 1 Clamp, Handle
9 40789A 1 Cord, Interconnect
10 56109699 1 Cam Assy W/Grip NOTE 1
[ ] 441301 1 Bolt, Cam Lock
[ ] 461404 1 Cam, Locking
[ ] 53662A 1 Pin, Coiled
11 980349 1 Washer, Wear
12 920342 1 Nut, 3/8-16 ESNA
13 71168A 1 Label (CFP-130 120/60)
71021A 1 Label (CFP-170 120/60)
71022A 1 Label (CFP-170 230/50)
71023A 1 Label (CFP-1700 120/60)
71024A 1 Label (CFP-1700 230/50)
71427A 1 Label (CFP-1700DS 120/60)
71025A 1 Label (CFP-200 120/60)
71026A 1 Label (CFP-200 230/50)
71027A 1 Label (CFP-2000 120/60)
71429A 1 Label (CFP-2000 230/50)
71028A 1 Label (CFP-2000DS 120/60)
14 80290A 5 Screw, 10-32 x 3/8
Item Ref. No. Qty Description
15 80292A 2 Screw, 1/4-20 x 1
16 56201018 2 Wheel
17 980648 2 Washer, 17/32 x 1 1/16 Plain
18 80295A 2 Washer, Bowed
19 61741A 1 Link Arm-Right
20 61725A 1 Axle
21 61740A 1 Link Arm-Left
22
# 40761A 1 Motor 1HP (130, 170, 200) (120V/60Hz)
# 40762A 1 Motor .75KW 230/50 (170, 200) (230V/50Hz)
# 40763A 1 Motor 1.5HP (1700, 2000) (120V/60Hz)
# 40764A 1 Motor 1.5HP TS (1700DS, 2000DS) (120V/60Hz)
# 40765A 1 Motor 1.1KW 230/50 (1700, 2000) (230V/50Hz)
23 61716A 1 Drip Cover (CFP-130, 170, 200, 1700, 2000)
61717A 1 Drip Cover (CFP-1700DS, 2000DS)
24 21088A 1 Mainframe
25 73323A 1 Label, Motor Clarke
26 11364A 1 Hsg Brush Asm 13 (CFP-130)
11006A 1 Hsg Brush Asm 17 (CFP-170, 1700, 1700DS)
11007A 1 Hsg Brush Asm 20 (CFP-200, 2000)
27 80294A 4 Screw, 5/16 - 18
28 53833A 2 Pin, Split 1/2
29 80291A 1 Washer, Flat #10
[ ] 56380639 1 Decal-Prop 65
[ ] 30758A 1 Pad Driver* (CFP-130)
[ ]
# 56505910 1 Pad Holder-17 NP92 Clutch (CFP-170, 1700, 1700DS)
[ ]
# 56505920 1 Pad Holder-20 NP92 Clutch (CFP-200, 2000, 2000DS)
[ ] = Not Shown
# = Revised or new since last update
NOTE 1: The old handle assy consisting of the following parts (56057675, 441301) is no longer available. If you need to replace any of these components please
order 56109699.

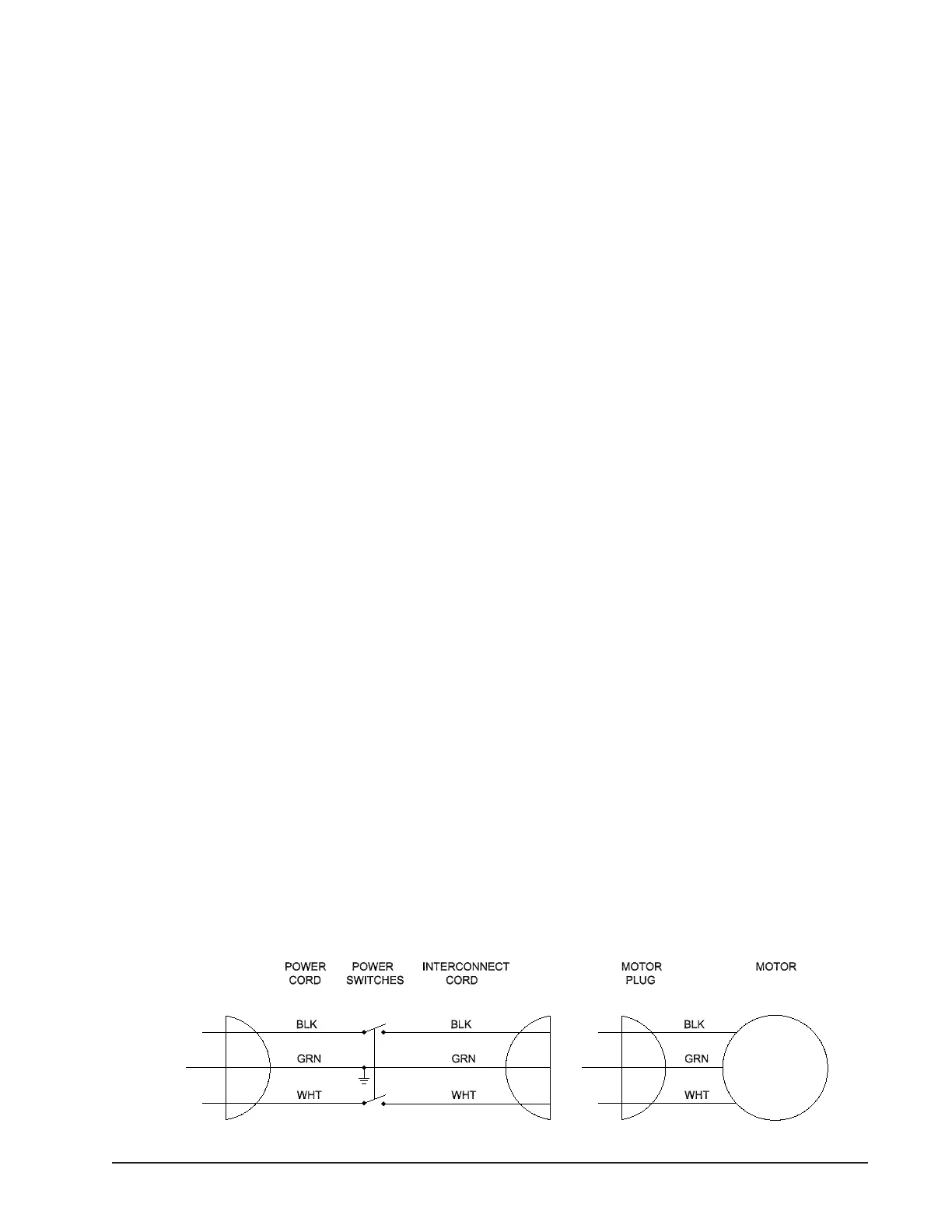

MACHINE SCHEMATIC
revised 11/13
