- 34 - FORM NO. 70880A Clarke
®
Operator's Manual- CFP Polisher
revised 11/13
Motor Assembly and Schematics [CFP-130,170, 1700, 200, 2000]
Item Ref. No. Qty Description
1# 40761A 1 Motor 1HP (130, 170, 200) (120V/60Hz)
*# 40694A 1 Start Capacitor
*# 40695A 1 Run Capacitor
*# 53190A 1 Start Switch
*# 40693A 1 Rotor 1HP 60HZ
*# 40697A 2 Covercapacitorblack
*# 40698A 1 End Shield Aluminum
*# 40699A 1 Coverwire Connection
*# 53195A 1 Centrifugal 4-Pole 60HZ
*# 70787A 1 Label Connection Diagram
*# 80274A 4 Boltthrough
*# 85303A 11 Screw 8-32 X 3/8 PN ST PH
*# 902550 1 Bearing Ball-6203
*# 80141A 6 Screw 10-32 X 1 Machine
*# 911177 2 Wire Nut 73B-Orange
*# 41053A 1 Cord 12 IEC 60320 C20 Plug
*# 747553 1 Strain ReliefSR7W2 CM20
*# 53645A 1 Gearbox 1HP
1# 40762A 1 Motor .75KW 230/50 (170, 200) (230V/50Hz)
*
# 40694A 1 Start Capacitor
*# 53190A 1 Start Switch
*# 40697A 2 Covercapacitorblack
*# 40698A 1 End Shield Aluminum
*# 40699A 1 Coverwire Connection
*# 70787A 1 Label Connection Diagram
*# 80274A 4 Boltthrough
*# 85303A 11 Screw 8-32 X 3/8 PN ST PH
*# 902550 1 Bearing Ball-6203
*# 80141A 6 Screw 10-32 X 1 Machine
*# 911177 3 Wire Nut 73B-Orange
*# 41053A 1 Cord 12 IEC 60320 C20 Plug
*# 747553 1 Strain ReliefSR7W2 CM20
*# 53645A 1 Gearbox 1HP
Item Ref. No. Qty Description
1
# 40763A 1 Motor 1.5HP (1700, 2000) (120V/60Hz)
*# 40694A 1 Start Capacitor
*# 53191A 1 Run Capacitor
*# 53190A 1 Start Switch
*# 53193A 1 Rotor Motor 1.5HP C2K
*# 53189A 1 Statormotor 1.5HP 120/240
*# 53360A 2 Covercapacitor C2K
*# 40698A 1 End Shield Aluminum
*# 40699A 1 Coverwire Connection
*# 53195A 1 Centrifugal 4-Pole 60HZ
*# 70787A 1 Label Connection Diagram
*# 85303A 11 Screw 8-32 X 3/8 PN ST PH
*# 902550 1 Bearing Ball-6203
*# 80141A 6 Screw 10-32 X 1 Machine
*# 911177 2 Wire Nut 73B-Orange
*# 41053A 1 Cord 12 IEC 60320 C20 Plug
*
# 747553 1 Strain ReliefSR7W2 CM20
*
# 53646A 1 Gearbox 1.5HP
1# 40765A 1 Motor 1.1KW 230/50 (1700, 2000) (230V/50Hz)
*# 40694A 1 Start Capacitor
*# 53190A 1 Start Switch
*
# 53360A 2 Covercapacitor C2K
*
# 40698A 1 End Shield Aluminum
*# 40699A 1 Coverwire Connection
*# 70787A 1 Label Connection Diagram
*# 85303A 11 Screw 8-32 X 3/8 PN ST PH
*
# 902550 1 Bearing Ball-6203
*
# 80141A 6 Screw 10-32 X 1 Machine
*# 911177 3 Wire Nut 73B-Orange
*# 41053A 1 Cord 12 IEC 60320 C20 Plug
*# 747553 1 Strain ReliefSR7W2 CM20
*
# 53646A 1 Gearbox 1.5HP
# = Revised or new since last update

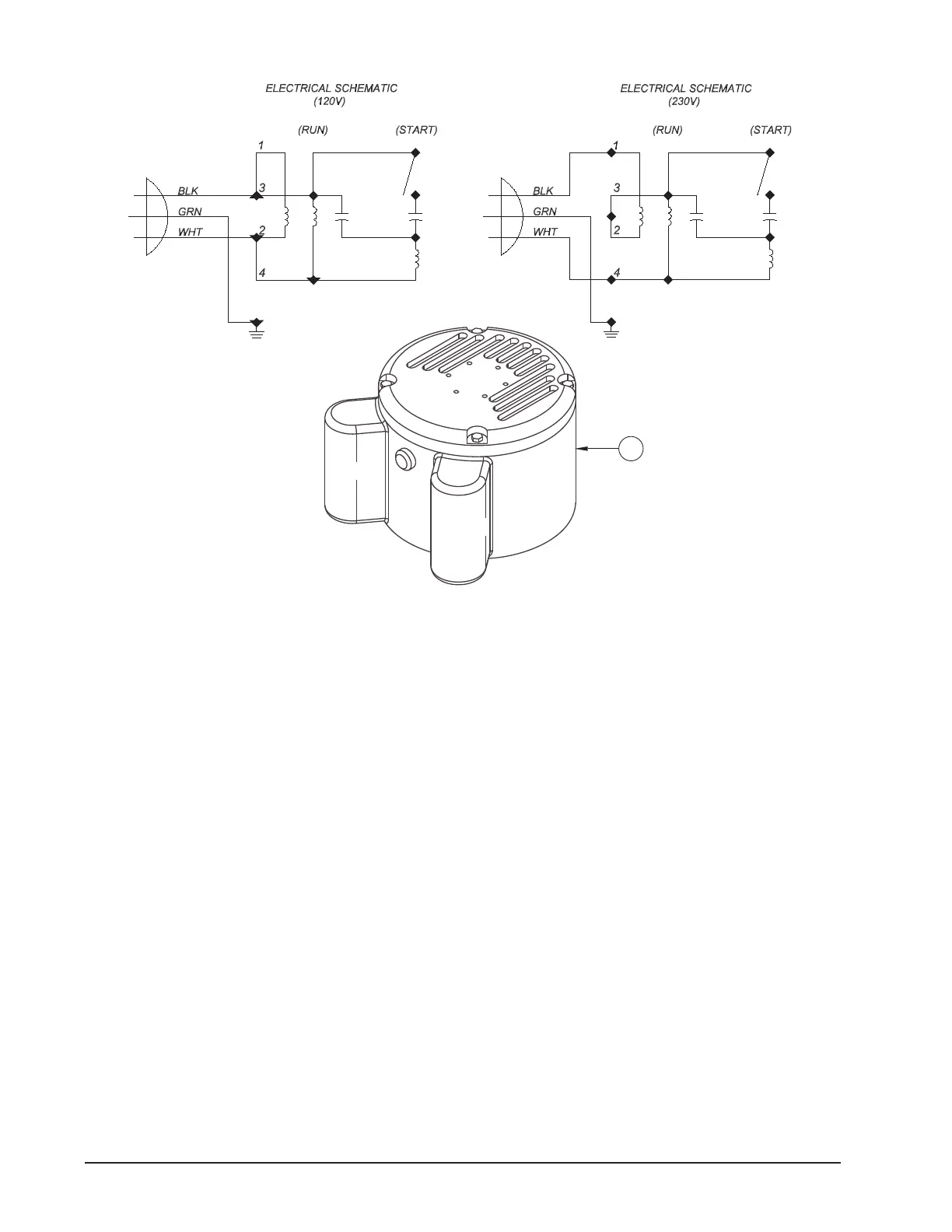

RUN
START
1
