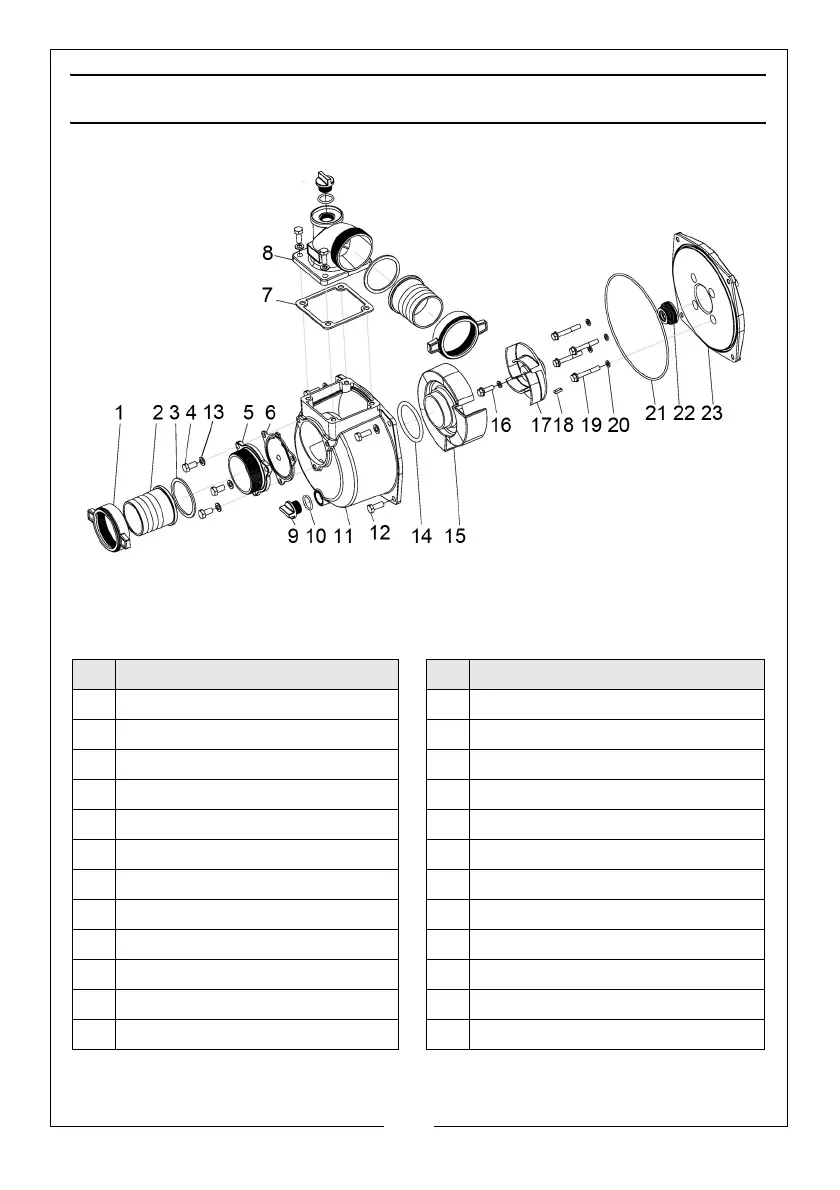

COMPONENT PARTS - PUMP ASSEMBLY
No Description No Description
1 Locking Collar 13 Washer
2 Hose Adaptor 14 O-Ring
3 Sealing Ring 15 Guide Flow Cover
4 Bolt M8 x 20 16 M8 x 25 Bolt
5 Water Inlet Flange 17 Pump Impeller
6 Check Valve 18 Flat Key
7Gasket 19Bolt M8 x 45
8 Discharge Elbow 20 Sealing Ring
9Drain Plug 21O-Ring
10 O-Ring 22 Water Seal
11 Pump Casing 23 Joining Flange
12 Flange Bolt M8 x 25
To Next Page
