English

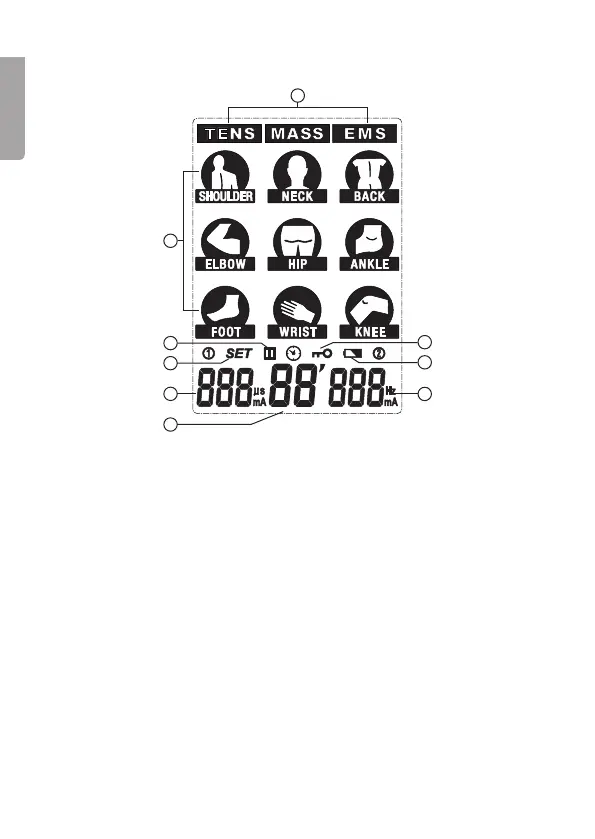

4. Display
17. TENS, MASS or EMS shows the chosen treatment.
18. Treatment area on the body: Shoulder, neck, back, elbow, hip, ankle, foot,
wrist and knee. (Does NOT show where the electrode pads should be
placed on the body).
19. Pause indicator
20. Settings mode symbol
21. Pulse duration and intensity for channel 1.
22. Treatment duration
23. Pulse frequency and intensity for channel 2.
24. Battery charge status indicator.
25. The intensity level keypad lock is activated.
Note: If the electrode pads are not attached to the skin, the intensity can only
be adjusted up to 9, at 10 the machine returns to 0 again.
When the electrode pads are attached to the skin, the intensity can be
adjusted between 0 and maximum value.
17
18
19
25
24
23
20
21
22
