Section 1 - Furnace Installation
Direct Circulation Baseboard Installation
Baseboard heaters, as either the main source of heat or
as supplements to forced-air or boiler applications are
easily plumbed into the water lines from the outdoor
furnace.

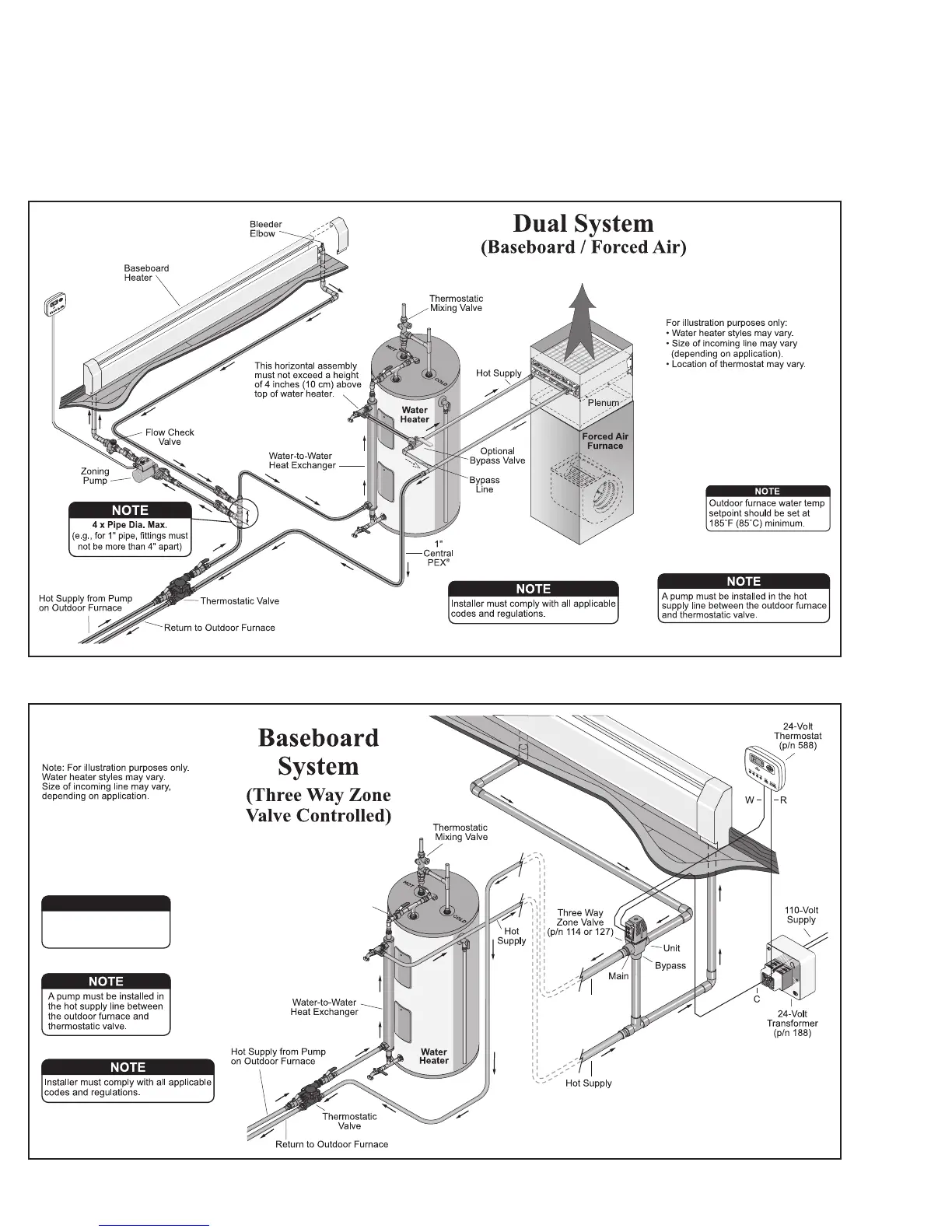

Fig. 31 and 32 illustrate direct circulation baseboard
installation examples.
Fig. 31
Return to
Outdoor Furnace
This horizontal assembly
must not exceed a height
of 4 inches (10 cm) above
top of water heater.
NOTE
Outdoor furnace water temp
setpoint should be set at
185˚F (85˚C) minimum.
Fig. 32
