Clear-Com CS-100 User Manual

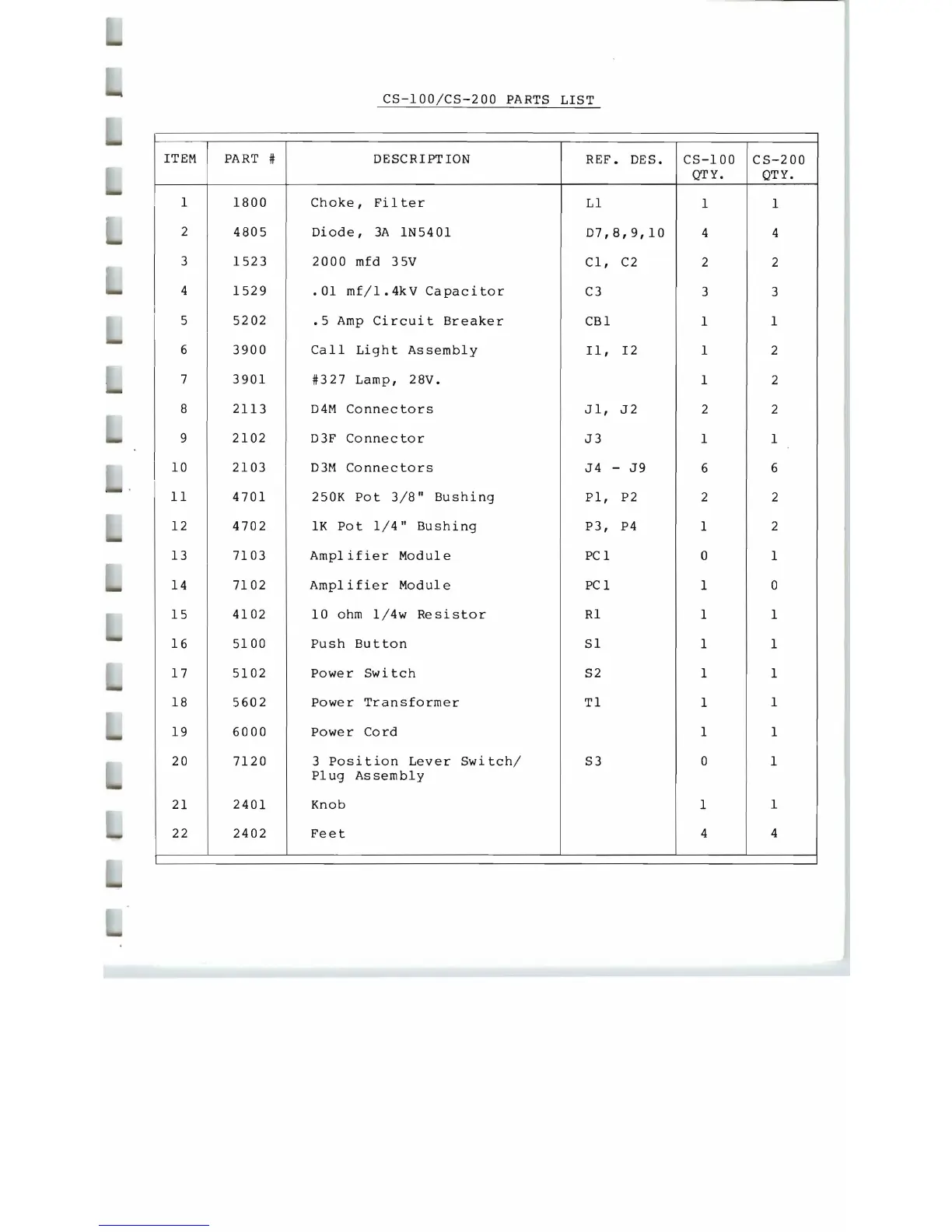

CS-I00/CS-200 PARTS LIST
ITEM
PART #
DESCRIPTION
REF.
DES. CS-I00
CS-200
\1fY. QTY.
1
1800
Choke,
Fi 1 ter
Ll
1 1
2
4805 Diode,
3A
IN5401
07,8,9,10
4 4
3
1523
2000 mfd
35V
Cl, C2
2 2
4
1529
.01 mf/l.4kV
Capaci tor
C3
3
3
I
5 5202
.5 Amp Circuit Breaker
CBl
1
1
6
3900 Call Light Assembly
II,
12
2
1
3901
7
#327
Lamp, 28V.
1 2
8
2113
04M
Connectors
J 1, J2 2 2
2102
9
03F Connector
J3
1 1
2103
10
D3r1
Connectors
J4 - J9
6 6
11 250K Pot
3/8 "
Bushing
4701 PI, P2 2 2
12 4702 lK Pot 1/4" Bushing
P3,
P4
2
1
7103 Amplifier
Modul e 13 PCl 0
1
14 71 02 Amplifier Modul e PCl 0
1
4102 10 ohm 1/4w Re si stor Rl
15 1 1
5100 Push Button Sl
16
1 1
S2
17 5102 Power Swi tch 1
1
Power
Transformer
18 5602 Tl
1
1
6000 Power Cord
19 1 1
20 3 Position Lever
Swi tch/
S3 0
7120 1
Plug Assembly
2401
1
21 Knob
1
2402 4 4
22 Feet

Clear-Com CS-100 Specifications

General

frequency response	250 Hz - 10 KHz (-3 dB ref. to 1 KHz)
headset microphone input level	-55 dBm
headphone output level	9 volts rms into 600 Jl
distortion	Less than 0.5%
system impedance and level	Approximately -25 dBm into 200
auxiliary input audio level	100 mv into 600 Jl
channel separation (CS-200)	> 45 dB
headset input connector	2 - 4 pin connectors (D4M)
interconnect output connectors CS-100	6 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel A	3 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel B	3 each in parallel, Switchcraft D3M
auxiliary input connector	Switchcraft D3M
power supply	28 volts circuit breaker protected
power requirements	115/230 volts 50-60 Hz. 80 watts maximum
capacity	Will support up to 40 RS-100A or MR-102 remote stations or 15 KB-100 or KB-lll remote stations

Weight and Dimensions

dimensions CS-100/CS-200	9.5"L X 4"H X 8.5"D
dimensions CS-100K/CS-200K	19"L X 3.5"H X 9.125"D
weight CS-100/CS-200	6 lbs. 14 oz.
weight CS-100K/CS-200K	6 lbs. 15 oz.
