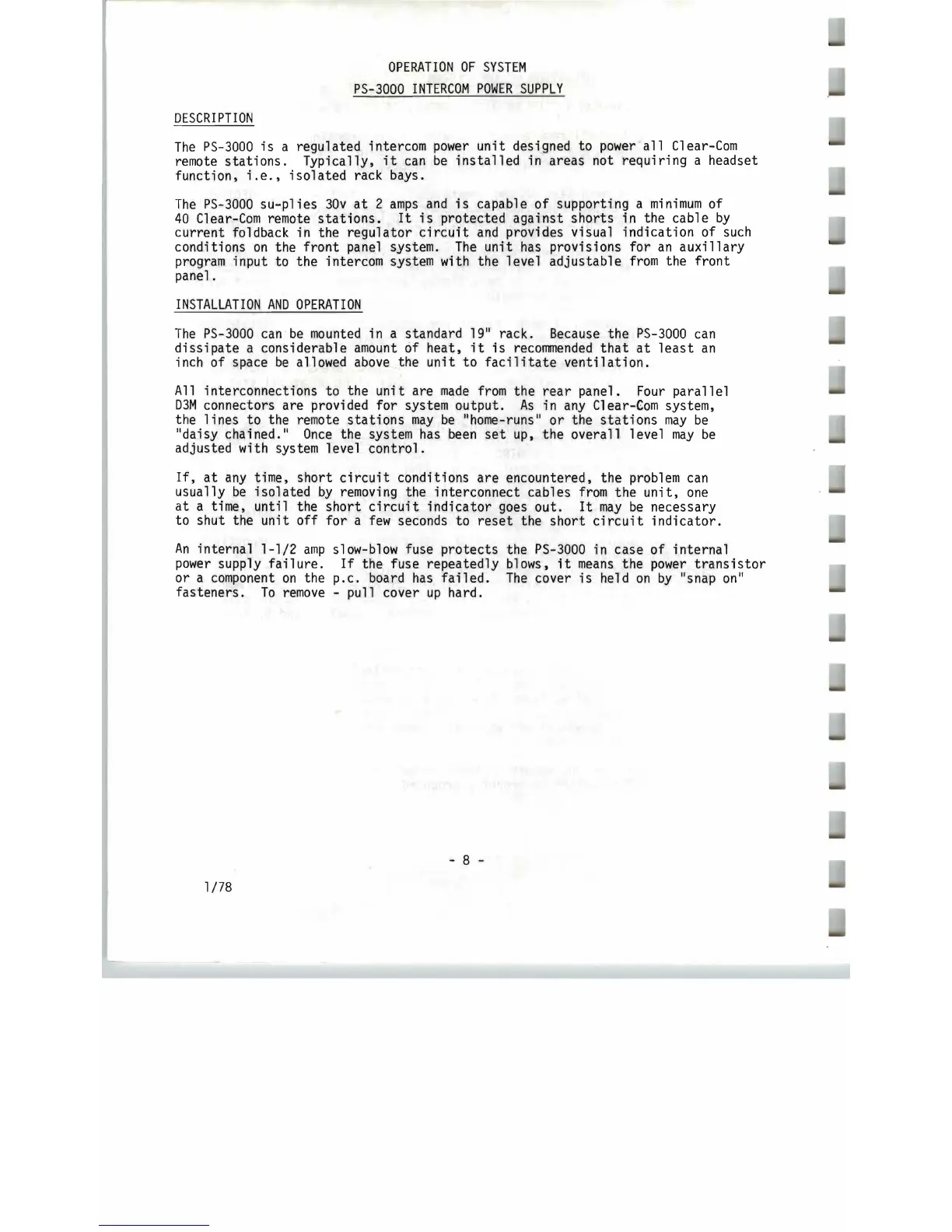

OPERATION
OF
SYSTEM
PS-3000
INTERCOM
POWER
SUPPLY
DESCRIPTION
The
PS-3000
is
a regulated intercom
power
unit
designed to
power
all
Clear-Com
remote
stations.
Typically,
it
can
be
installed
in areas not
requiring
a headset
function,
i.e.,
isolated
rack bays.
The
PS-3000
su-plies
30v
at
2
amps
and
is
capable
of
supporting a
minimum
of
40
Clear-Com
remote
stations.
It
is
protected
against
shorts
in the cable
by
current
foldback in the
regulator
circuit
and
provides visual
indication
of
such
conditions
on
the
front
panel system. The
unit
has
provisions
for
an
auxillary
program
input to the intercom system with the level
adjustable
from
the
front
panel.
INSTALLATION'
AND
OPERATION
The
PS-3000
can
be
mounted
in a standard
19"
rack. Because the
PS-3000
can
dissipate
a considerable
amount
of
heat,
it
is
,r
ecommended
that
at
least
an
inch of space
be
allowed
above
the
unit
to
facilitate
ventilation.
All
interconnections to the
unit
are
made
from
the
rear
panel.
Four
parallel
D3M
connectors are provided
for
system output.
As
in
any
Clear-Com
system,
the
lines
to
the remote
stations
may
be
"home-runs"
or
the
stations
may
be
"daisy chained."
Once
the system
has
been
set
up, the overall level
may
be
adjusted with system level
control.
If,
at
any
time,
short
circuit
conditions
are
encountered, the problem
can
usually
be
isollated
by
removing
the interconnect cables
from
the
unit,
one
at
a time, until the
short
circuit
indicator
goes out.
It
may
be
necessary
to shut the
unit
off
for
a
few
seconds
to
reset
the
short
circuit
indicator.
An
internal
1-1/2
amp
slow-blow fuse
protects
the
PS-3000
in case of
internal
power
supply
failure.
If
the fuse repeatedly
blows,
it
means
the
power
transistor
or a
component
on
the
p.c.
board
has
failed.
The
cover
is
held
on
by
"snap
on"
fasteners.
To
remove
- pull cover
up
hard.
- 8 -
1/78
